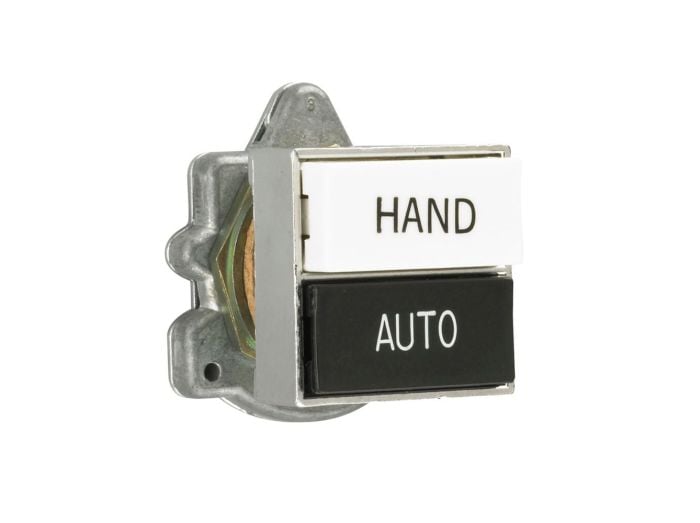

Eaton E30KB800 Pushbutton E30 Series 30.5 mm

Product Description

The Eaton E30KB800 is an industrial pushbutton from Eaton’s E30 line, featuring a square, multi-function operator. It conveniently mounts in a standard 30.5 mm diameter panel hole. It is ideally suited for use on control consoles and for a variety of industrial OEM applications. The actuator is orange with a blank legend and 3/16 inch high letter size.

• Colorfast, wear-resistant, molded acetal resin
• Legend characters 3/16 in (4.8 mm) high
• Type E30 control units consist of a basic operator with one or more buttons and lenses and contact block selection dependent on the specific operator configuration.

Product Highlights

The E30KB800 pushbutton operators will accommodate up to four single depth stackable contact blocks behind each operating button, up to eight circuits maximum.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E30KB800
• Country of Origin: US

Technical Specifications

• Series: E30
• Size: 30.5 mm
• NEMA Rating: NEMA 3/3R/4/4X/12/13
• Shape: Squared
• Legend: Blank
• Material: Molded Acetyl Resin
• Component: Push Button
• Manufacturer: Eaton
• Push Button Type: Type B - Extended
• Item: Pushbutton
• Actuator Type: Type B, Extended
• For Use With: Pushbutton, Square Multifunction
• Height: 0.3"
• Length: 5"
• Letter Type: High
• Notes: Use With E30AB Through AE, AL, And DA Through DF Operators
• Type: 30.5 mm, Square Multifunction Watertight/Oiltight
• Width: 4"
• Manufacturer Part Number: E30KB800
• Family Series: Eaton Switches
• Net Weight: 0.1 lbs
• Gross Weight: 0.1 lbs
• Actuator Color: Orange
