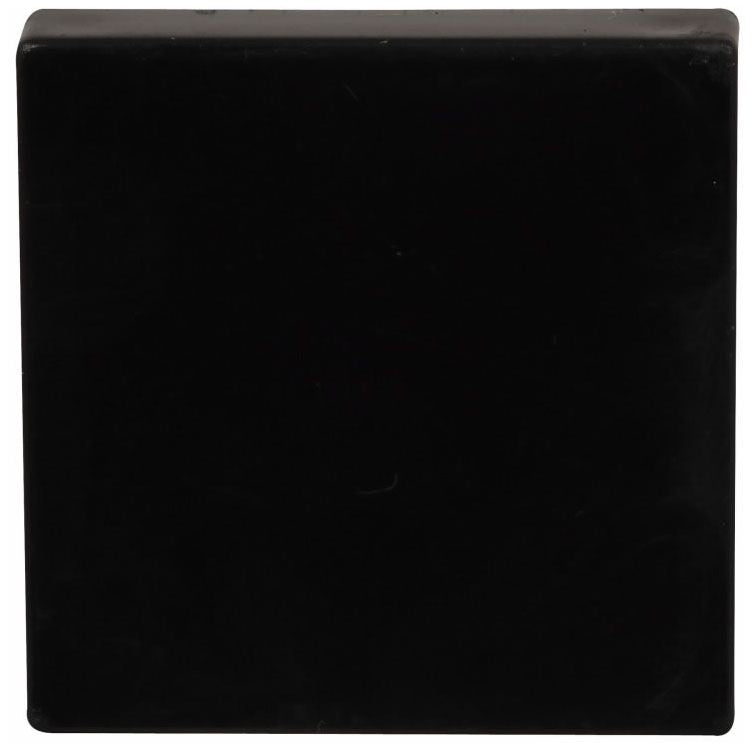

Eaton E30KA100 Extended Button Operator

Product Description

The EATON E30KA100 is an extended button operator designed for use with 30mm pushbutton control stations. It serves as the actuator component — the part a technician or operator physically presses to trigger a control circuit. Extended button operators provide a larger contact surface and increased travel depth compared to standard flush or mushroom styles, making them well suited for panel environments where reliable, deliberate actuation is required. Licensed electricians and industrial controls technicians install and service these operators as part of control panel builds or field replacements.

This operator is intended for use in industrial and commercial control panel applications. It fits into the 30mm mounting cutout standard used across EATON E30 series pushbutton stations. Typical installations include motor control centers, machine control panels, and operator interface stations where a durable, positive-feel pushbutton action is specified. The extended profile suits applications where operators need tactile confirmation of actuation.

Key Features

• Extended button profile provides increased actuation surface and tactile feedback
• Designed for 30mm pushbutton station cutouts
• Part of the EATON E30 series operator lineup for straightforward component sourcing
• Lightweight construction suitable for panel door and enclosure mounting

Compatibility

Designed as an OEM-style replacement or new-build component for EATON E30 series 30mm pushbutton control stations.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with NEC requirements. De-energize and lock out the control panel before removing or installing any operator component. The button operator mounts into a standard 30mm panel cutout and secures to the contact block or station body per the station assembly instructions. Do not force the operator into the cutout if resistance is felt — verify the cutout diameter and station body compatibility before installation.

Technical Specifications

• Weight: 0.01 pounds
• UPC: 78211321529

Standard Information

• Brand: EATON
• Manufacturer Part Number: E30KA100
