Eaton E30JX23 2d Btn Ma 2k Lens 24 Acdc Pushbutton Operator

Product Description

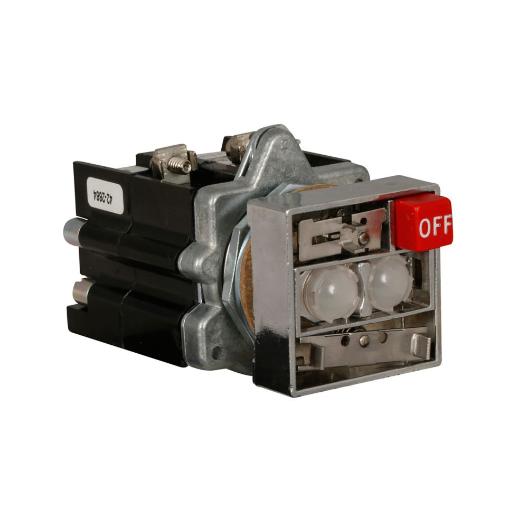

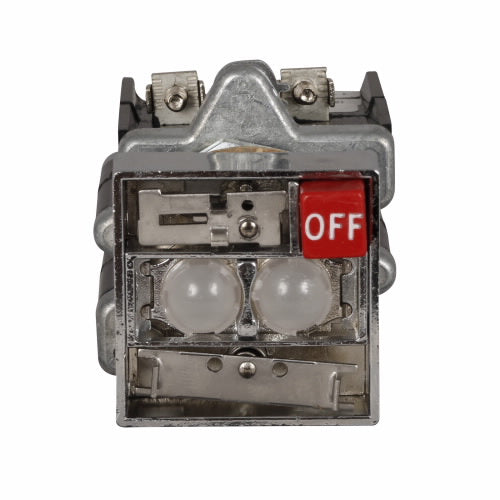

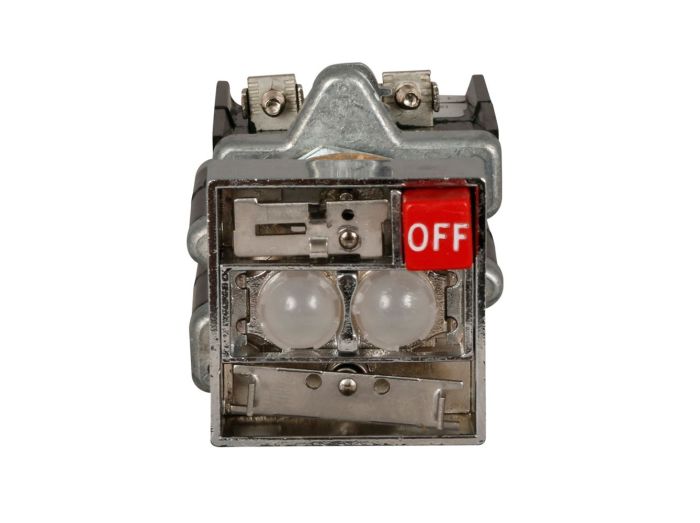

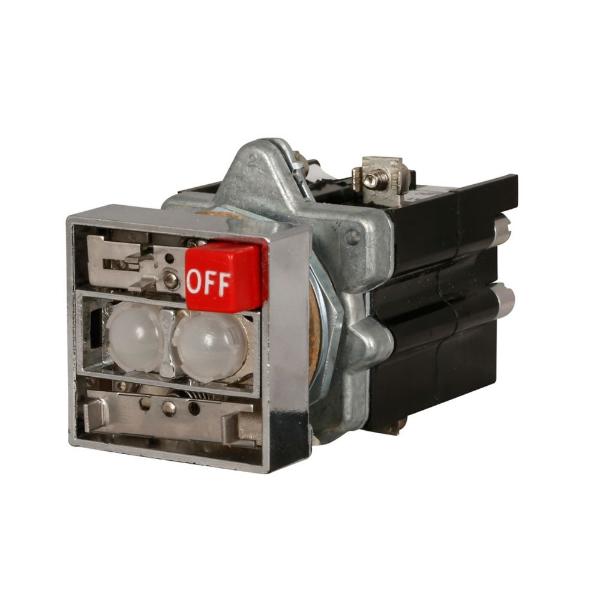

The Eaton E30JX23 is a 30.5 mm pushbutton operator with a 2D BTN MA 2K lens, designed for 24 ACDC operation. It features a square multifunction design and is suitable for various applications. It is an illuminated, maintained (top/bottom) two-button operator with (OFF) release bars for each button and an incandescent, full voltage light unit.

• 30.5 mm square multifunction design
• Illuminated with incandescent light unit
• Maintained two-button operation with release bars

Product Highlights

The EATON E30JX23 pushbutton operator is ideal for industrial applications requiring a robust and reliable illuminated control switch.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E30JX23
• Country of Origin: United States

Technical Specifications

• Alternate Mfr Part Number: E30JX23
• Brand: Eaton - Cutler Hammer
• Manufacturer Part Number: E30JX23
• Numeric ID: 3882618
• MPN: E30JX23
• UPC: NA
• Country of Origin: United States
• Manufacturer: Eaton
• Family Series: Eaton Switches
• Type: Button Operator
• Net Weight: 0.25 lbs
• Gross Weight: 0.25 lbs
• Item: Pushbutton Operator
• Actuator: Two button, (OFF) release bars for each button
• Illumination: Illuminated
• Led Lamp Number: 24PSB
• Light Unit Type: Incandescent, Full Voltage
• Light Unit Voltage: 18-24V AC/DC
• Nema Enclosure Rating: NEMA 3 NEMA 3R NEMA 12 NEMA 13 NEMA 4
• Notes: Light Unit Will Also Accept LED Lamp. Operator Is Supplied As Standard With Red Extended Release Bar Marked (Off). Dual Indicating Lights.
• Operating Mode: Top: maintained Bottom: maintained
• Product Type: Square Multifunction Push Button
• Series: E30
• Voltage Rating: 18 V ac/dc;24 V ac/dc
• Lamp Type: Incandescent
• Mounting Type: Panel Mount
• NEMA Rating: NEMA Type 3, 3R, 4, 4X, 12, 13
• Panel Cutout Size: 30.5mm
• Standards Met: UL Listed;CSA Certified
