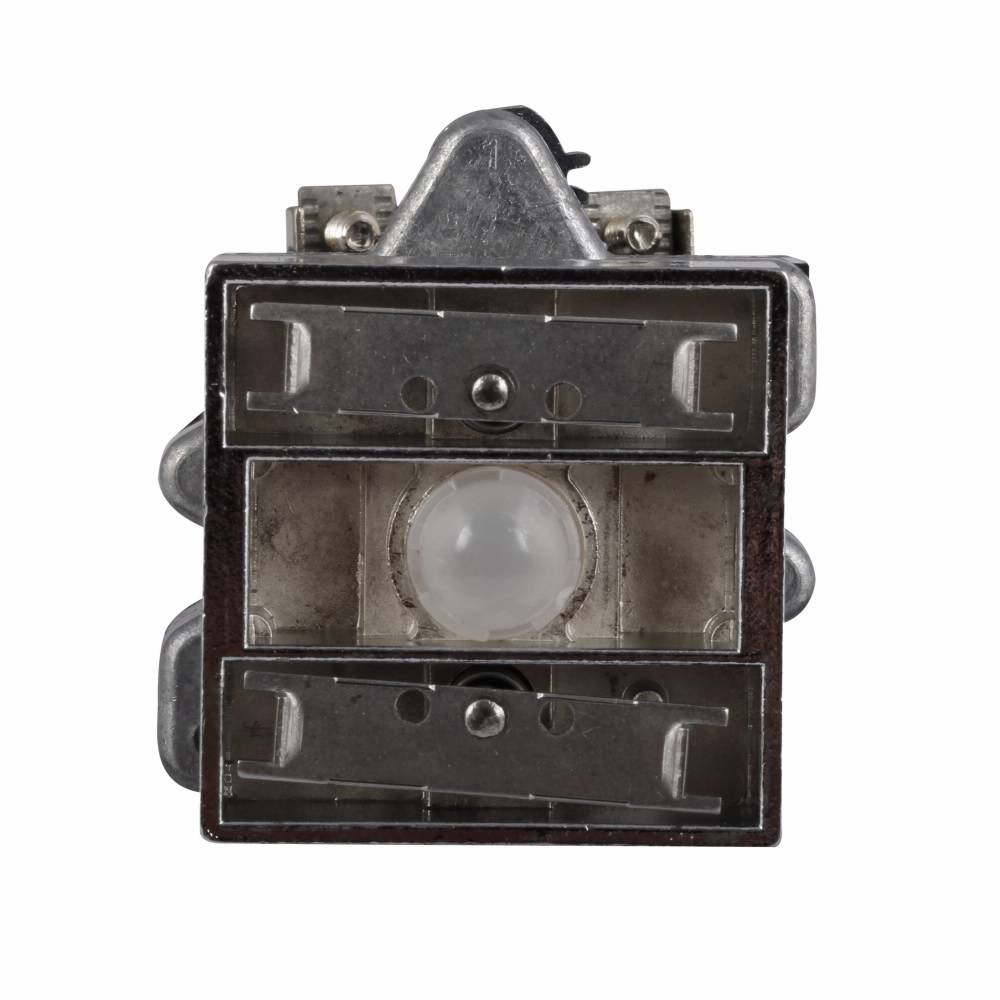

Eaton e30ex3 Illuminated Pushbutton Operator 30.5 Mm

Product Description

The EATON e30ex3 is a full-voltage, illuminated, multi-function pushbutton operator designed for industrial control panel applications. Built on the E30 platform, it mounts in a standard 30.5 mm diameter panel cutout and features a square 2-button operator head with momentary contact action. The illuminated design provides clear visual feedback at the operator station. Up to six input and indicating functions can be grouped into a single operating head, making this operator well suited for dense panel layouts where space is a priority. Licensed electricians and industrial controls technicians are the primary installers.

The e30ex3 is intended for industrial control consoles, machine control panels, and OEM equipment enclosures requiring a compact, multi-function operator. The square operator styling and support for colored buttons and lenses allow for visual differentiation between control functions on the same panel. It is appropriate for both original equipment manufacturing builds and field replacement installations in light and heavy industrial environments.

Key Features

• Mounts in a standard 30.5 mm diameter panel hole for broad enclosure compatibility
• Square 2-button operator head consolidates multiple functions in a single cutout
• Illuminated operator provides visual status indication at the control point
• Momentary contact action suited for start, stop, and command-trigger functions
• Supports up to 6 input and indicating functions grouped in one operating head
• Compatible with colored buttons, lenses, and special function accessories for custom panel layouts

Compatibility

Designed as an OEM-style replacement or new-installation operator for industrial control panels using standard 30.5 mm diameter panel cutouts within the E30 pushbutton and indicating light product line.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements and local codes. De-energize and lock out the control panel before mounting or wiring the operator. Verify that the panel cutout diameter matches the 30.5 mm mounting requirement before installation. Do not exceed the operator voltage and current ratings when wiring contact blocks.

Technical Specifications

• Mounting Hole Diameter: 30.5 mm
• Operator Shape: Square
• Number of Buttons: 2
• Contact Action: Momentary
• Illumination: Yes
• Voltage Type: Full Voltage

Standard Information

• Brand: EATON
• Manufacturer Part Number: e30ex3
