Eaton E30EX2 Square Pushbutton/Indicating Light Operator 12VAC/DC

Product Description

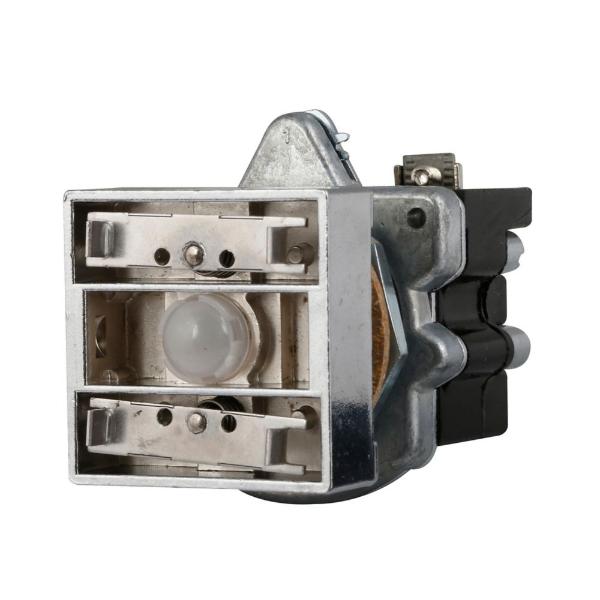

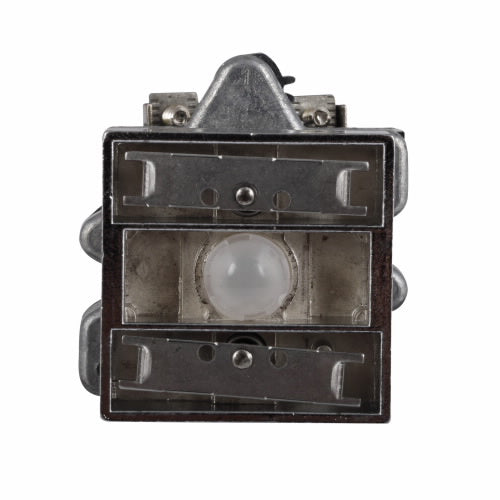

The EATON E30EX2 is a square pushbutton/indicating light operator. This 30.5 mm operator is NEMA rated 3, 3R, 4, 12, and 13. It features two buttons in an E style, momentary operation, and one light with a J lens style. The lamp power source is full voltage, 12VAC/DC, and uses an incandescent lamp, number 12PSB.

• Illuminated
• Full Voltage Light Unit
• 12 VAC/DC Light Unit

Product Highlights

Square Pushbutton/Indicating Light Operator with momentary start and stop buttons.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E30EX2
• Country of Origin: Dominican Republic

Technical Specifications

• Type: Square Pushbutton/Indicating Light Operator
• Size: 30.5mm
• NEMA: 3, 3R, 4, 12, 13
• Number of Buttons: 2
• Button Style: E
• Operation: Momentary
• Number of Lights: 1
• Lens Style: J
• Lamp Power Source: Full Voltage, 12VAC/DC
• Lamp Type: Incandescent
• Lamp Number: 12PSB
• Item: Pushbutton Operator
• Actuator Type: Two button
• Illumination: Illuminated
• Length: 3.3"
• Light Unit Type: Incandescent, Full Voltage
• Light Unit Voltage: 12V AC/DC
• Nema Enclosure Rating: NEMA 12 NEMA 13 NEMA 4 NEMA 3 NEMA 3R
• Notes: Light Unit Will Also Accept LED Lamp
• Operating Mode: Bottom: momentary Top: momentary
• Model: E30EX2
• MPN: E30EX2
• Brand: Cutler-Hammer
