Eaton E30ED Operator E30 Series 30.5 mm

Product Description

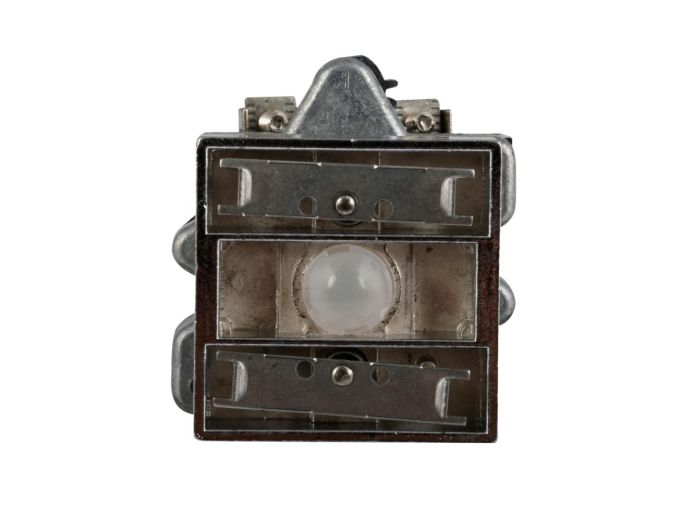

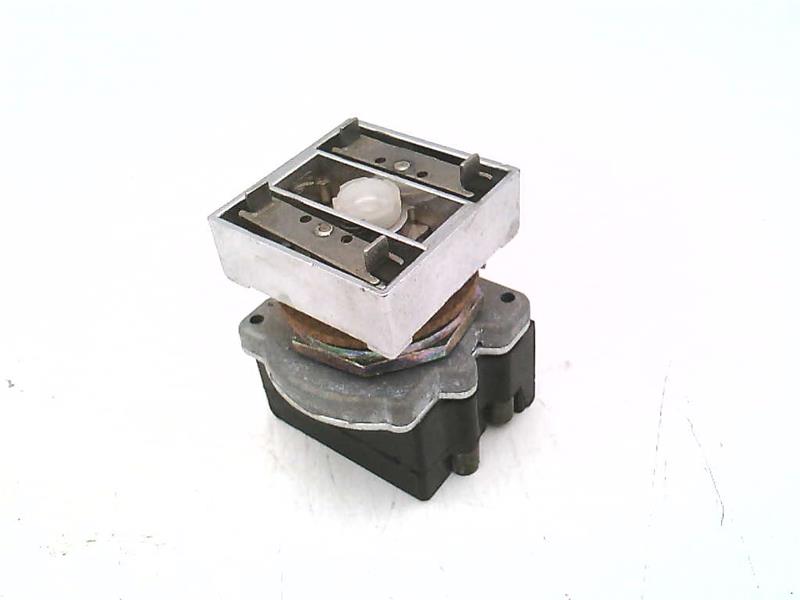

The Eaton E30ED is an E30 series, 30.5 mm square multifunction operator. It features NEMA 3, 3R, 4, 12, and 13 ratings and is illuminated with a momentary top and bottom two-button design. Includes an incandescent transformer light unit operating at 480 Vac.

• Accommodates up to four single depth stackable contact blocks behind each operating button, up to eight circuits maximum.
• Indicating lights are supplied complete with either a transformer light unit up to 600 Vac supply line voltage or full voltage light unit up to 120 Vac/Vdc supply line voltage.
• Die Cast Construction Each operator has high pressure type seals to prevent the passage of oil and other contaminants through the operator into the contact structure or panel interior.

Product Highlights

This Eaton E30ED operator is ideal for industrial automation, electrical panels, and OEM applications requiring a robust and reliable illuminated pushbutton.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E30ED
• Country of Origin: Dominican Republic

Technical Specifications

• NEMA Rating: NEMA 4
• Illumination: Illuminated
• AC Voltage: 480 VAC
• Sub Component: Push Button Operator
• Component: Accessories
• Manufacturer: Eaton
• Size: 30.5 mm
• Operation: Top: Momentary
• Push Button Type: Two Button
• Part #: E30ED
• Category: Pushbutton
• Manufacturer Part Number: E30ED
• Family Series: Eaton Switches
• Type: Button Operator
• Catalog Number: E30ED
• Brand: Eaton
• Country of Origin: Dominican Republic
• Made in USA: No
• Actuator: Two button
• Application: Elec Assemblies Panels EOEM - Electrical Assemblies Panels and EOEMs
• Standard: UL ListedCSA Certified
• UPC: 782113214597
• GTIN: 00782113214597
• Item Type: Pushbutton accessory
