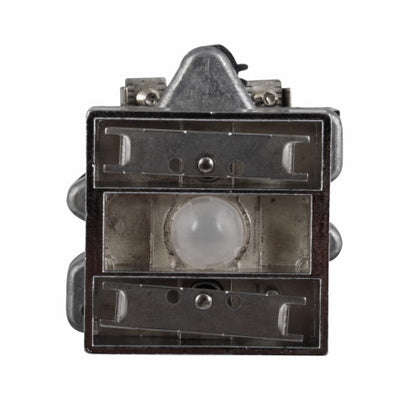

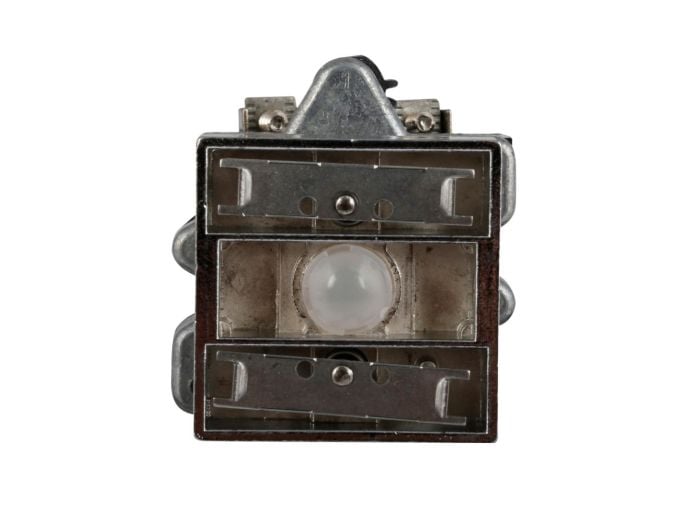

Eaton E30EB Multi-Function Square Illuminated Pushbutton Operator 30.5 mm

Product Description

The Eaton E30EB is a multi-function square illuminated pushbutton operator. Constructed from die-cast zinc, it prevents oil and contaminants from entering the contact structure. This 30.5 mm operator features a momentary contact mode, a 2-button configuration, and is designed for industrial and OEM applications. It uses an incandescent lamp and is suitable for NEMA 3/3R/4/12/13 enclosures.

• 6PSB lamp number
• Transformer type light unit
• Top and bottom momentary operating mode

Product Highlights

Square, multifunctional operators for industrial and OEM applications. Features die cast construction and custom legending.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E30EB

Technical Specifications

• Finish: Copper Nickel Polished Chrome
• UNSPSC: 39122216
• Material: Die Cast Zinc
• Lamp Type: Incandescent
• Application: Electrical Assemblies, Panels, OEMs, Automation and Logic Control Equipment Applications
• Operator Type: (2) Button
• Enclosure Type: NEMA 3/3R/4/12/13
• Voltage Rating: 240
• Temperature Rating: -20 to 150
• Size: 30.5 mm
• Type: Square Pushbutton/Indicating Light w/o Lens
• Series: E30
• NEMA: 3R, 4
• Number of Buttons: 2
• Button Style: E
• Operation: Momentary
• Number of Lights: 1
• Lens Style: J
• Lamp Power Source: Transformer, 240VAC
• Lamp Number: 6PSB
• Manufacturer Series: E30
• IP/NEMA Rating: NEMA 3R, NEMA 12, NEMA 4
• Manufacturer Part Number: E30EB
• Manufacturer: Eaton
• Family Series: Eaton Switches
• Description: E30, 30.5 mm, Square Multifunction, NEMA 3, 3R, 4, 12, 13, Illuminated, Momentary top and bottom, Two button, Incandescent, transformer light unit, 240 Vac light unit, 6PSB
• Net Weight: 0.4 lbs
• Gross Weight: 0.45 lbs
• Primary brand: Eaton
• Secondary brand: Cutler-Hammer
• Main function: Head
• Product series / family name: E30 series
• Functions: 30mm 2 x button momentary + 1 x ind. light (transformer)
• Supply voltage (AC): 240Vac
• Supply voltage (DC): 240Vdc
• Manufacturer product status: Commercialized
