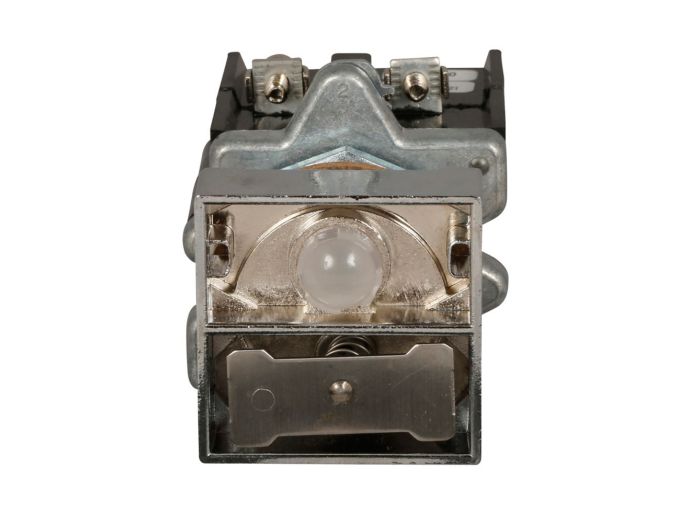

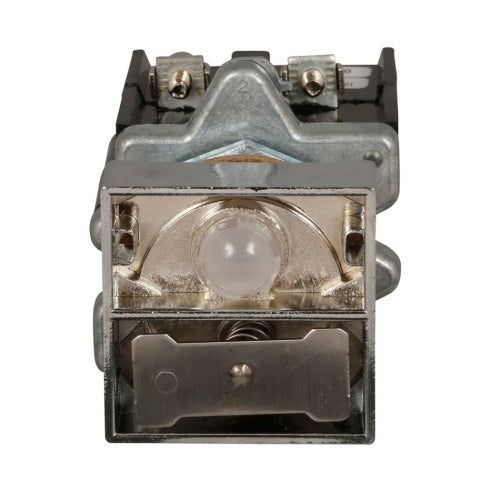

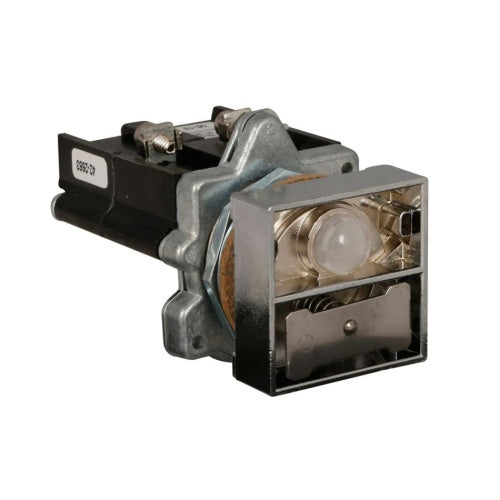

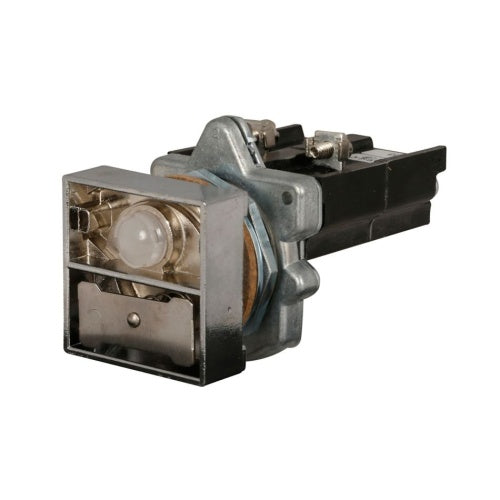

Eaton E30DX3 Multi-Function Square Illuminated Pushbutton Operator, 30.5 mm, (1) Button Operator, Momentary Contact

Product Description

The EATON E30DX3 is a multi-function square illuminated pushbutton operator. It features die cast construction to prevent the passing of oil and other contaminants. The E30 30.5 mm components are ideal for a variety of industrial and OEM applications.

• 24PSB LED lamp number
• Full voltage light unit
• Bottom button operation

Product Highlights

This square, multifunctional operator is suitable for electrical assemblies, panels and OEMs applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E30DX3

Technical Specifications

• Finish: Copper Nickel Polished Chrome
• UNSPSC: 39122216
• Material: Die Cast Zinc
• Lamp Type: Incandescent
• Application: Electrical Assemblies, Panels and OEMs Applications
• Operator Type: (1) Button
• Enclosure Type: NEMA 3/3R/4/12/13
• Voltage Rating: 18 VAC, 24 VDC
• Temperature Rating: -20 to 150
• Size: 30.5 mm
• Type: Multi-Function Square
• Series: E30
• Includes: Contact Block Mounting Adapter
• Mounting: Panel
• Shape: Square
• (Switching-Indication) NEMA Rating: NEMA 4
• (Switching-Indication) Illumination: Illuminated
• Sub Component: Push Button Operator
• Component: Accessories
• (Switching-Indication) Operation: Bottom: Momentary
• (Switching-Indication) DC Voltage: 18-24 VDC
• (Switching-Indication) AC Voltage: 18-24 VAC
• Number of Buttons: 1
• Button Style: B
• Operation: Momentary
• Number of Lights: 1
• Lens Style: G
• Lamp Power Source: Full Voltage, 24VAC/DC
• Lamp Number: 24PSB
• Manufacturer Series: E30
• Manufacturer Part Number: E30DX3
• Manufacturer: Eaton
• Family Series: Eaton Switches
• Net Weight: 0.3 lbs
• Gross Weight: 0.35 lbs
