Eaton e30dm Illuminated Pushbutton Operator 30.5 Mm

Product Description

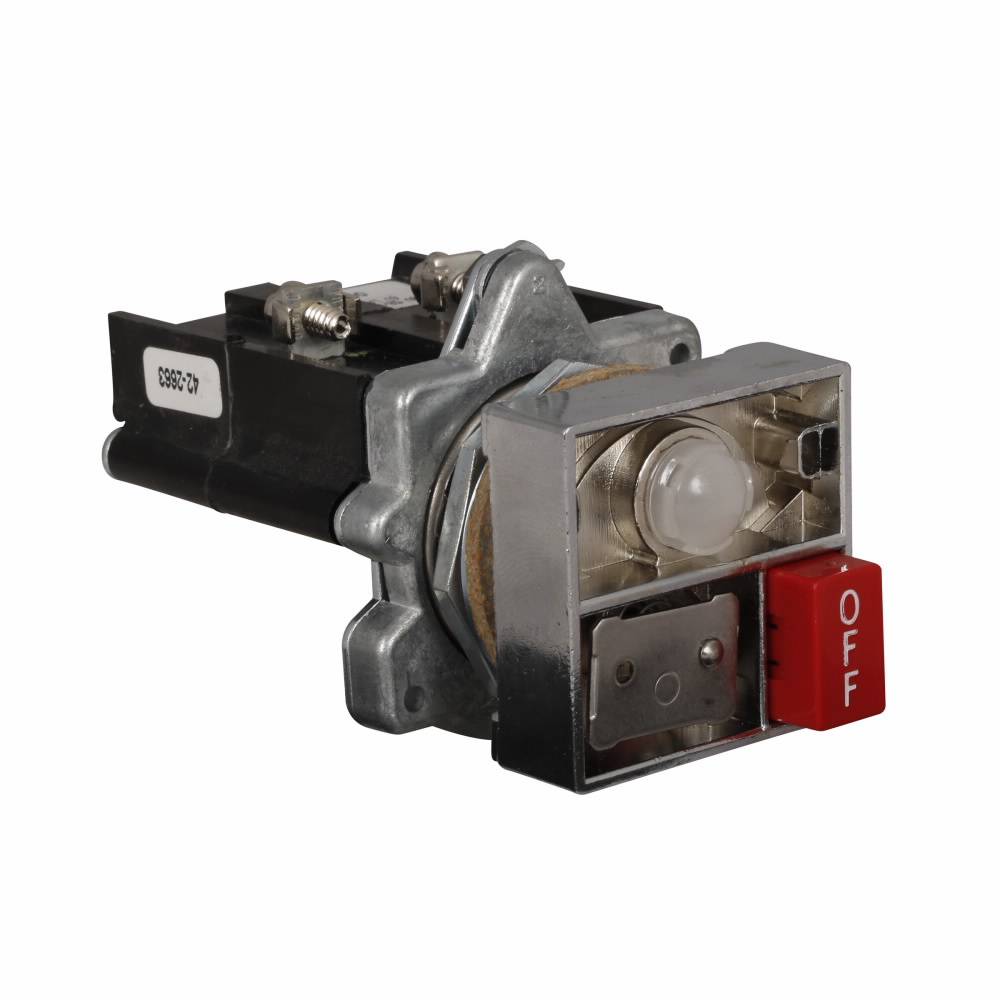

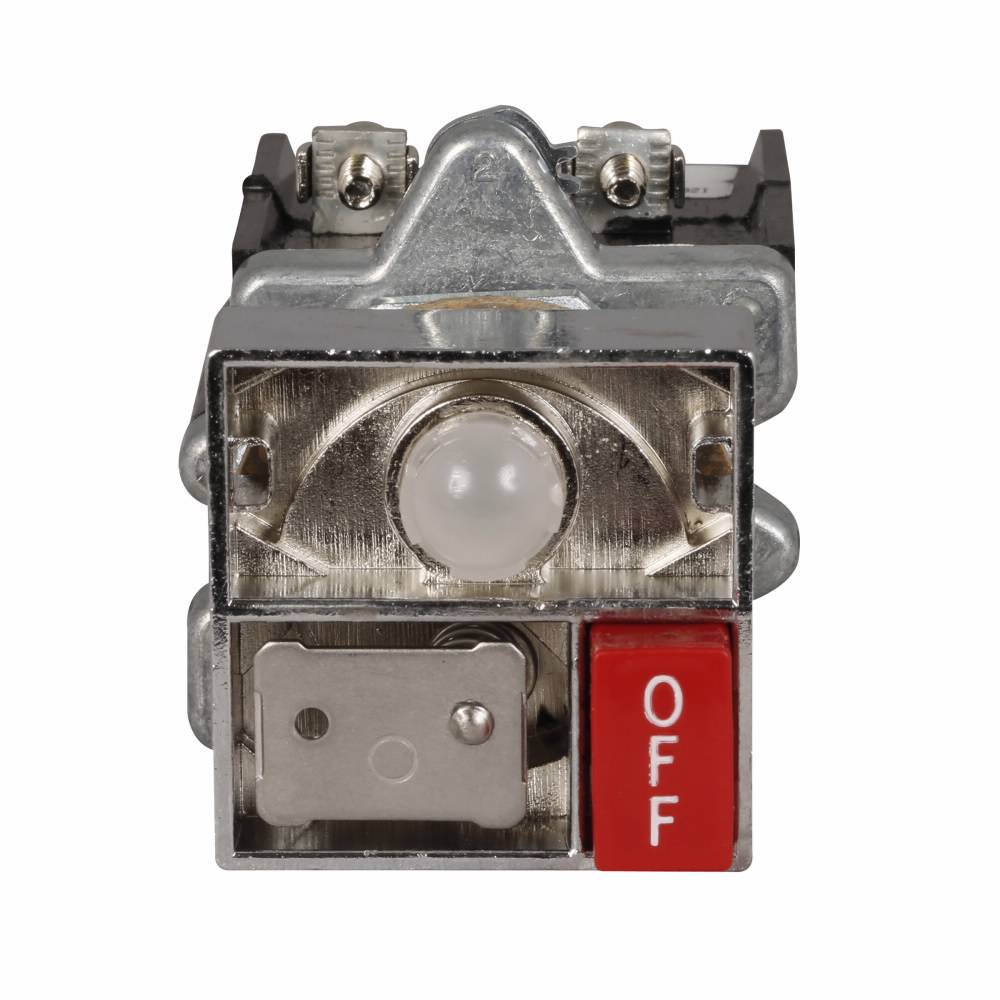

The EATON e30dm is a multi-function square illuminated pushbutton operator designed for industrial and commercial electrical control applications. Built around a 30.5 mm mounting footprint, it accepts a single button operator and uses an incandescent lamp for illumination. The operator is rated for 120 VAC/VDC and features momentary contact mode, making it well suited for start, stop, or signal inputs on control panels and automation assemblies. The die cast zinc body carries a copper nickel polished chrome finish, giving it durability in demanding panel environments. A licensed electrician or panel integrator is the typical installer.

The e30dm fits into electrical assemblies, control panels, OEM machine builds, and automation and logic control equipment. Its 30.5 mm industry-standard cutout size allows integration into new builds or direct replacement scenarios on existing panels. The NEMA 3, 3R, 4, 12, and 13 enclosure ratings make it appropriate for both indoor and outdoor panel applications where moisture, dust, or wash-down conditions are a factor. It operates across a temperature range of -20 to 150 degrees F, covering typical industrial and outdoor cabinet environments.

Key Features

• Momentary contact operation for start/stop or signal control inputs
• 120 VAC/VDC voltage rating for common control circuit compatibility
• Incandescent lamp illumination integrated into the operator
• NEMA 3/3R/4/12/13 enclosure ratings for wet, dusty, and indoor industrial environments
• Die cast zinc construction with copper nickel polished chrome finish for panel durability
• 30.5 mm mounting size aligns with standard industrial pushbutton cutouts

Compatibility

Designed for use in the EATON E30 Series and suited for electrical assemblies, control panels, OEM equipment builds, and automation and logic control equipment applications requiring a 30.5 mm illuminated pushbutton operator.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize and lock out the panel before mounting or wiring the operator. Verify that the control circuit voltage matches the 120 VAC/VDC rating of the unit before applying power. Standard panel punch or knockout tools sized for 30.5 mm openings are required for mounting.

Technical Specifications

• Series: E30
• Operator Type: Multi-Function Square, Single Button
• Contact Mode: Momentary
• Voltage Rating: 120 VAC/VDC
• Lamp Type: Incandescent
• Mounting Size: 30.5 mm
• Enclosure Rating: NEMA 3/3R/4/12/13
• Temperature Rating: -20 to 150 degrees F
• Material: Die Cast Zinc
• Finish: Copper Nickel Polished Chrome
• Warranty: 1 year

Standard Information

• Brand: EATON
• Manufacturer Part Number: e30dm
