Eaton E30DG Multifunction Pushbutton Operator 120 VAC

Product Description

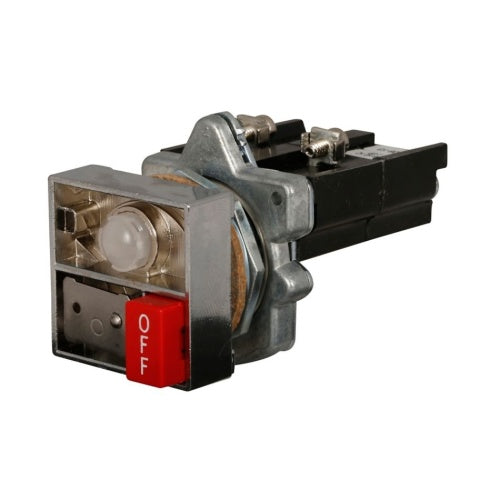

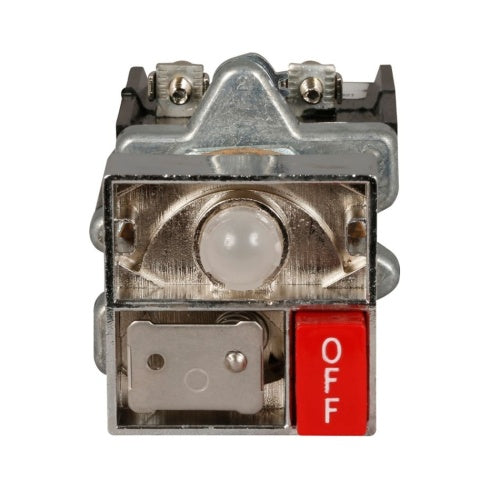

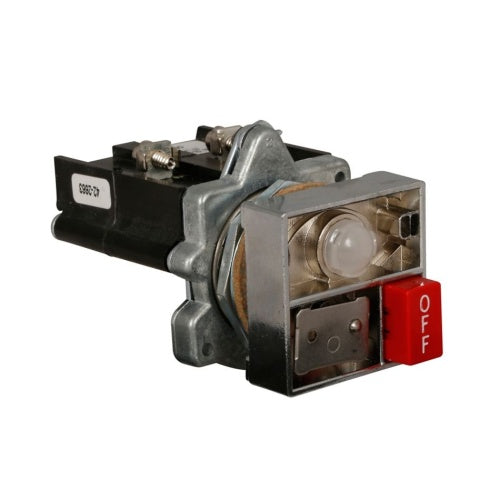

The EATON E30DG is a 30.5 mm square multifunction pushbutton operator. It features illumination, a single button, and an (off) release bar. Designed for momentary operation from the bottom, it includes an incandescent transformer and operates at 120 VAC. The E30 series is suitable for various industrial applications requiring reliable push-button control.

• Accommodates up to four single depth stackable contact blocks.
• Features high-pressure type seals to prevent oil and contaminant passage.
• Uses a Buna N cork gasket to maintain oiltightness.

Product Highlights

Multifunction pushbutton operator with illumination and momentary operation. Ideal for industrial applications requiring reliable push-button control.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E30DG

Technical Specifications

• IP/NEMA Rating: NEMA 3R, NEMA 12, NEMA 4
• (Switching-Indication) NEMA Rating: NEMA 4
• (Switching-Indication) Illumination: Illuminated
• (Switching-Indication) AC Voltage: 120 VAC
• Sub Component: Push Button Operator
• Component: Accessories
• Manufacturer: Eaton
• (Switching-Indication) Size: 30.5 mm
• (Switching-Indication) Operation: Bottom: Momentary
• (Switching-Indication) Push Button Type: Single Button - (Off) Release Bar
• Part #: E30DG
• Category: Pushbutton
• Weight: 1.00 lbs
• Primary brand: Eaton
• Secondary brand: Cutler-Hammer
• Main function: Head
• Product series / family name: E30 series
• Functions: 30mm multifunction head/operator - 2-elements 1 x plt lght (Type G cap) - Transformer 1 x OFF release bar btn. 1 x maintained btn. (Type C cap)
• Supply voltage (AC): 120Vac
• Shape: Square
• Operating mode: Stay-put (maintained / latched / bistable) spring-return (impulse / momentary)
• Degree of protection: IP65 NEMA 3 NEMA 3R NEMA 4 NEMA 4X NEMA 12 NEMA 13
• Manufacturer product status: Commercialized
• Compliant with standard(s): CE EN60947-5-1 EN60947-5-5 UL508 CSA
