Eaton E30CS Light Unit 2g Lens 28v ac

Product Description

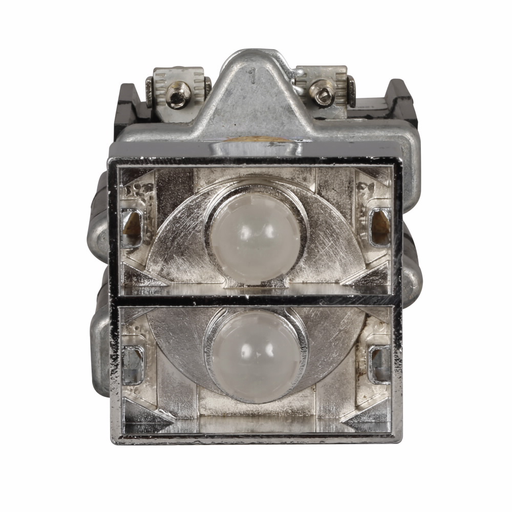

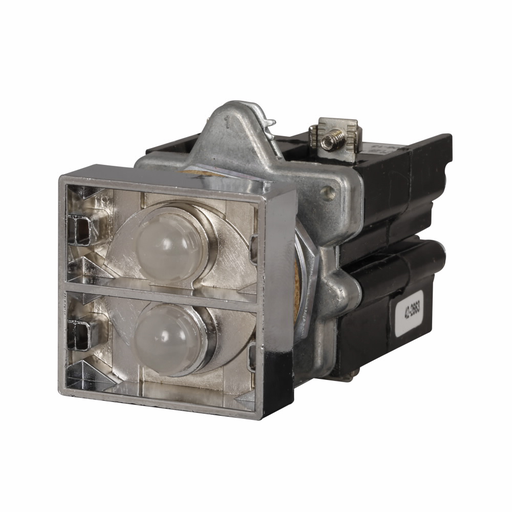

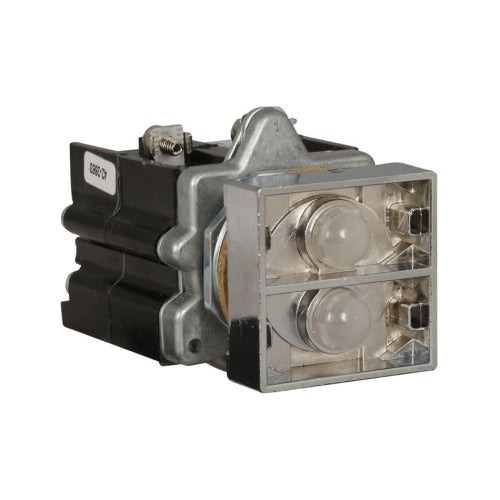

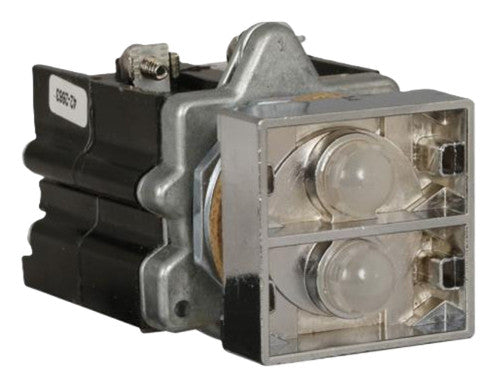

The EATON E30CS light unit is a 30.5 mm metallic dual unit square multifunction incandescent full voltage light unit. This light unit is NEMA rated for 3, 3R, 3S, 4, 12, and 13 environments and operates at 28 Vac/dc.

• Accommodates up to four single depth stackable contact blocks.
• High pressure type seals prevent passage of oil and contaminants.
• Buna N cork gasket maintains oiltightness.

Product Highlights

The EATON E30CS light unit is ideal for electrical assemblies, panels, and EOEMs.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E30CS

Technical Specifications

• Actuator: Dual Unit Square Multifunction
• NEMA Size: 12,13,3,3R,3S,4
• Type: 30.5 Mm, Metalliclic
• Brand: Eaton
• Product UPC: 78211331998
• Height: 3.3 Inch
• Length: 2.4 Inch
• Alternate Mfr Part Number: E30CS
• Manufacturer Part Number: E30CS
• (Switching-Indication) NEMA Rating: NEMA 3S
• Component: Accessories
• (Switching-Indication) Size: 30.5 mm
• (Switching-Indication) DC Voltage: 28 VDC
• (Switching-Indication) AC Voltage: 28 VAC
• Sub Component: Indicating Light
• Category: Pilot Light
• Applications: Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
