Product Description

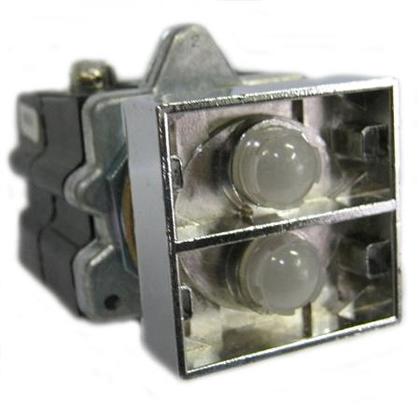

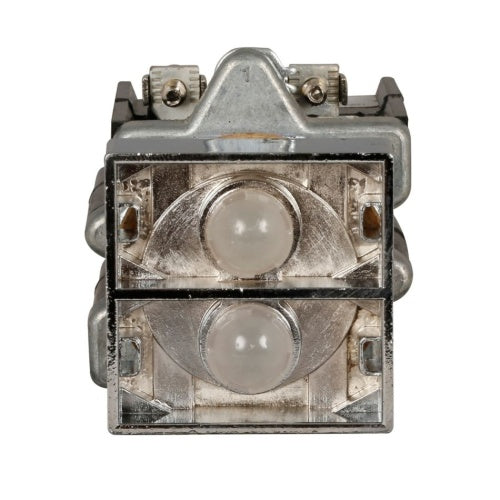

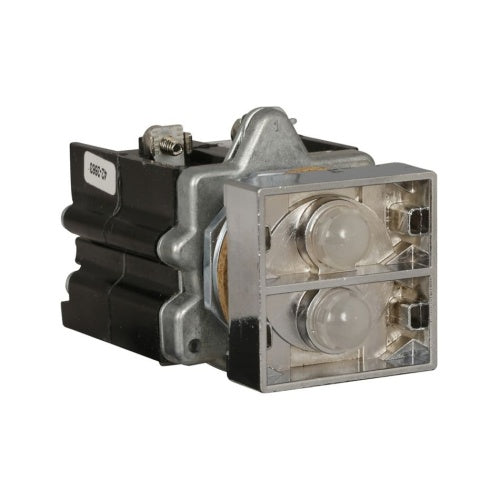

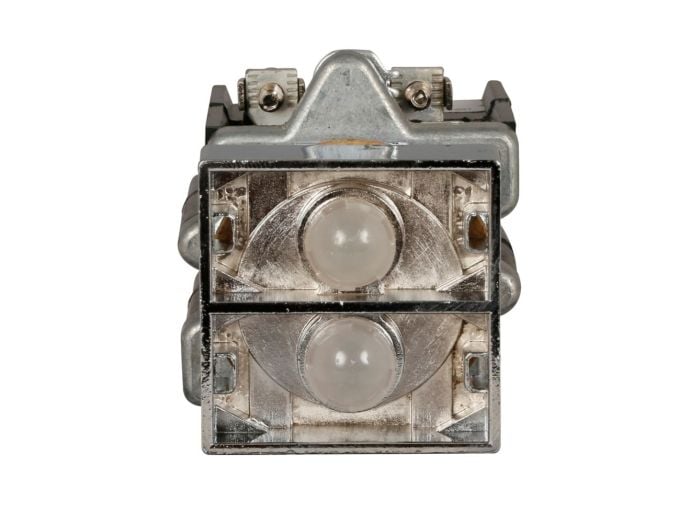

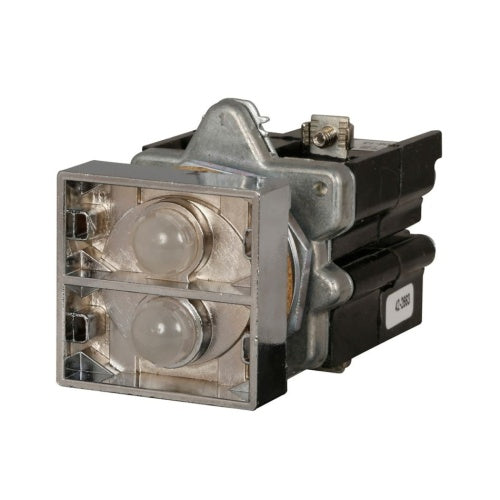

The Eaton E30CA indicating light from the E30 series, features a 30.5 mm metallic construction and is NEMA 3, 3R, 3S, 4, 12, and 13 rated. This dual unit square multifunction indicator light uses an incandescent transformer light unit and operates at 120 VAC, utilizing a 6PSB lamp.
- Accommodates up to four single depth stackable contact blocks behind each operating button, up to eight circuits maximum.
- Supplied complete with either a transformer light unit up to 600 Vac supply line voltage or full voltage light unit up to 120 Vac/Vdc supply line voltage.
- Each operator has high pressure type seals to prevent the passage of oil and other contaminants.
Product Highlights
The EATON E30CA is ideal for automation, logic control equipment, electrical assemblies, panels and OEMs applications.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: E30CA
-
Country of Origin: United States
Technical Specifications
-
NEMA Rating: NEMA 3S
-
AC Voltage: 120 VAC
-
Component: Accessories
-
Manufacturer: Eaton
-
Size: 30.5 mm
-
Sub Component: Indicating Light
-
UNSPSC: 39122216
-
Approval: UL, CSA
-
Lamp Type: Incandescent
-
Application: Automation, Logic Control Equipment, Electrical Assemblies, Panels and OEMs Applications
-
Enclosure Type: NEMA 3/3R/3S/4/12/13
-
Voltage Rating: 120
-
Number of Lights: 2.0000
-
Enclosure: NEMA 3/3R/3S/4/12/13
-
Series: E30
-
Lamp Number: 6PSB
-
Lamp Input Type: 120 Volt AC at 50/60 Hertz Transformer
-
Volts AC Control: 120
-
Type: Indicator, Illuminated
-
IP/NEMA Rating: NEMA 3R, NEMA 4X, NEMA 12, NEMA 13, NEMA 3, NEMA 4
-
Brand: Cutler Hammer - Eaton
-
Current Type: AC/DC
-
Model: E30
-
Illumination: Illuminated
-
Features: Indicator Light, Pilot Light
-
MPN: E30, E30CA
-
Number of Circuits: 1
-
Country of Origin: United States
-
Primary brand: Eaton
-
Secondary brand: Cutler-Hammer
-
Main function: Head
-
Product series / family name: E30 series
-
Functions: 30mm multifunction head/operator - 2-elements
1 x plt lght (Type G cap) - Transformer
1 x plt lght (Type G cap)
-
Supply voltage (AC): 120Vac
-
Shape: Square
-
Degree of protection: IP65
-
Manufacturer product status: Commercialized
-
Compliant with standard(s): CE
EN60947-5-1
EN60947-5-5
UL508
CSA
-
Description: E30, 30.5 mm, Metallic, NEMA 3, 3R, 3S, 4, 12, 13, Dual unit square multifunction, Incandescent, transformer light unit, 120 Vac light unit, 6PSB
-
Net Weight: 0.6 lbs
-
Gross Weight: 0.65 lbs
