Eaton E30AM Operator, E30 Series, 30.5 mm

Product Description

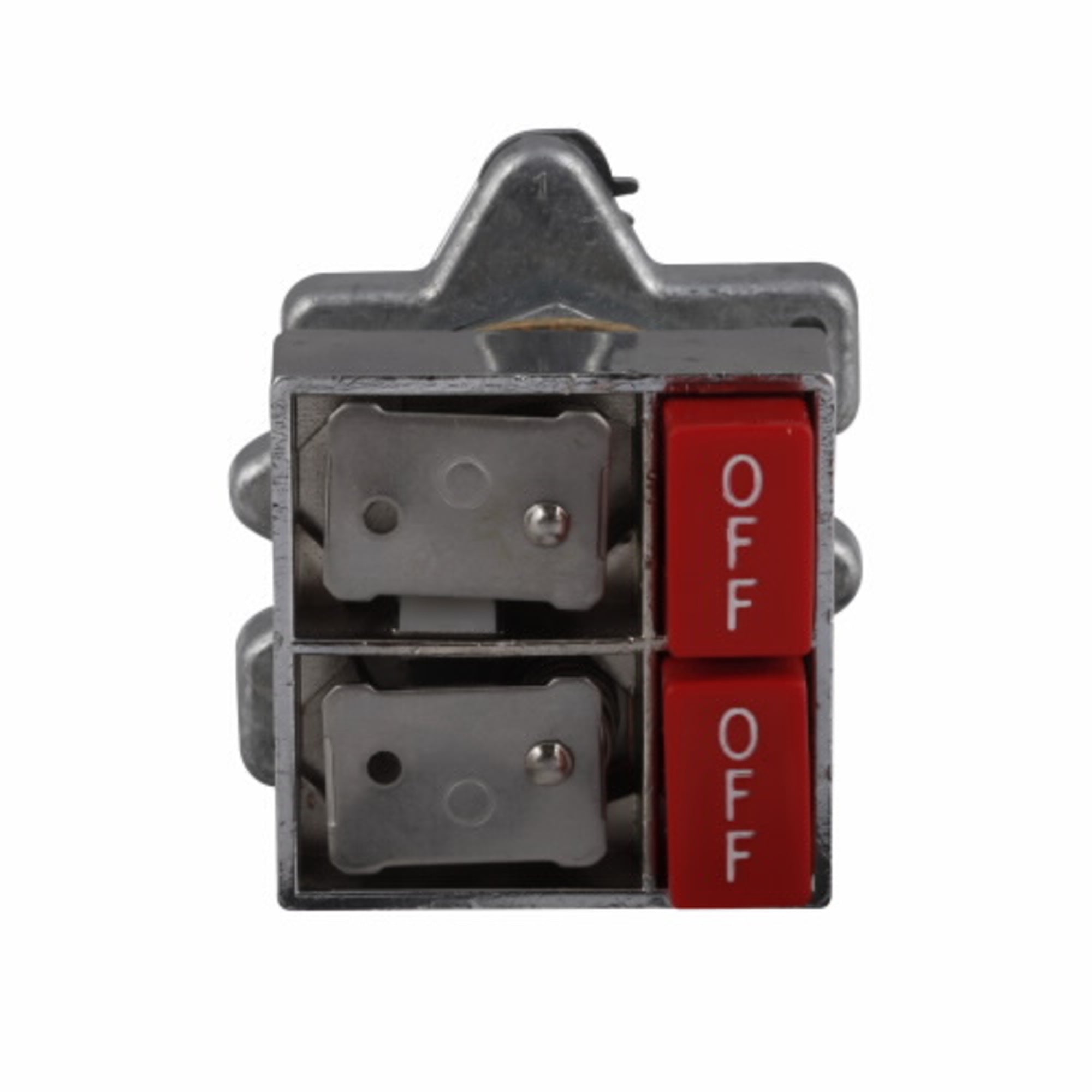

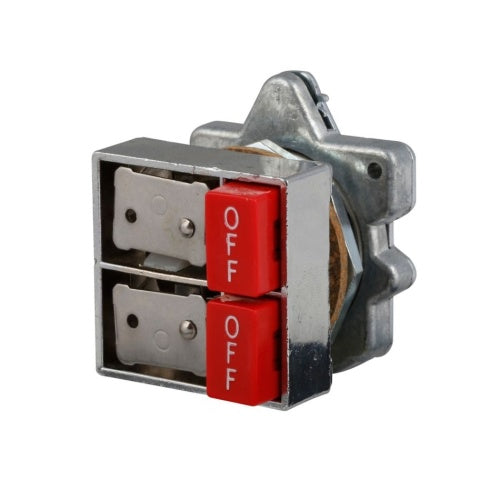

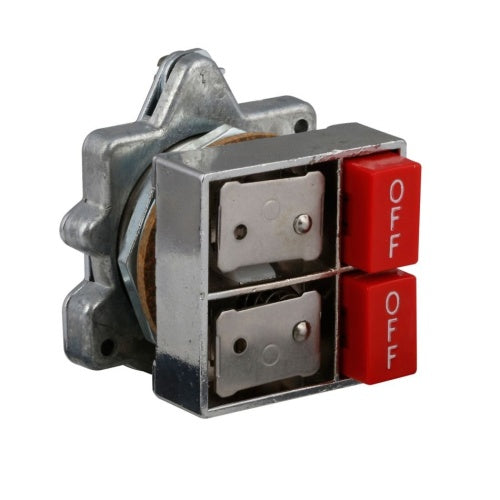

The Eaton E30AM is an operator from the E30 series, designed for multifunctionality. This 30.5 mm square operator features die-cast construction, preventing oil and contaminant passage. It is non-illuminated and includes maintained with interlock (top) and momentary with interlock (bottom) operations, along with two (OFF) release bars for each button.

• Accommodates up to four single depth stackable contact blocks behind each operating button, up to eight circuits maximum.
• High pressure type seals prevent passage of oil and other contaminants.
• Buna N cork gasket between the mounting flange and the panel maintains oiltightness.

Product Highlights

Square, multifunctional operators with die cast construction ideal for industrial and OEM applications. Features custom legending of colored buttons and lenses and many special function accessories.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E30AM
• Country of Origin: Dominican Republic

Technical Specifications

• Primary brand: Eaton
• Secondary brand: Cutler-Hammer
• Main function: Head
• Product series / family name: E30 series
• Functions: 30mm multifunction head/operator - 2-elements mechanical interlock 1 x maintained push btn. (Type C cap) 2 x OFF release bar btns. 1 x maintained btn. (Type C cap)
• Shape: Square
• Operating mode: Stay-put (maintained / latched / bistable) spring-return (impulse / momentary)
• Degree of protection: IP65 NEMA 3 NEMA 3R NEMA 4 NEMA 4X NEMA 12 NEMA 13
• Manufacturer product status: Commercialized
• Compliant with standard(s): CE EN60947-5-1 EN60947-5-5 UL508 CSA
• Brand: Eaton
• Type: Square Operator with 2-Off Bars without Button
• MPN: E30AM
• Size: 30.5mm
• NEMA: 3R, 4
• Number of Buttons: 2
• Button Style: C
• Operation: Maintained
• Color: Not Applicable
• (Switching-Indication) Illumination: Non-Illuminated
• (Switching-Indication) NEMA Rating: NEMA 4
• Sub Component: Push Button Operator
• Component: Accessories
• Manufacturer: Eaton
• (Switching-Indication) Size: 30.5 mm
• (Switching-Indication) Operation: Top: Maintained
• (Switching-Indication) Push Button Type: Two Button - (Off) Release Bars For Each Button
• Country of Origin: Dominican Republic
• Made in USA: No
• Actuator: Two button, (OFF) release bars for each button
• Application: Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
• Standard: CSA Certified, UL Listed
• GTIN: 00782113214139
• Item Type: Pushbutton accessory
