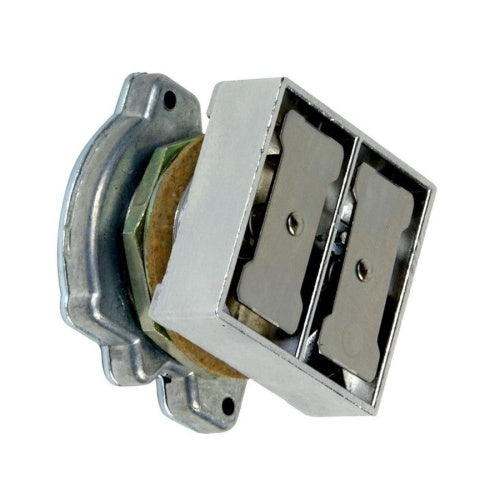

Eaton e30ae Push Button Operator 30.5 Mm Two Button

Product Description

The EATON e30ae is a non-illuminated, two-button push button operator in the E30 Series, designed for industrial and commercial control panel applications. Built to a 30.5 mm mounting diameter, it features a square multifunction actuator head with independent top and bottom momentary operators. Both buttons deliver momentary action, making this operator suited for start/stop, up/down, or dual-function command stations. It carries NEMA 3, 3R, 4, 12, and 13 ratings, confirming protection against dust, oil, and water ingress in demanding environments. Licensed electricians and industrial maintenance technicians install and service this component.

The e30ae fits 30.5 mm panel cutouts in industrial control enclosures, machine tool panels, and process control stations where a compact two-button momentary operator is required. Its NEMA 4 and NEMA 12 ratings make it appropriate for washdown-adjacent locations and oil-tight enclosures found in manufacturing, material handling, and utility environments. The non-illuminated design is typical for applications where pilot light feedback is handled separately or not required.

Key Features

• 30.5 mm mounting size for standard industrial panel cutouts
• Two-button square multifunction actuator head
• Top and bottom buttons both configured for momentary operation
• Non-illuminated operator reduces wiring complexity where indicator lights are not needed
• NEMA 3, 3R, 4, 12, and 13 ratings for use in wet, dusty, and oil-laden environments

Compatibility

Designed as an OEM-style operator accessory for 30.5 mm E30 Series push button control stations and enclosures.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the control panel before installing or replacing any operator component. Confirm the panel cutout diameter matches the 30.5 mm mounting requirement before installation. Do not overtighten the mounting hardware, as excessive force can crack the operator body or distort the enclosure.

Technical Specifications

• Series: E30
• Mounting Size: 30.5 mm
• Actuator Shape: Square Multifunction
• Number of Buttons: Two
• Operation - Top Button: Momentary
• Operation - Bottom Button: Momentary
• Illumination: Non-Illuminated
• NEMA Rating: 3, 3R, 4, 12, 13
• Component Type: Push Button Operator

Standard Information

• Brand: EATON
• Manufacturer Part Number: e30ae
