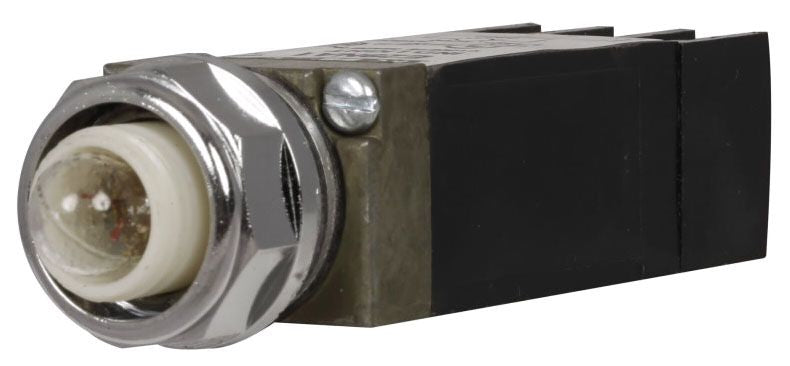

Eaton E29NM1 Standard Type Pushbutton Operator 17 Mm

Product Description

The EATON E29NM1 is a standard-type pushbutton operator with a 17 mm mounting footprint, designed for use in industrial control panels and electrical enclosures. This operator serves as the actuator component in a pushbutton station assembly, transmitting a mechanical switching action to a contact block mounted behind the panel cutout. Licensed electricians and panel builders install this type of device when building or servicing motor control centers, machine control panels, and similar low-voltage switching applications. The 17 mm form factor keeps it compatible with a range of standard operator heads and contact block assemblies in the E29 series.

This pushbutton operator is suited for residential, commercial, and light industrial control applications where a reliable, compact switching interface is required. It mounts through a standard 17 mm panel cutout and pairs with compatible contact blocks to complete a functional switching circuit. Panel builders, industrial electricians, and maintenance technicians are the primary installers of this type of component.

Key Features

• Standard-type operator head designed for 17 mm panel cutout mounting
• Part of the EATON E29 series pushbutton operator family
• Compact profile suitable for high-density control panel layouts
• Lightweight construction at 0.200 pounds

Compatibility

Designed as an OEM-style replacement or new-installation operator for standard 17 mm pushbutton station assemblies. Refer to EATON E29 series documentation for compatible contact blocks and legend plates.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the control panel before installing or replacing any operator or contact block. Ensure the panel cutout matches the 17 mm mounting diameter before seating the operator. Do not overtighten the mounting hardware, as this may damage the operator body or contact block interface.

Technical Specifications

• Operator Type: Standard
• Mounting Diameter: 17 mm
• Length: 4.700 inches
• Width: 1.200 inches
• Height: 1.000 inches
• Weight: 0.200 pounds
• UPC: 78211313482

Standard Information

• Brand: EATON
• Manufacturer Part Number: E29NM1
