Eaton E22T3 Illuminated Pushbutton Operator 25 mm

Product Description

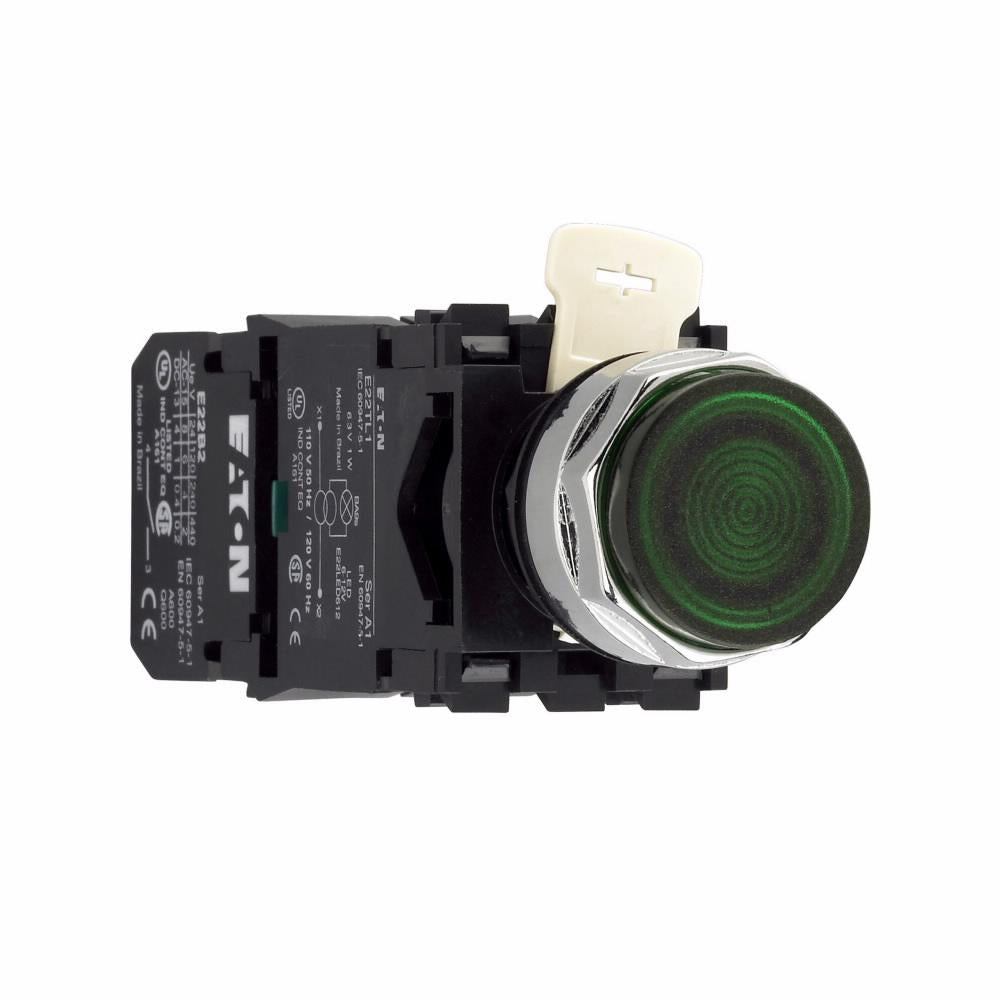

The EATON E22T3 is an illuminated pushbutton operator designed for heavy-duty applications. This Series E22, 25 mm momentary contact mode operator features an extended button and a polished chrome bezel/housing. Suitable for automation, logic control equipment, and electrical assemblies. It is NEMA 3/3R/4/4X/12/13 rated and operates in temperatures from -20 to 60 deg C.

• Accepts a maximum of 2 contact blocks 4-circuits when used with supplied 3-way adapter
• Constructed of glass filled nylon
• Features no light unit

Product Highlights

The EATON E22T3 pushbutton operator is a heavy-duty, illuminated component with a momentary contact mode, ideal for various industrial applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E22T3
• Country of Origin: Germany

Technical Specifications

• Application: Automation and Logic Control Equipment, Electrical Assemblies, Panels and EOEMs Applications
• Bezel Housing: Polished Chrome
• Color: Green
• Enclosure: NEMA 3/3R/4/4X/12/13
• Manufacturer Part Number: E22T3
• Material: Plastic
• Series: E22
• Size: 25 mm
• Standards/Approvals: Buy American Act Compliant|CE Marking|CSA C22.2 No.14 File No.LR68551/213-M1987/LR20713|IEC 947-5-1|Lloyd's Register Certified|MTTA Certified|UL 508/1604 File No.E131568/E10323
• Temperature Rating: -20 to 60 deg C
• Type: Heavy Duty
• Operating mode: Momentary
• Illumination: Illuminated
• Light unit type: No light unit
• Product Length/Depth: 5 in
• Product Height: 1.5 in
• Product Width: 4 in
• Catalog Number: E22T3
• Component: Push Button
• Operator Type: Extended Button
• Brand: Eaton
• Contact Mode: Momentary
• Country of Origin: China
