Eaton E22P2 Pushbutton 22.5 mm

Product Description

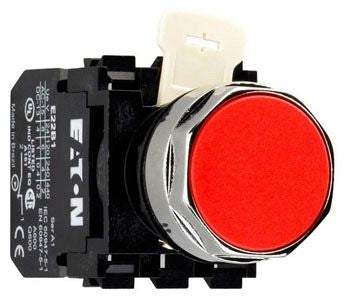

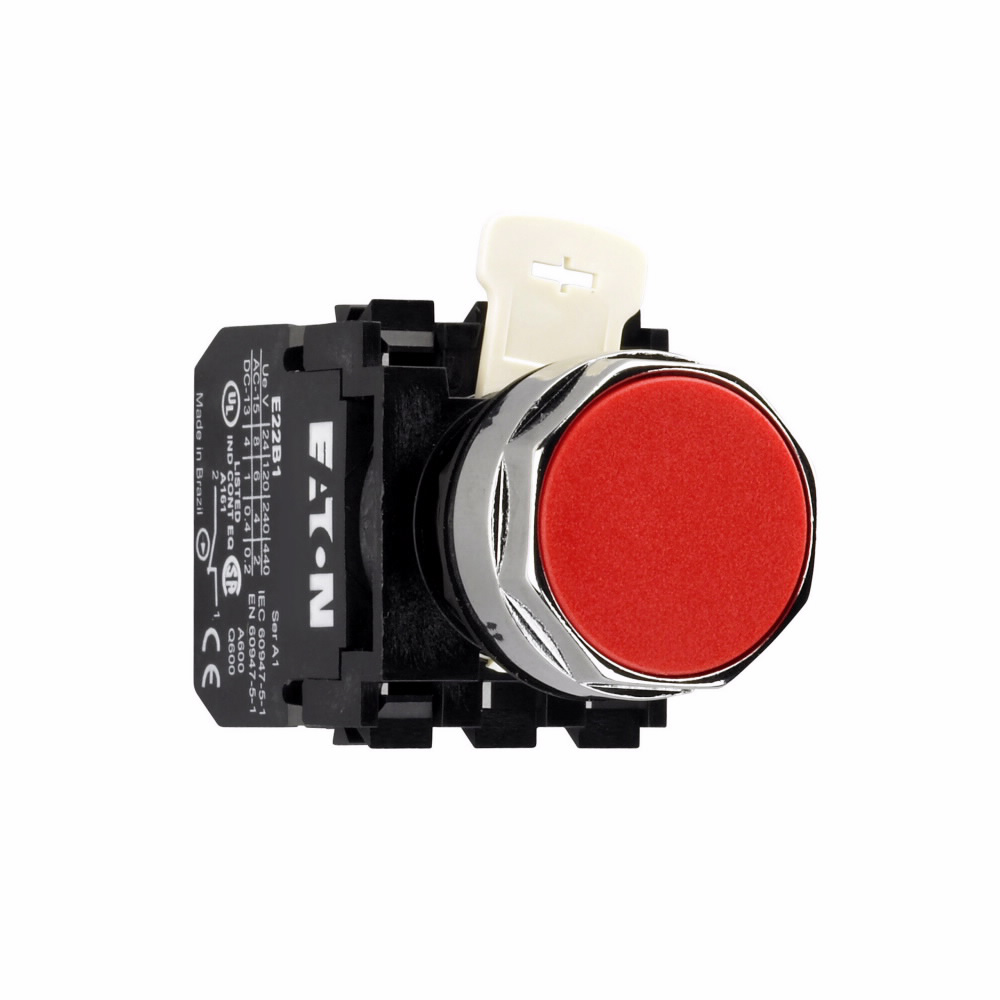

The EATON E22P2 is a non-metallic heavy-duty pushbutton with a red plastic actuator and chrome bezel. This non-illuminated pushbutton features a 1NO contact configuration, flush mounting, and momentary operation. It is designed for use in NEMA 3, 3R, 4, 4X, 12, and 13 enclosures and has a size of 22.5 mm.

• Non-metallic Heavy-Duty
• Red Plastic Actuator
• Chrome Bezel
• 1NO Contact
• Non-illuminated

Product Highlights

Heavy-duty, non-illuminated pushbutton with chrome bezel, plastic actuator, and 1NO contact configuration.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E22P2

Technical Specifications

• GTIN: 00782113468976
• Size: 22.5 mm
• Type: Heavy-Duty,Non-metallic
• Brand: Eaton
• Height: 1-1/2 Inch
• Length: 2 Inch
• Actuator: Flush
• Enclosure: NEMA 3/3R/4/4X/12/13
• NEMA Size: 12,13,3,3R,4,4X
• Bezel Color: Chrome
• Product UPC: 78211346897
• 12-Digit UPC: 782113468976
• Applications: Stationary Machinery and Equipment Outside Factory - Stationary Machinery and Equipment Outside Factory - Other
• Mounting Type: Flush
• Enclosure Material: Stainless Steel
• Contact Configuration: 1NO
• Bezel Material: Chrome
• Body Material: Non-Metallic
• Operation Type: Momentary
• Size REF: 22.5 MM
• Application: Stationary Machinery, Equipment Outside Factory and Other Applications
• Bezel Housing: Polished Chrome Bezel
• Material: Plastic
• Series: E22
• Standards/Approvals: CE Marking|CSA Certified|IEC 947-5-1|Lloyd's Register Certified|MTTA Certified|UL 508
• Manufacturer Part Number: E22P2
• Bezel/Housing: Metal/Chrome
• Contact Mode: Momentary
• Enclosure Type: NEMA 3/3R/4/4X/12/13
• (Switching-Indication) Illumination: Non-Illuminated
• (Switching-Indication) NEMA Rating: NEMA 4X
• (Switching-Indication) Contact Configuration: 1 NO
• Component: Push Button
• (Switching-Indication) Size: 22.5 mm
• Manufacturer: Eaton
• (Switching-Indication) Push Button Type: Flush
• Standard: UL 508;Lloyd's Register Certified;CSA Certified;IEC 947-5-1 MTTA;CE Marked
• Illumination: Non-illuminated
• Light Unit Type: No light unit
• Operating Mode: Momentary
• Actuator Color: Red
• Bezel: Chrome
• Actuator Material: Plastic
• Product Category: Flush pushbutton
• Contact configuration: 1 NO
• Product category: Flush pushbutton
• Degree of protection: NEMA 3|NEMA 4|NEMA 13|NEMA 12|NEMA 3R|NEMA 4X
• UPC: 0782113468976
• Button Color: Red
• Mounting Style: Flush
• Model: E22P2
