Eaton E22LED612GN Pushbutton 6-12V AC/DC Green LED

Product Description

The EATON E22LED612GN is a pushbutton pilot device with a green LED, designed for electrical assemblies and panels. It operates on 6-12V AC/DC. This LED lamp is suitable for motor control applications and general purpose lighting.

• LED
• Motor Control application
• 6-12VAC/VDC

Product Highlights

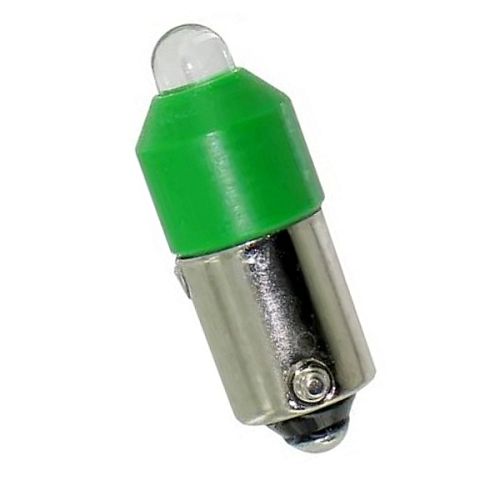

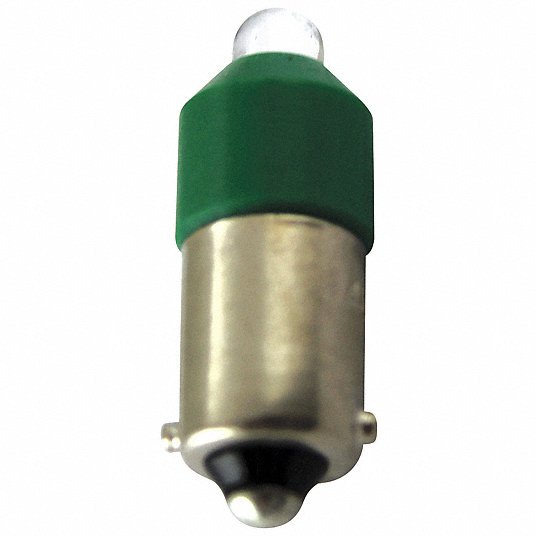

This miniature LED bulb has a T3-1/4 shape and a miniature bayonet (BA9s) base.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E22LED612GN
• Country of Origin: Dominican Republic

Technical Specifications

• Manufacturer Part Number: E22LED612GN
• Brand: EATON
• Series: E34 Series
• Type: LED
• Voltage Rating: 6 to 12 V
• Application: Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
• Color Emitted: Green
• Lens Color: Green
• Product Type: LED Lamp
• Voltage: 6-12VAC/VDC
• Light Color: Green
• Bulb Base Type: Miniature Bayonet (BA9s)
• Bulb Shape: T3-1/4
• Dimmable: No
• Light Technology: LED
• Power Source: Direct Wired
• Rated Life: 25,000 hr
• Standards: BS 4794; CE Certified; CSA Std. C22.2; IEC 337-1; IEC 947-5-1 MTTA; Lioyd's Register Certified; UL 508
• Wattage: 0.25 W
• Base Type: Bayonet
• Configuration: Single
• Can Replace Lamps: General Purpose Lamps
• Applications: General Purpose Lighting
• Manufacturer Standard Package: 1
• Part Status: Active
