Eaton E22LED120YN E22 Ashville LED Bulb 120 VAC/VDC

Product Description

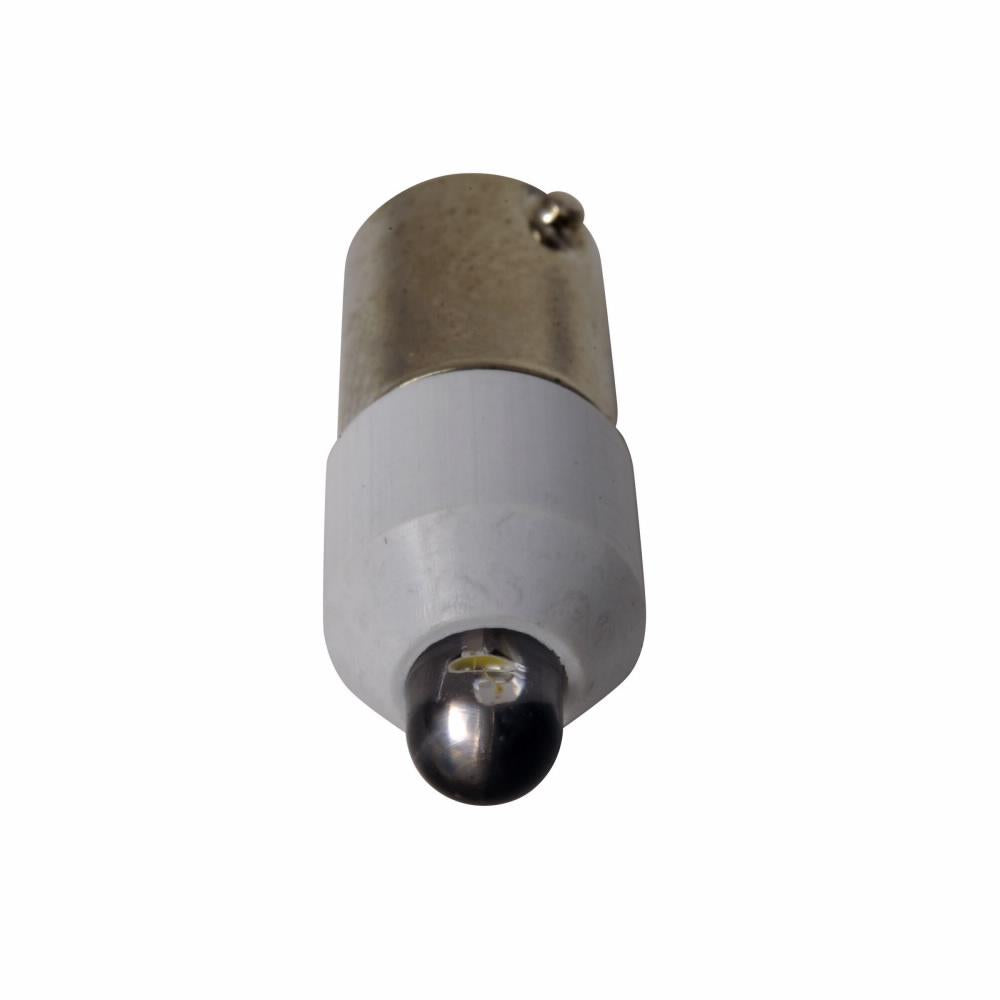

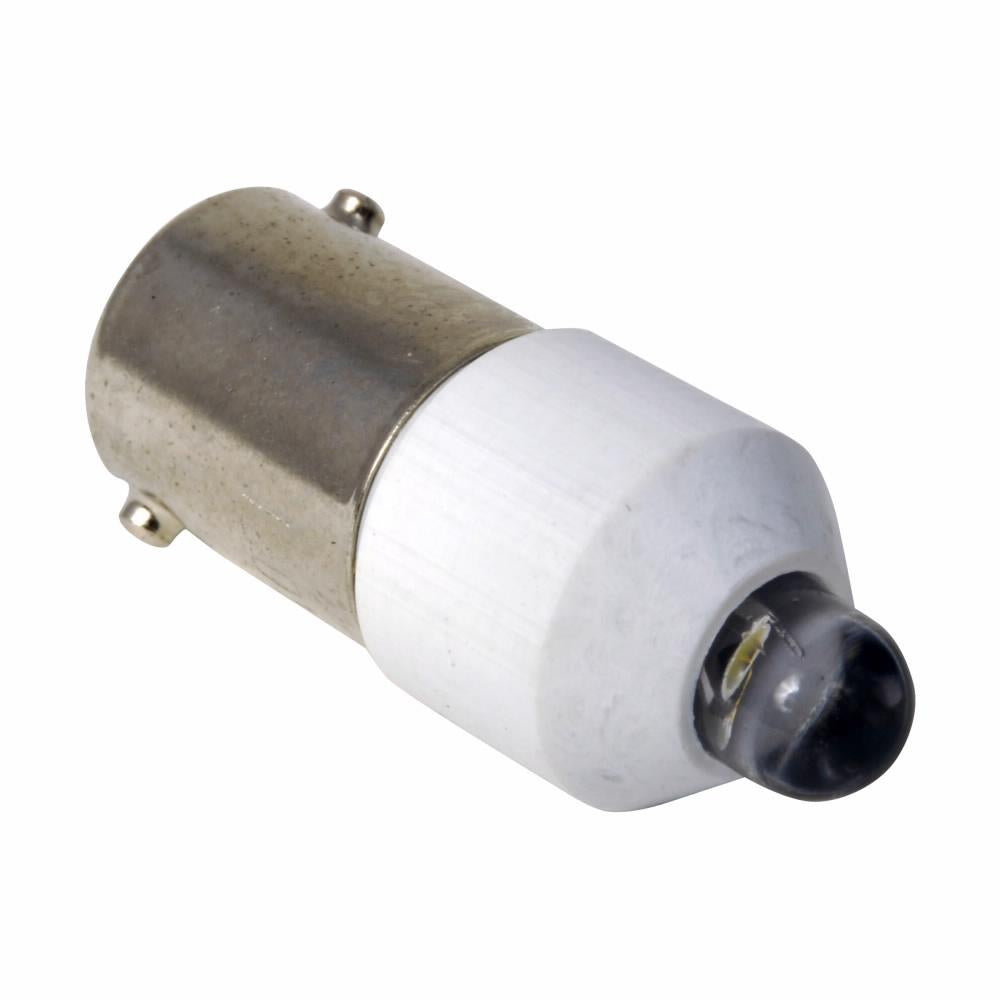

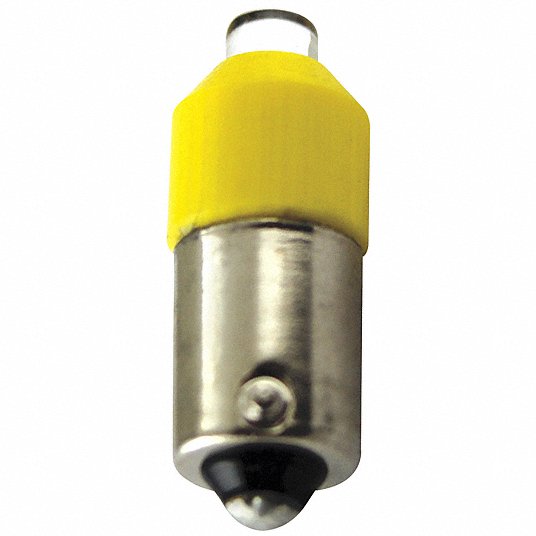

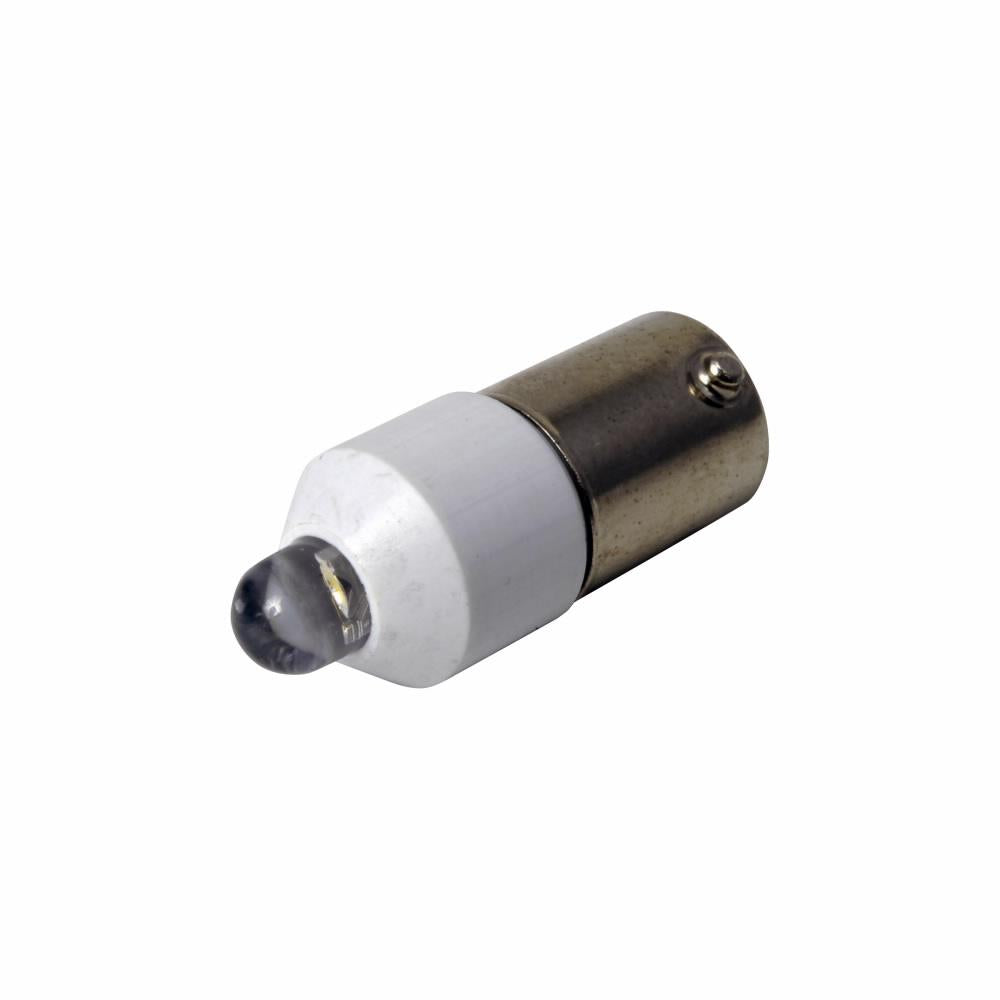

The Eaton E22LED120YN is an E22 Ashville series LED bulb. This LED lamp is designed with a BA9s miniature bayonet base and a T3 shape. It operates at 120 VAC/VDC, making it suitable for various industrial and commercial applications, including use with E22 series indicating lights and pushbutton operators.

• 30 mm switch mounting
• BA9s Miniature Bayonet Lamp Base
• 0.1 x 0.1 x 0.1 in Dimensions

Product Highlights

Eaton E22LED120YN LED bulb with BA9s base, ideal for automation, control equipment, and machinery.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: E22LED120YN
• Country of Origin: Dominican Republic

Technical Specifications

• Color: Yellow
• Series: E22 Ashville
• Voltage Rating: 120 VAC/VDC
• Lamp Base Type: BA9s Miniature Bayonet
• Lamp Type: LED
• Shape: T3
• Wattage: 0.72 W
• Rated Life: 25,000 hr
• Standards: BS 4794; CE Certified; CSA Std. C22.2; IEC 337-1; IEC 947-5-1 MTTA; Lioyd's Register Certified; UL 508
• Power Source: Direct Wired
• Dimming Method: No Dimming
• Dimmable: No
• Bulb Shape: T3-1/4
• Bulb Base Type: Miniature Bayonet (BA9s)
• Manufacturer Part Number: E22LED120YN
• Brand: EATON
• Voltage - Forward (Vf) (Typ): 120V AC/DC
• Base Type: Bayonet
• Packaging: Bag
• Part Status: Active
• Configuration: Single
• Can Replace Lamps: General Purpose Lamps
• Applications: General Purpose Lighting
