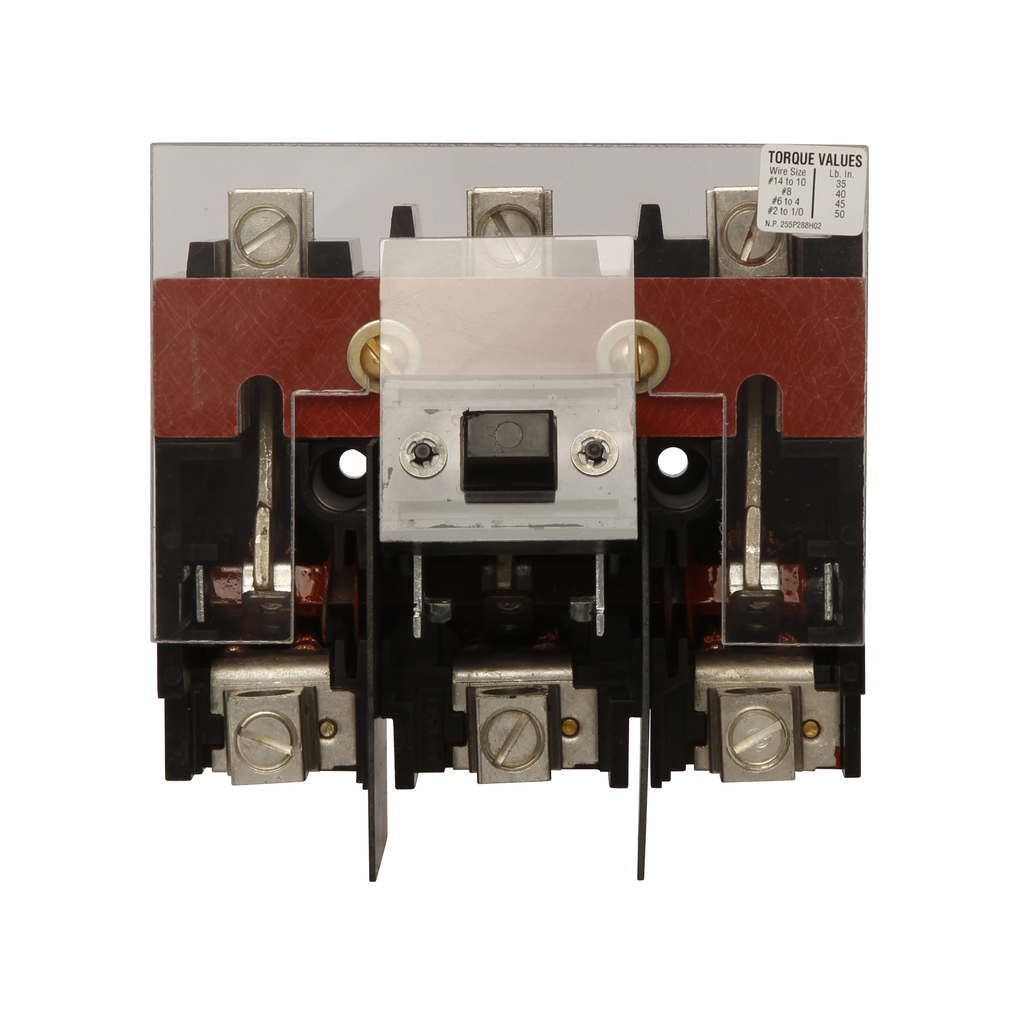

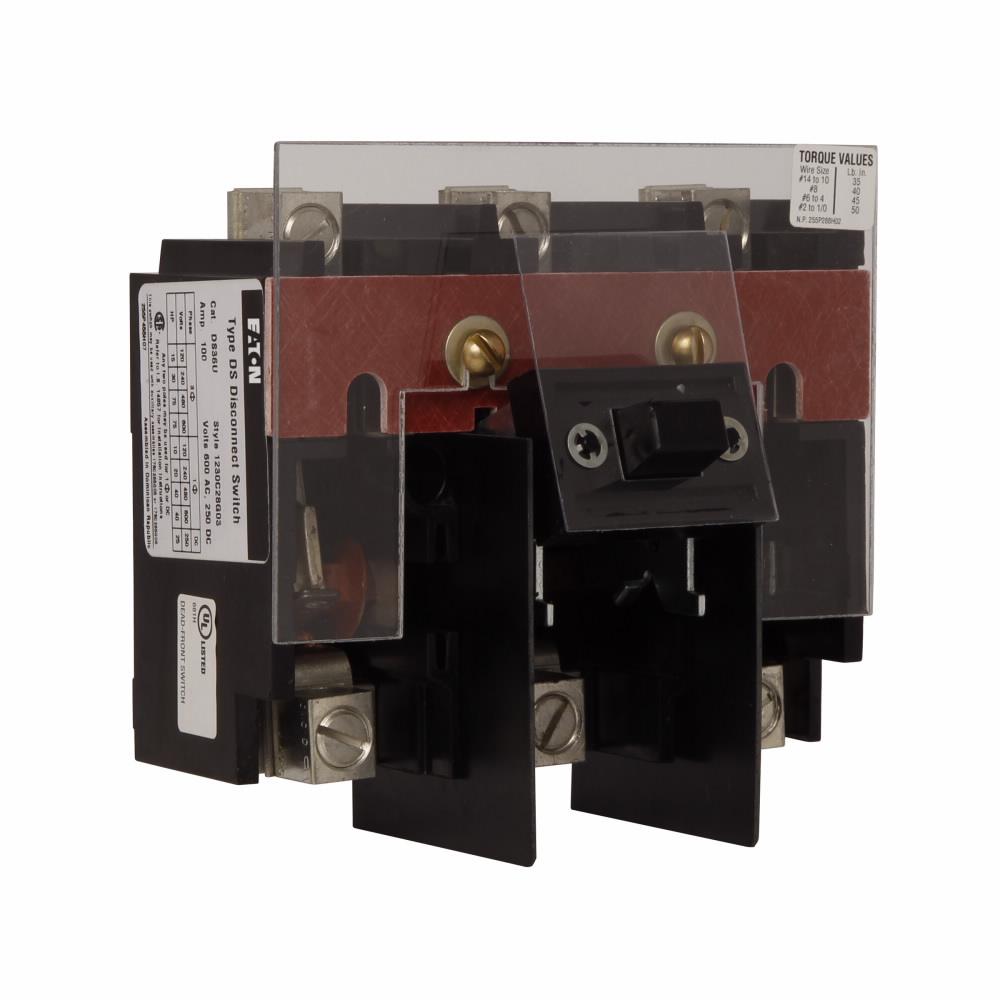

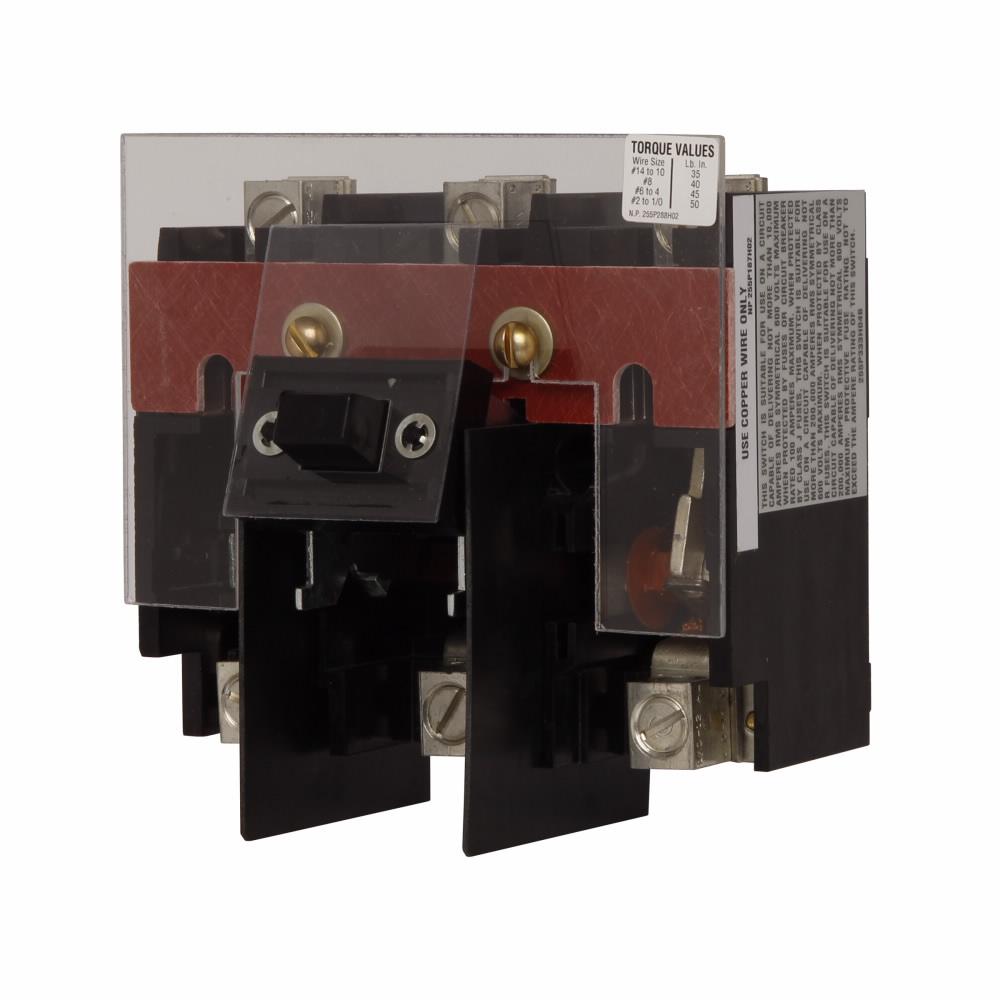

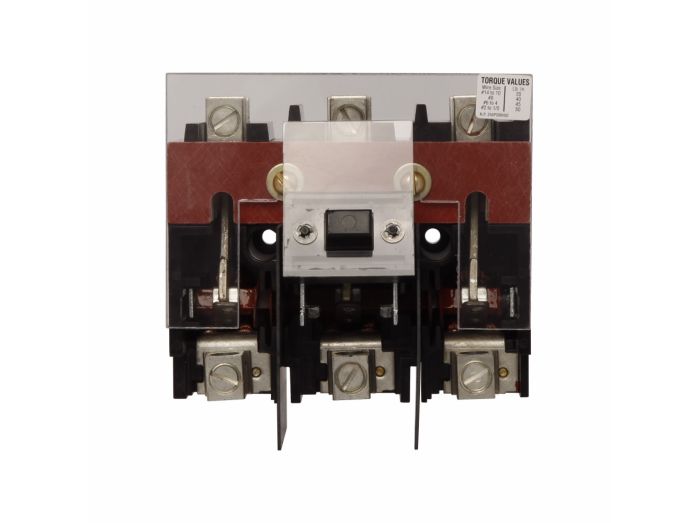

Eaton DS36U Type DS Nonfusible Disconnect Switch 100A

Product Description

The Eaton DS36U Type DS Nonfusible Disconnect Switch is a panel-mounted disconnect designed for load break applications. Utilizing DE-ION arc-quenching and a quick-make/quick-break toggle mechanism, this three-pole switch is rated for 100A, 600 VAC, and 250 VDC. It is UL listed and CSA certified.

• Compact load break switch
• Features DE-ION arc-quenching principle
• Equipped with a quick make/quick break over center toggle mechanism

Product Highlights

This Eaton disconnect switch is ideal for commercial and institutional buildings, ensuring reliable power distribution with its robust design and safety features.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: DS36U
• Country of Origin: Dominican Republic

Technical Specifications

• Catalog Number: DS36U
• Manufacturer: Cutler-Hammer / Eaton
• Amperage: 100 Amp
• Type: Type DS - Disconnect Switch
• Brand: Eaton
• Width: 5.8 in
• Height: 5.3 Inch
• Length: 9.9 Inch
• Standard: CSA,UL
• Number of Poles: 3 Pole
• Country of Origin: Dominican Republic
• Made in USA: No
• Item Type: Disconnect switch
• Actuator Type: Toggle
• Mounting Type: Panel
• Voltage Rating: 600 VAC/250 VDC
• Horsepower: 75 hp
• Application: Power Distribution Applications
• Current Rating: 100 A
• Max Voltage: 600 VAC, 250 VDC
• Component: Non-Fusible Disconnect Switch
