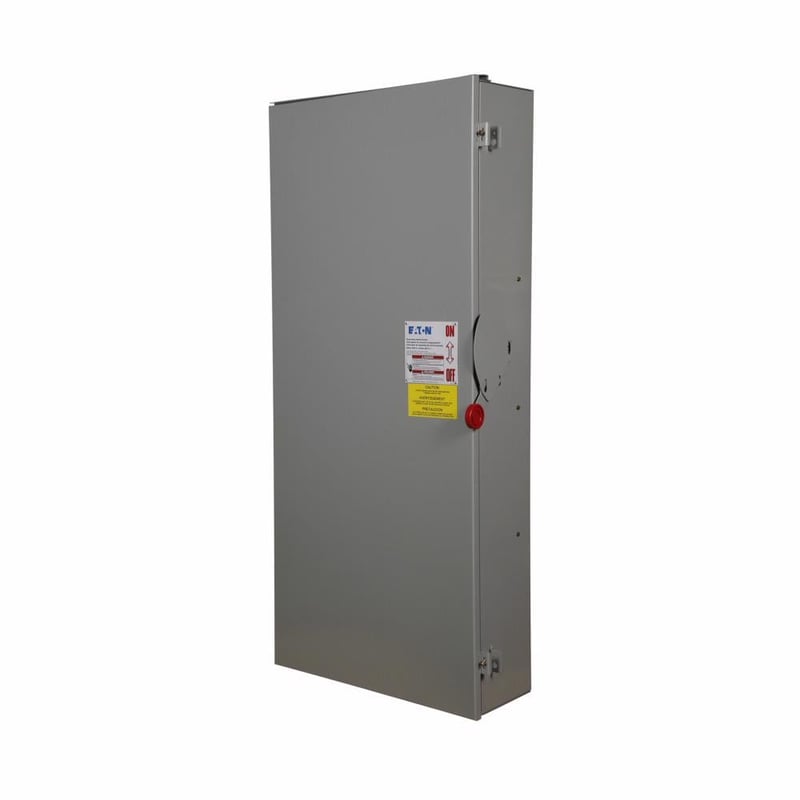

Eaton DH367FRK 800 Amp, 3 Pole, 600 Volt, NEMA 3R, Fusible Safety Switch

Product Description

The Eaton DH367FRK is an 800 Amp, three-pole, fusible safety switch designed for 600 Volt applications. This switch features a NEMA 3R enclosure made from painted galvanized steel, ensuring durability in outdoor settings.

• Fusible design without neutral for added safety.
• Compatible with max horsepower of five hundred.
• Allows for the connection of four #1/0 to four seven hundred fifty kcmil aluminum wires.

Product Highlights

This switch is suitable for use in commercial and institutional buildings, offering a reliable means of disconnect for power distribution and controls.

Product Information

Standard Information

• Brand: Eaton
• MPN: DH367FRK

Technical Specifications

• Type: Fusible safety switch
• Width: 27.5 inches
• Height: 12.38 inches
• Material: Galvanized Steel
• NEMA Rating: 3R
• Application: Commercial / Institutional Buildings / Structures - Power Distribution and Controls
• Max Horsepower: 500 hp (3PH @480/600 V)
• Standard: UL Listed
