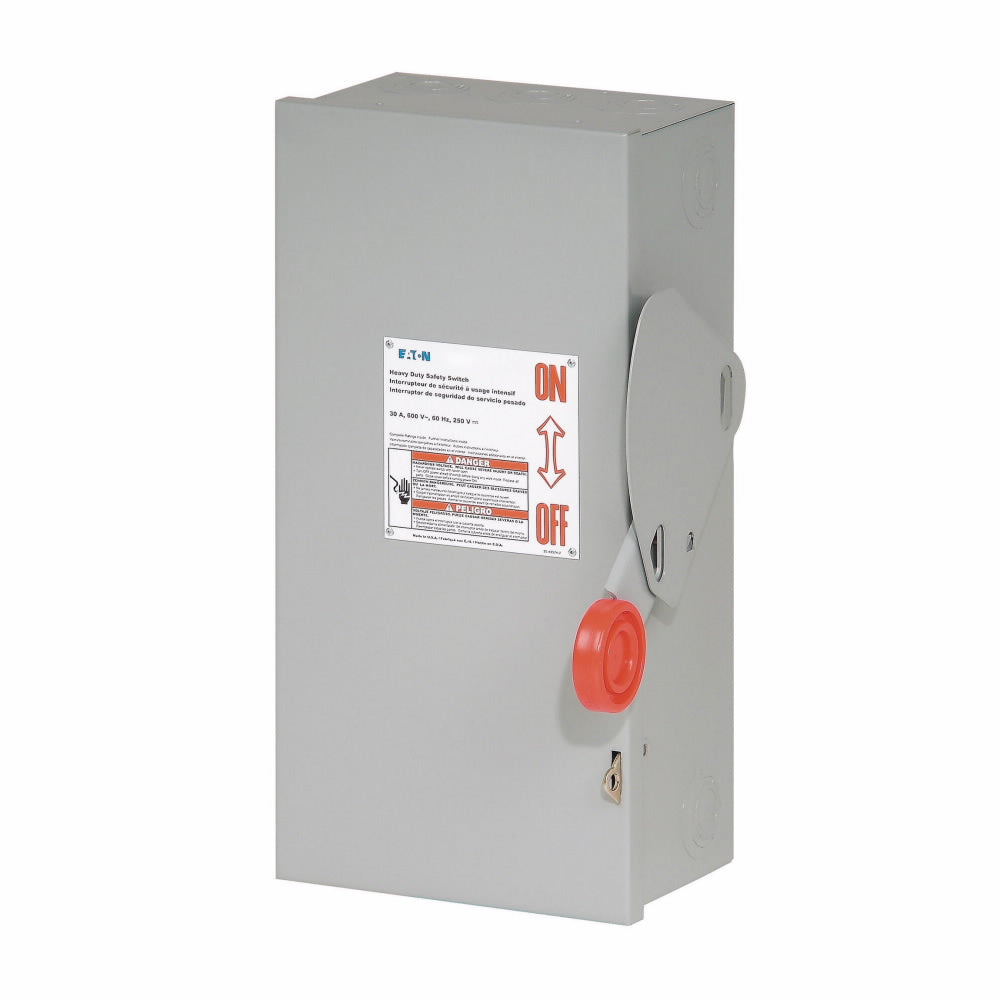

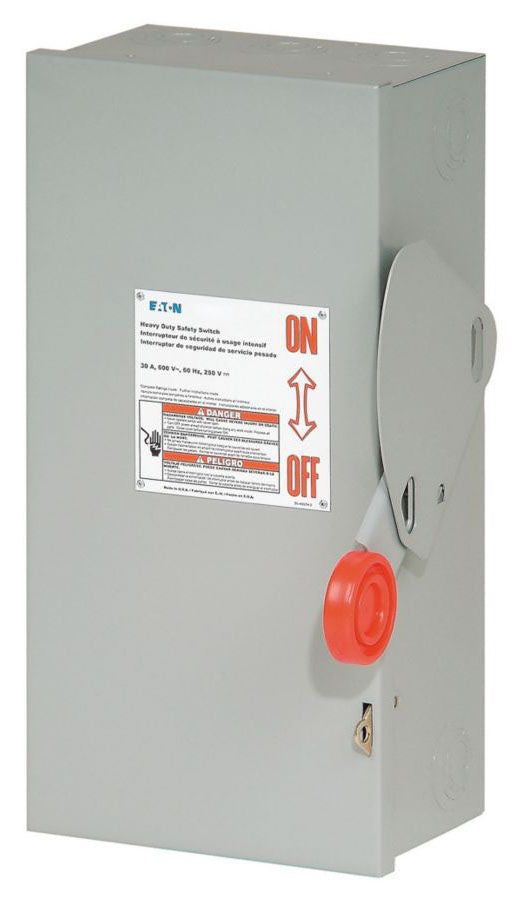

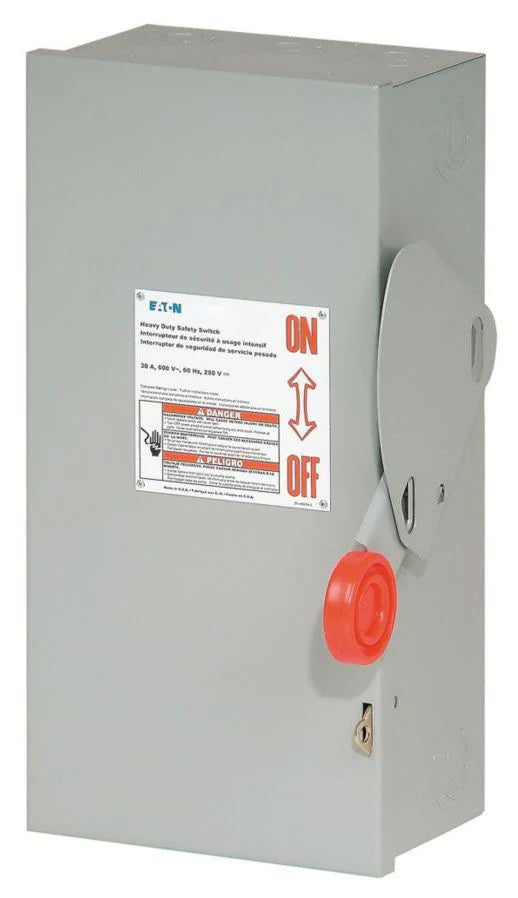

EATON DH361UGK Heavy Duty Non-Fusible Single Throw Safety Switch 600 VAC 30 A

Product Description

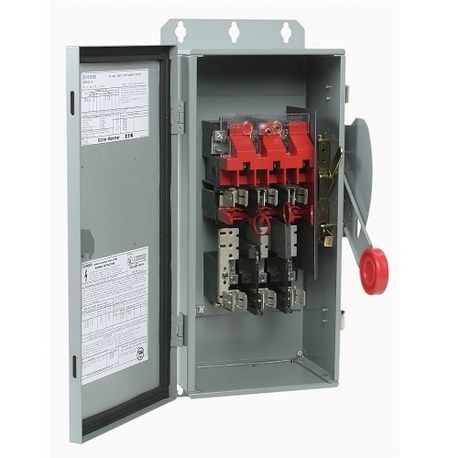

The EATON DH361UGK is a heavy-duty non-fusible single throw safety switch. It is rated for 600 VAC and 30 A. This switch is suitable for various industrial applications requiring reliable operation and safety. It features a TPST contact configuration and 3 poles.

• Visible handle position indicator for easy operation
• Interlocking mechanism enhances safety by preventing access when in the ON position
• Robust design with a painted steel enclosure for durability

Product Highlights

This switch is certified for commercial use, with a short circuit current rating of 200 kA and conforms to UL 98 standards. The switch is ideal for power distribution in commercial and industrial settings.

Product Information

Standard Information

• Brand: EATON
• MPN: DH361UGK

Technical Specifications

• Type: Heavy Duty Non-Fusible Single Throw
• Voltage Rating: 600 VAC
• Amperage Rating: 30 A
• Number of Poles: 3
• Material: Steel
• Finish: Painted
• Dimensions: 16.5 in L x 9.12 in W x 8.31 in H
• Compliance: UL 98 Listed
• Short Circuit Current Rating: 200 kA
