Product Description

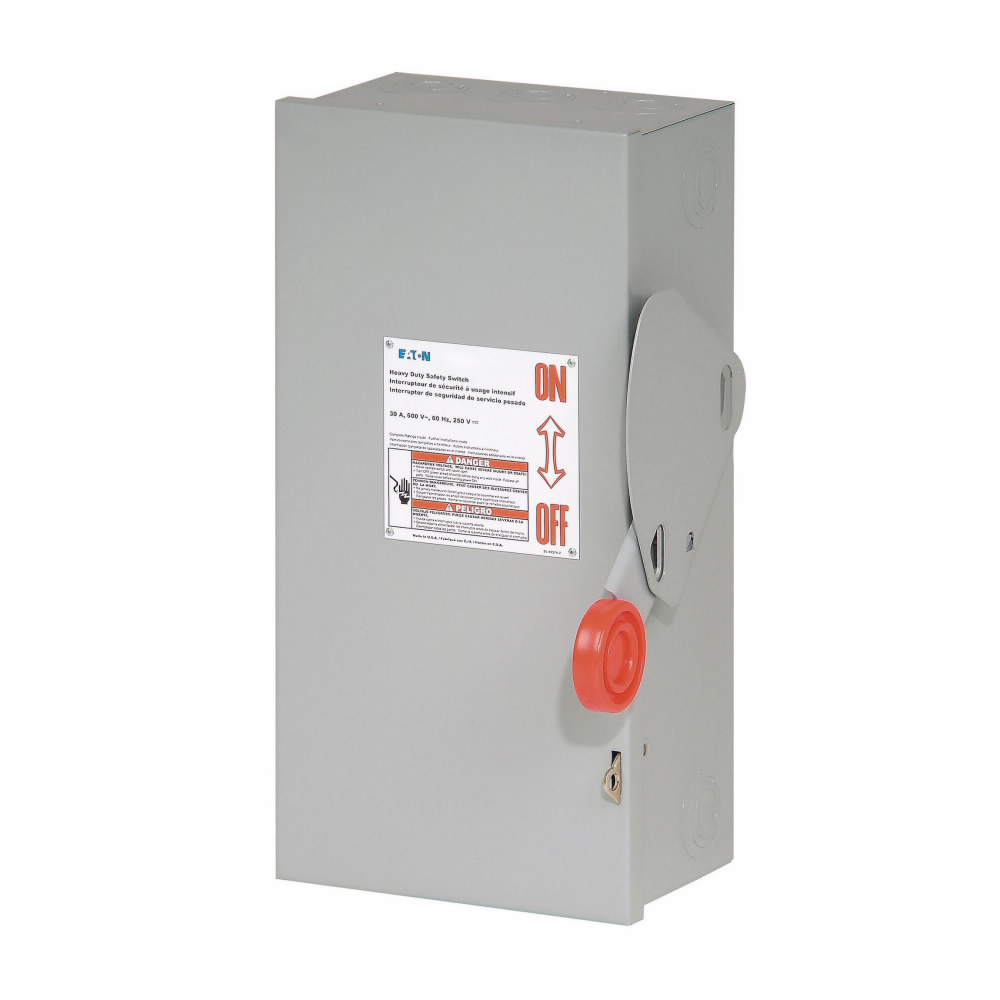

The Eaton DH321FGK is a heavy duty fusible safety switch designed for reliable circuit protection. This switch features three poles and operates at thirty amps. It is suitable for various applications, including commercial and institutional buildings. The NEMA 1 enclosure enhances protection, making it suitable for indoor environments.
- 30 amp rating
- Fusible and designed for three-phase systems
- NEMA 1 enclosure for indoor use
Product Highlights
This switch provides crucial overcurrent protection through field-installed fuses. It meets UL 98 standards, ensuring safety and reliability in demanding environments.
Product Information
Standard Information
-
Brand: Eaton
-
Catalog Number: DH321FGK
Technical Specifications
-
Amperage Rating: 30 A
-
Voltage Rating: 240 VAC
-
Material: Steel
-
Number of Poles: 3
-
Dimensions: 16-1/2 in L x 9-1/2 in W x 16 in H
-
Enclosure Type: NEMA 1
-
Horsepower Ratings: 1-3/4 hp, 3 hp, 5 hp, 7-1/2 hp
-
Short Circuit Current Rating: 100 kA
-
Standards/Approvals: UL 98
