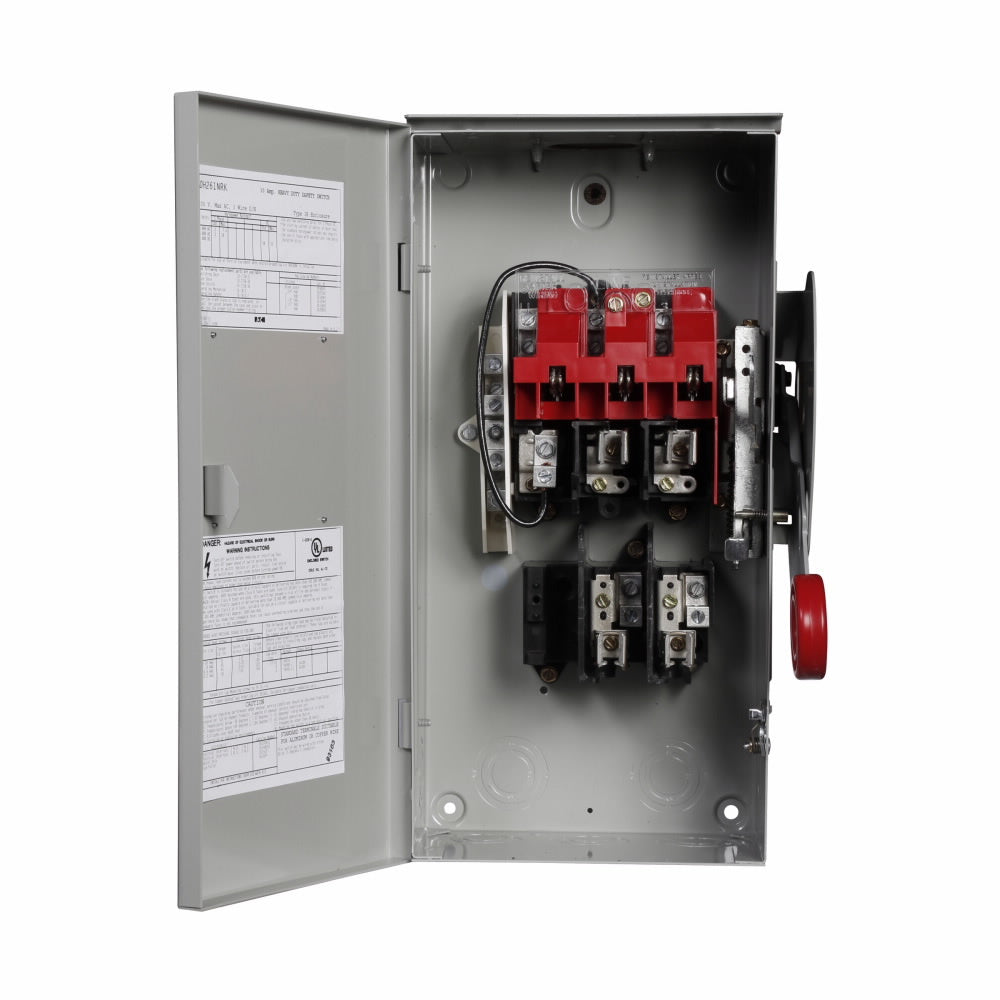

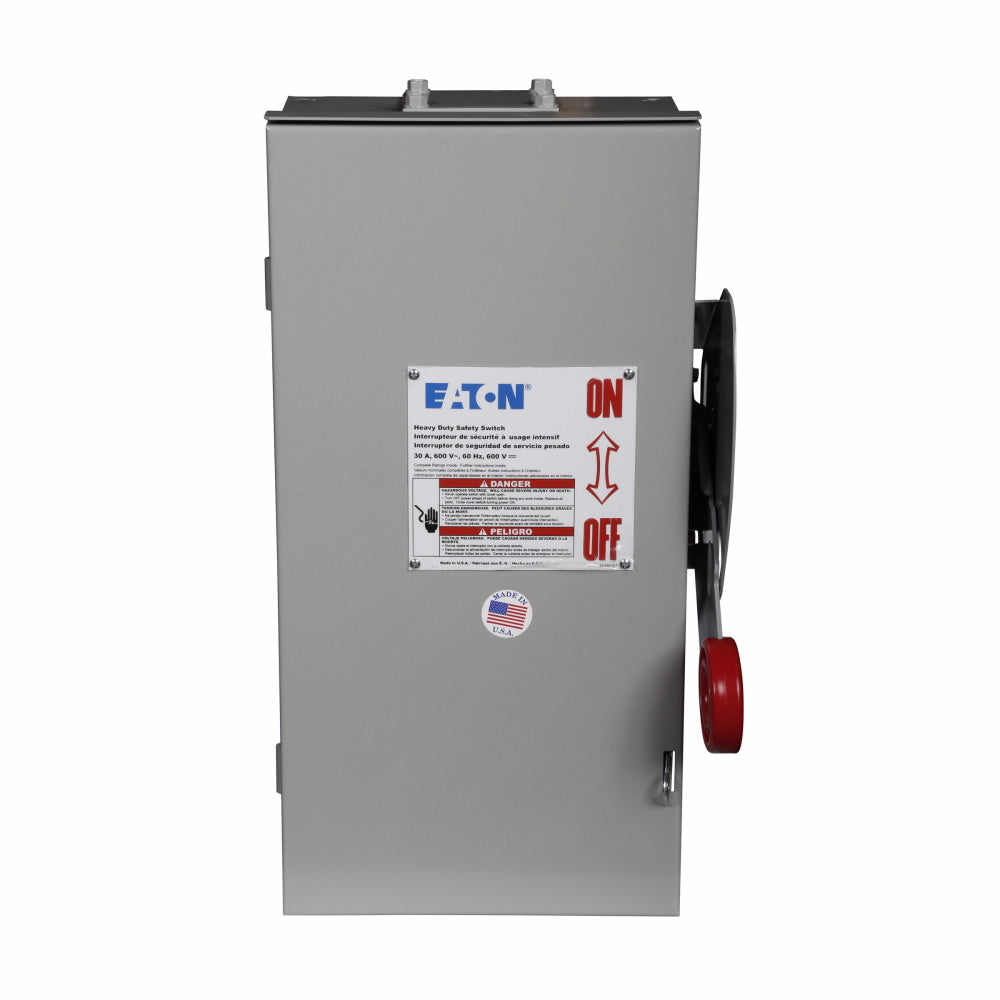

Eaton DH261FRK Heavy Duty Single-Throw Fused Safety Switch 30 A NEMA 3R

Product Description

Eaton DH261FRK is a heavy-duty single-throw fused safety switch rated for thirty amperes. This switch features a NEMA three R enclosure suitable for outdoor use. It is made from painted galvanized steel and does not have a neutral. The switch supports two poles and is designed to work with systems up to six hundred volts, handling motor loads up to fifteen horsepower.

• Heavy-duty switch for outdoor use
• Rated for 30 A with a maximum voltage of 600 V
• Two-pole design for versatile applications

Product Highlights

The Eaton DH261FRK safety switch is ideal for commercial and institutional buildings. It provides reliable performance and safety under demanding conditions.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: DH261FRK

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 600 V
• Material: Painted galvanized steel
• Number of Poles: 2
• NEMA Rating: 3R
• Country of Origin: United States
• Short Circuit Current Rating: 10 kA
• Application: Commercial, Institutional Buildings
