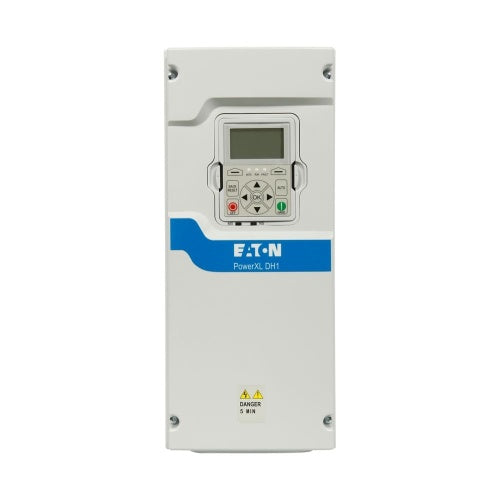

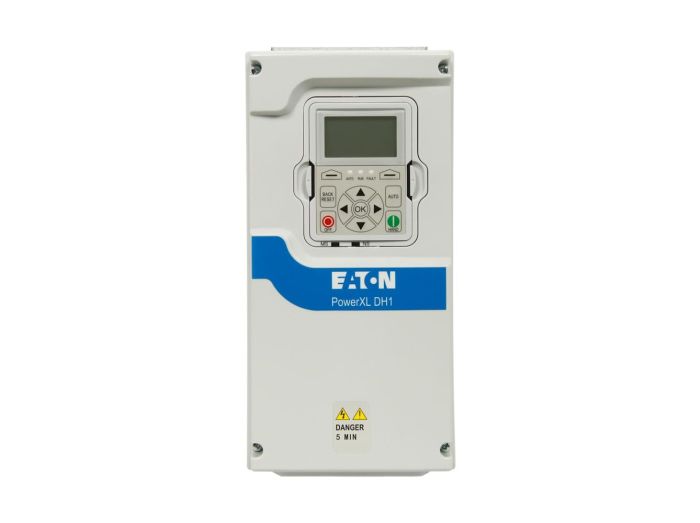

Eaton DH1-349D0DN-C21C PowerXL DH1 variable frequency drive 5 HP

Product Description

The EATON DH1-349D0DN-C21C PowerXL DH1 variable frequency drive is rated for 5 HP, 4 kW, and 380 - 480 Vac. It features a keypad, DC choke, and IP21 rating. Designed for the HVAC/R market, it offers advanced semiconductor technology and a modular design for flexibility.

• Features Eaton’s Active Energy Control for enhanced efficiency and reliability.
• Includes standard HVAC/R communication protocols and expandable options.
• Offers an intuitive interface, standard and expandable communication options, and advanced software tools.

Product Highlights

This drive is ideal for efficient and reliable motor control in HVAC/R applications. It has integrated common mode reduction, variable torque ratings, and durable construction.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: DH1-349D0DN-C21C
• Country of Origin: China

Technical Specifications

• Product Name: Eaton PowerXL DH1 variable frequency drive
• Catalog Number: DH1-349D0DN-C21C
• UPC: 786678007977
• Product Length/Depth: 6.02 in
• Product Height: 12.5 in
• Product Width: 7.91 in
• Compliances: RoHS Compliant C-Tick Compliant CE Marked GoST-R
• Certifications: cUL Listed EN ISO 13849-1 EN 62061 UL Listed UL 508C IEC 61508
• Product Type: Variable frequency drive
• Extended I/O card: BACnet MSTP/IP
• Modification: DC choke
• Amperage Rating: 12A
• Horsepower: 7.50 hp
• Voltage rating: 480 V
• Keypad: Included
• Display: LCD graphical
• Options: Without EMC filter
• Communication: Modbus RTU/TCP
• Rating: IP21
• Power consumption: 5.50 kW 4 kW
• Series: DH1
• Electromagnetic compatibility filter: None
• Internal DC choke: Yes
• Conformal coated boards: Yes
• User interface: Graphical Keypad
• Low overload (VT) amps: 9A
• Low overload (VT) kW: 4 kW
• Low overload (VT) hp: 5 HP
• Input voltage range: 380 - 480 Vac
• Input frequency range: 50 - 60 Hz
• Output frequency range: 0 - 400 Hz
• Max overload: 110% for 1 minute
• Recommended fuse size: 15A
• Relay outputs: 3
• Communications onboard: BACnet/IP, Modbus TCP, Modbus RTU, BACnet MS/TP
• Communication interface: PROFIBUS-DP
• Motor control modes: Frequency Control, Speed Control, Open Loop Speed Control, Open Loop Torque Control
• Motor type: Induction
• Manufacturer: Cutler Hammer, Div of Eaton
• Product Series: DH1
• Family Series: Cutler Hammer, Div of Eaton HVAC Drives, DH1 Series
• Nominal Input Voltage: 480 VAC
• Phase: 3
• HP (Variable Torque Rating): 5 hp
• Amps (Variable Torque Rating): 9 A
• AC Voltage: 380-500 VAC
• Brake: DC Injection
• Closed Loop: No
• AC Line Regenerative: No
• Operator Controls: Keypad Included
• NEMA Rating: NEMA 1
• Mounting: Panel
• Frequency: 400 Hz
• Frame Size: FR1
• Comments: Active Energy Control, Real-Time Clock, Conformal Coated Boards, On-Board BACnet & Modbus
• Net Weight: 14.3313 lbs
• Gross Weight: 14.3313 lbs
• VFD Amperage Output: 12 Amp
• VFD Horsepower Output: 7.5 HP
• VFD Input Voltage: 480 Volt Three Phase
• VFD Output Voltage: 480 Volt Three Phase
• VFD NEMA-IP Rating: IP21
• VFD Line: DH1
