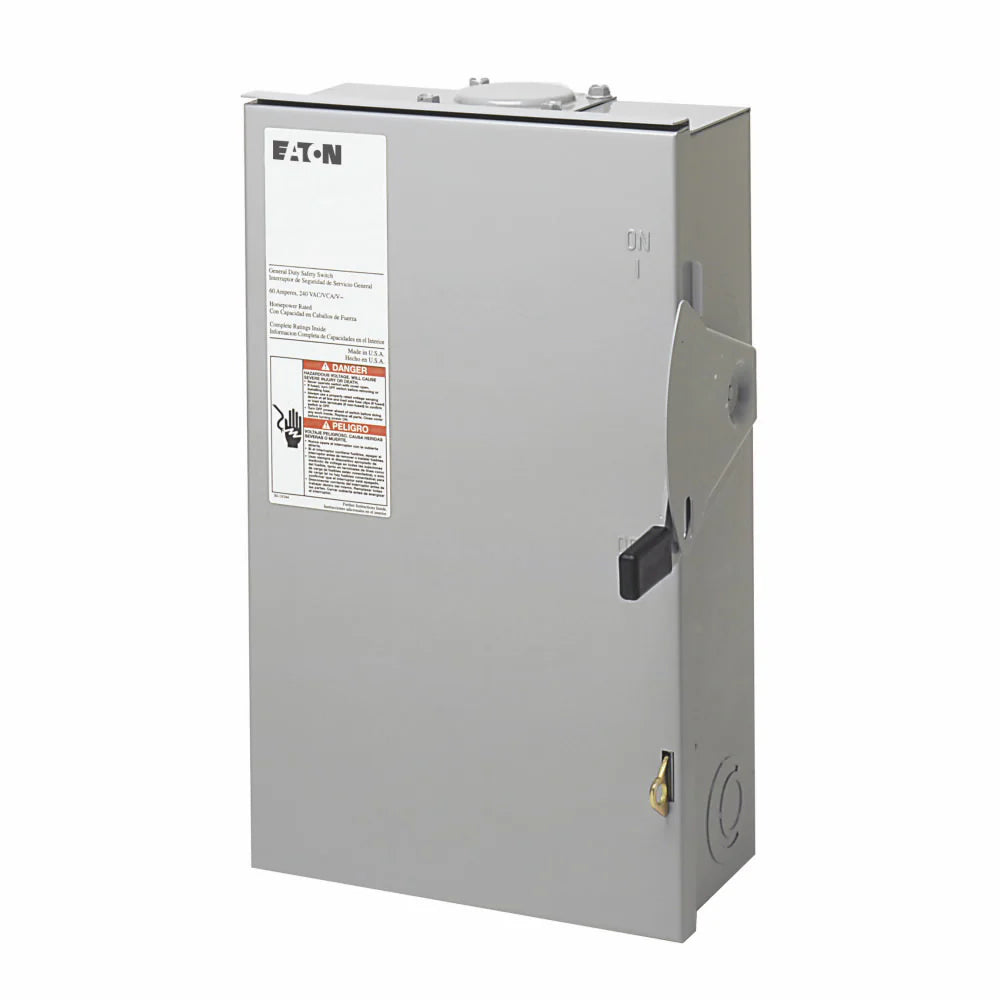

Eaton DG322URB DG Series Non-Fusible Rainproof General Duty Safety Switch, 240 VAC, 60 A, 10 hp, 15 hp, TPST Contact, 3 Poles

Product Description

The Eaton DG322URB is a general duty non-fusible safety switch designed for maximum operational reliability. Rated for 240 volts at 60 amps, this three-pole and three-wire device is ideal for light duty motor circuits and service entrance applications. It includes a rainproof NEMA 3R enclosure, making it suitable for both residential and commercial settings.

• Non-fusible switch rated for 60 A at 240 VAC
• Constructed from painted galvanized steel for durability
• Panel mounting with TPST contact form for easy installation

Product Highlights

This switch is designed to handle multiple applications, providing a reliable option for service entrances and circuits that require safety disconnects.

Product Information

Standard Information

• Type: Non-Fusible Rainproof
• Voltage Rating: 240 VAC

Technical Specifications

• Amperage Rating: 60 A
• Number of Poles: 3
• Number of Wires: 3
• Phase: 1/3
• Material: Steel
• Finish: Painted Galvanized
• Dimensions: 6.41 in L x 8.4 in W x 7.5 in H
• Horsepower: 10 hp, 15 hp
