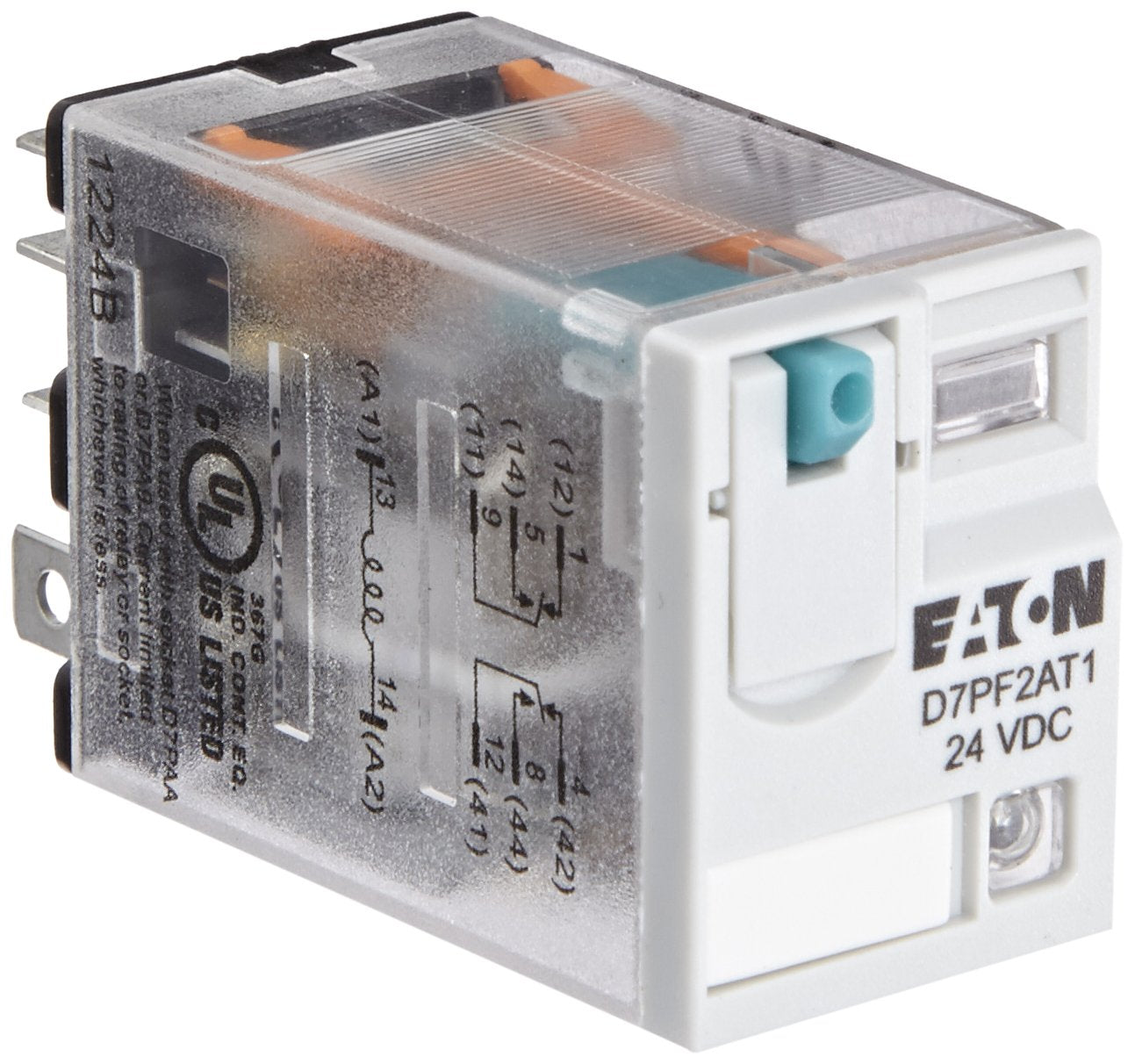

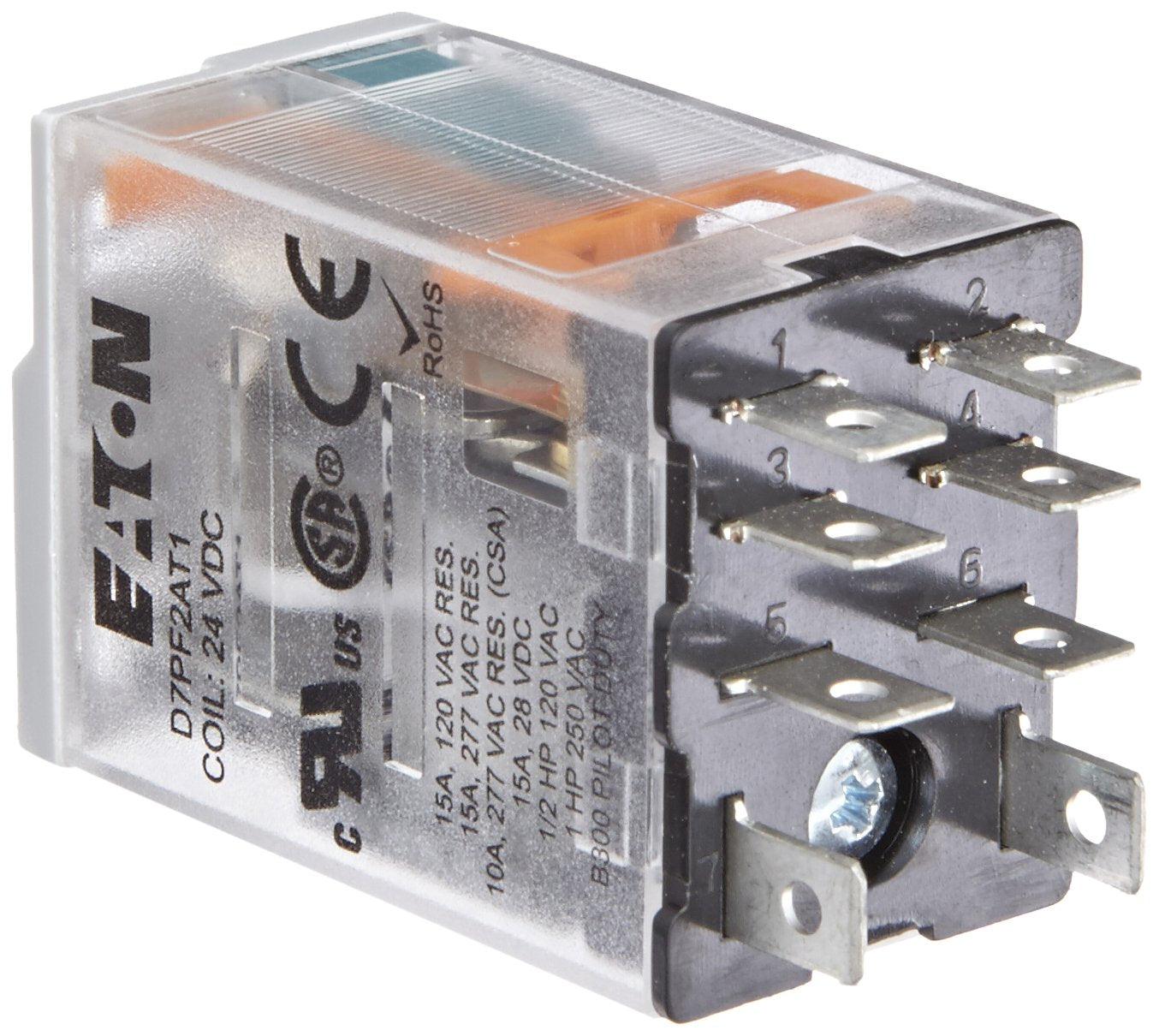

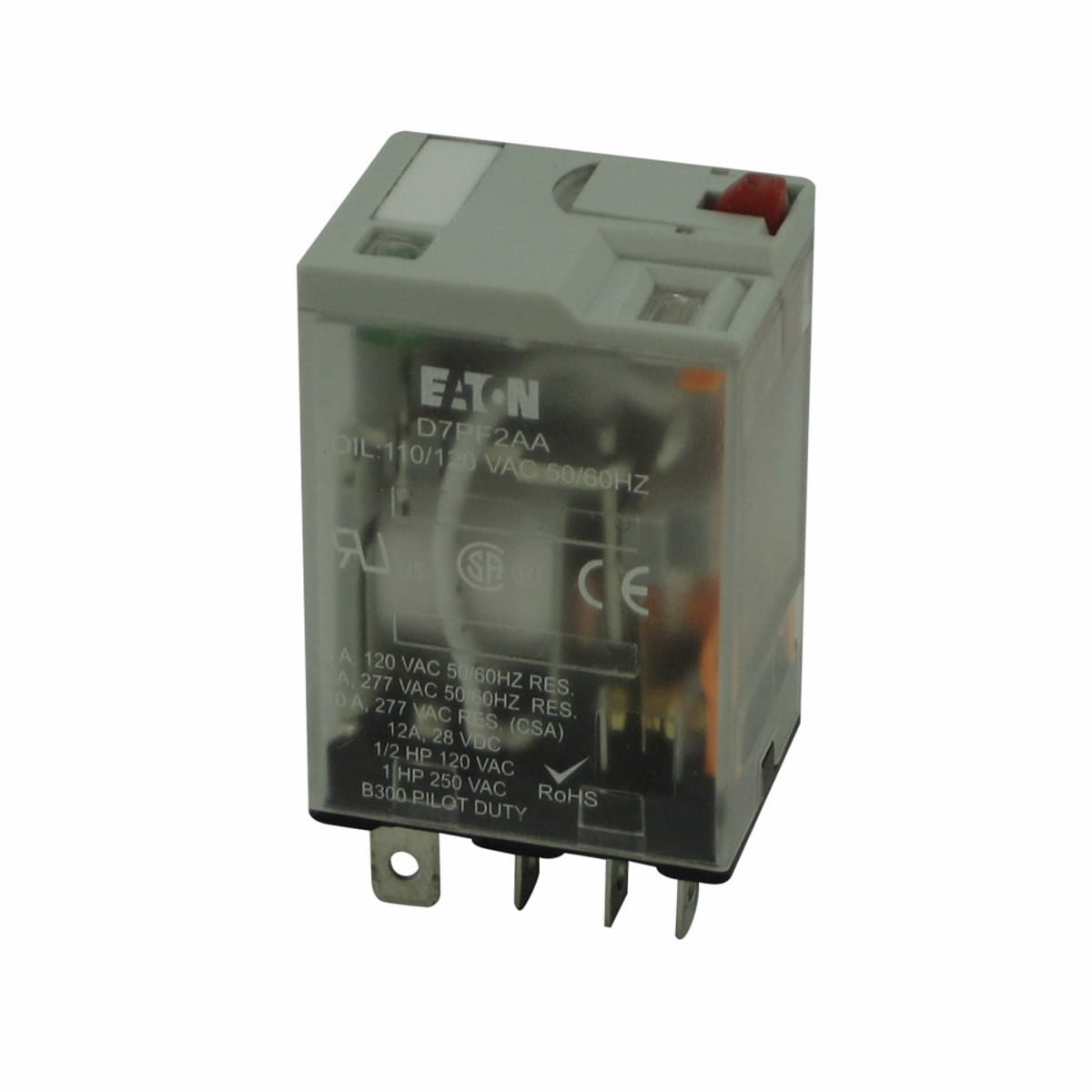

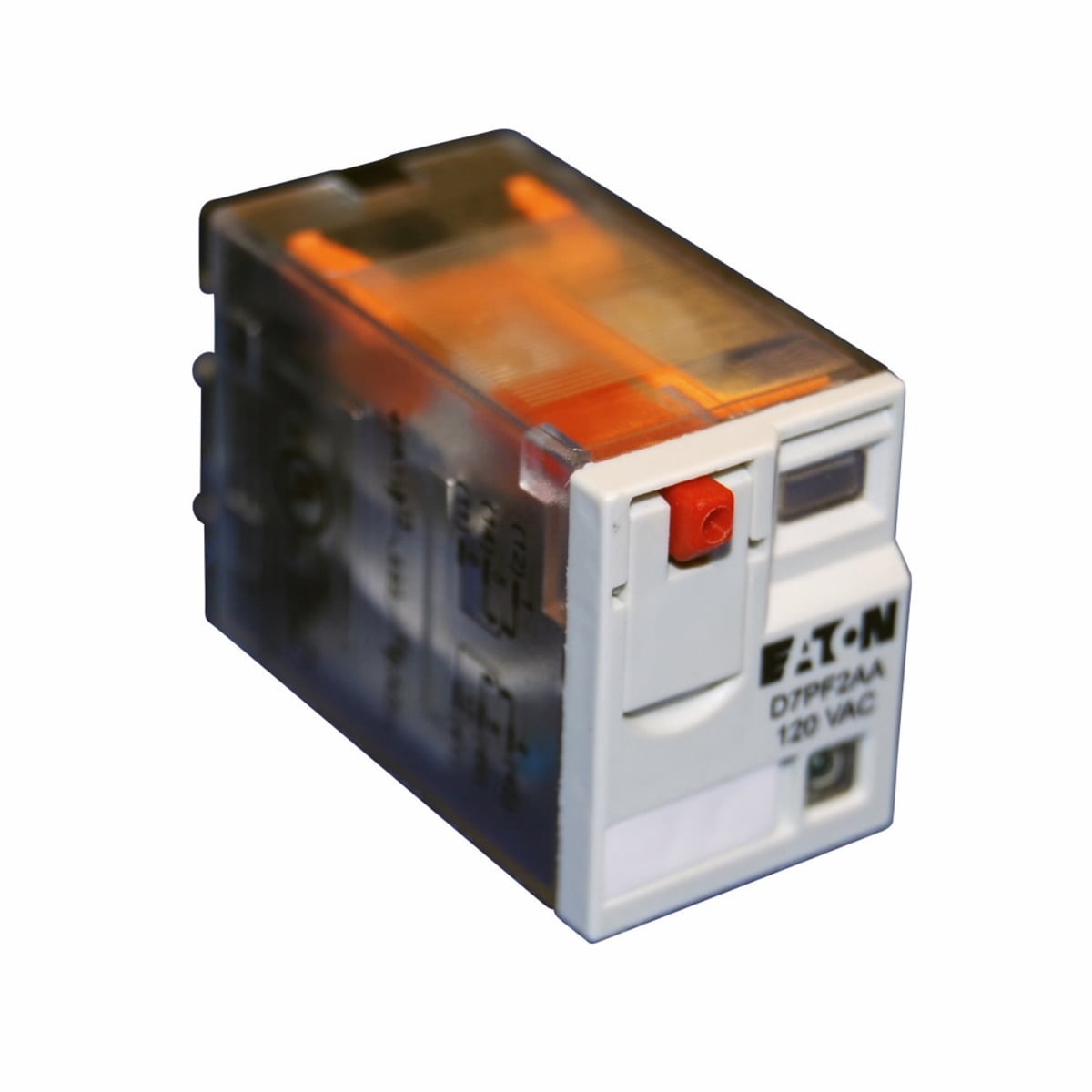

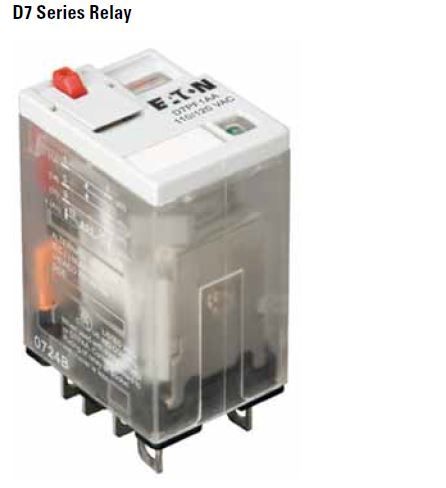

Eaton D7PF2AT1 D7 Series General Purpose Plug-In Relay 1 to 3 hp (8-Blade)

Product Description

Eaton D7PF2AT1 is a D7 series general-purpose plug-in relay with a 24 VDC coil and 650 ohm coil resistance. It provides DPDT (double-pole, double-throw) switching with silver alloy contacts rated at 15 A and an IP40 enclosure. The relay features plug-in 8-blade terminals, LED status indication and a push-to-test/manual operation function for control and automation applications in HVAC, appliances, and commercial control circuits.

• 24 VDC coil, 650 ohm coil resistance; bi-polar LED status lamp and push-to-test/manual operation
• DPDT contact configuration with silver alloy contacts rated 15 A and up to 300 V switching
• 8-blade plug-in terminal; IP40 enclosure; mounting options include DIN rail, flange or panel via appropriate socket

Product Highlights

DPDT 15 A contacts; 24 VDC coil (650 ohm); 8-blade plug-in base; IP40; UL/CSA/CE/RoHS certified

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: D7PF2AT1
• Country of Origin: China

Technical Specifications

• Manufacturer Part Number: D7PF2AT1
• Brand: Eaton
• Series: D7 Series
• Product Type: General-purpose relay
• Coil Voltage: 24 VDC
• Coil Resistance: 650 ohm
• Coil Type: DC
• Contact Configuration: DPDT (double-pole, double-throw)
• Number of Poles: 2
• Contact Rating: 15 A
• Contact Material: Silver alloy
• Terminal Type: 8-blade plug-in
• Mounting Type: DIN Rail / Flange / Panel / Plug-in socket
• Enclosure Rating: IP40
• Maximum Switching Voltage: 300 V
• Frequency Rating: 60 Hz
• Operating Temperature: -40 to 131 deg F
• Dimensions: 1.54 in L x 1.10 in W x 0.83 in H
• Weight: 0.06 lb (23 g)
• Standards / Certifications: cRUus; UL Listed file E37317; UL Listed file E65657; CSA file No. LR217017; CSA file No. LR217069; CE Marked; RoHS Compliant
• Electrical Life: 100,000 operations
• Mechanical Life: 10,000,000 operations
• Response Time: 20 ms
• Vibration Resistance: 3 g at 10 to 55 Hz
• Shock Resistance: 10 g
• Features / Options: LED status indicator; flag indicator; push-to-test/manual operation; removable ID tag
