Eaton D3RF3B General-purpose relay 240VAC

Product Description

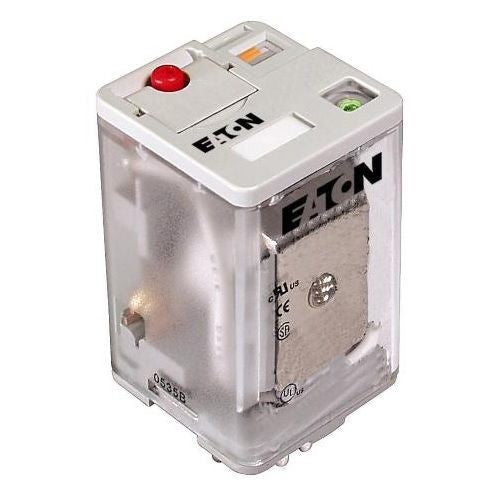

The EATON D3RF3B is a general-purpose relay with an octal base design. This 3PDT relay features rigid pins for easy installation. The relay has a 240VAC coil and a 10A rated operational current. It is suitable for various applications requiring reliable switching and control.

• Contact operation can be easily checked by push to test button
• Flag indicator shows relay status in manual or powered condition
• LED status lamp shows coil ON or OFF status - ideal for use in low light applications

Product Highlights

Features include a push-to-test button, flag indicator, and LED status lamp for easy monitoring and operation.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: D3RF3B

Technical Specifications

• Mounting: SOCKET
• Number of poles: Three-pole
• Rated operational current: 10
• Voltage rating: 300 V
• Number of pins: 8
• Resistive load: 10
• Voltage - max: 300
• Product Length/Depth: 3 in
• Product Height: 1.5 in
• Product Width: 1.5 in
• Certifications: CSA
• Product Type: General-purpose relay
• Frequency Rating: 50/60 Hz
• Mounting Type: DIN Rail/Panel/Socket
• Number Of Poles: 3
• Amperage Rating: 16 A
• Coil Voltage: 240 V
• Contact Form: 3PDT
• Enclosure Type: IP40
• Power Rating: 1/3 hp, 1/2 hp
• Series: D3RF Series
• Temperature Rating: -40 to 131 deg F
• Terminal Type: Octal/Plug-In
• Type: General Purpose Relay, 3PDT
• Standard & Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL Listed, cULus Recognized, CSA Certified, CE Marked
• Poles: 3
• Amps: 10
• Volts AC Control: 240
• Terminals: 11 Pin
• Coil Volts: 220/240 VAC
• Contact Configuration: 3PDT
• Contact Material: Silver Alloy
• Indicators: Flag Indicator
• Relay Throws: Double Throw
• Relay Mounting: Socket
• Relay Poles: Three Pole
• Component: Plug In Unit-Ice Cube Relay
• Relay Load Amperage: 10 Amp
• Coil Voltage Rating: 240 Volt
• Manufacturer: Eaton
