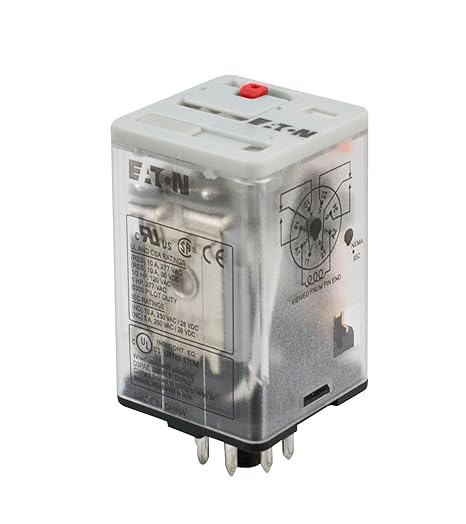

EATON D3RF3A General-purpose Relay 10 A 120VAC

Product Description

The Eaton D3RF3A is a reliable general-purpose relay with an octal base design. This versatile ice cube relay features a 120 VAC coil and a 10 A contact rating, making it suitable for various applications. It has a 3PDT contact configuration, designed for socket mounting with plug-in terminals.

• Simple operation check with a push-to-test button
• Visual status indicator for manual or powered conditions
• Integrated LED for ON or OFF coil status, ideal for dim environments

Product Highlights

The Eaton D3RF3A relay ensures efficient and effective operation in numerous settings where reliable switching is essential.

Product Information

Standard Information

• Product Name: Eaton General-purpose relay
• Catalog Number: D3RF3A

Technical Specifications

• Coil Voltage: 120 VAC
• Contact Rating: 10 A
• Enclosure Type: IP40
• Temperature Rating: -40 to 131 degrees F
• Contact Configuration: 3PDT
• Base Type: Octal
• Contact Material: Silver
• Number of Pins: 11
