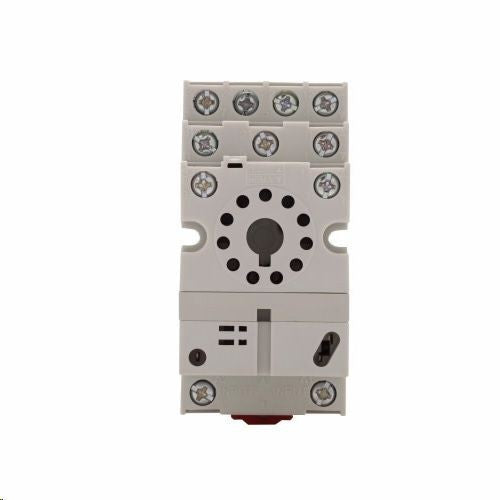

Eaton D3PA7 General-purpose relay socket 600V 5A

Product Description

The EATON D3PA7 is a general-purpose relay socket designed for use with D3PR3, D3PF3, and D3PR5 relays. This Size A module features a finger-safe design and an IP20 enclosure. It supports DIN rail or panel mounting and utilizes screw clamping for wiring connections. Rated for 600V and 5A.

• Protection category (finger safe)
• Screw clamping wiring connection
• Suitable for use with D3PR3, D3PF3, and D3PR5 Relays

Product Highlights

The EATON D3PA7 relay socket provides a secure and reliable connection for general-purpose relay applications, with easy installation and a finger-safe design.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: D3PA7
• Country of Origin: India

Technical Specifications

• Type: General Purpose Relay Socket
• Mounting: DIN rail, screw
• Rated operational current: 5A nominal
• Used with: D3PR3, D3PF3, and D3PR5 relays
• Enclosure: IP20
• Module size: A
• Nominal voltage: 600 V
• Series: D3
• Wiring connection: Screw clamping
• Number of Pins: 11
• Voltage Rating: 600 VAC
• Amperage Rating: 5 A
• Mounting Type: DIN Rail/Panel
• Standard & Approvals: UL Listed, CSA Certified, cRUus Listed
• Terminal Type: Screw Clamp
• Manufacturer Series: D3
• Number of Positions: 11
• Manufacturer: Eaton Electrical
• Termination Style: Screw Terminal
• Part Status: Active
• For Use With/Related Products: D3PF3, D3PR3 and D3PR5 Relays
• Features: 600V, 5A
