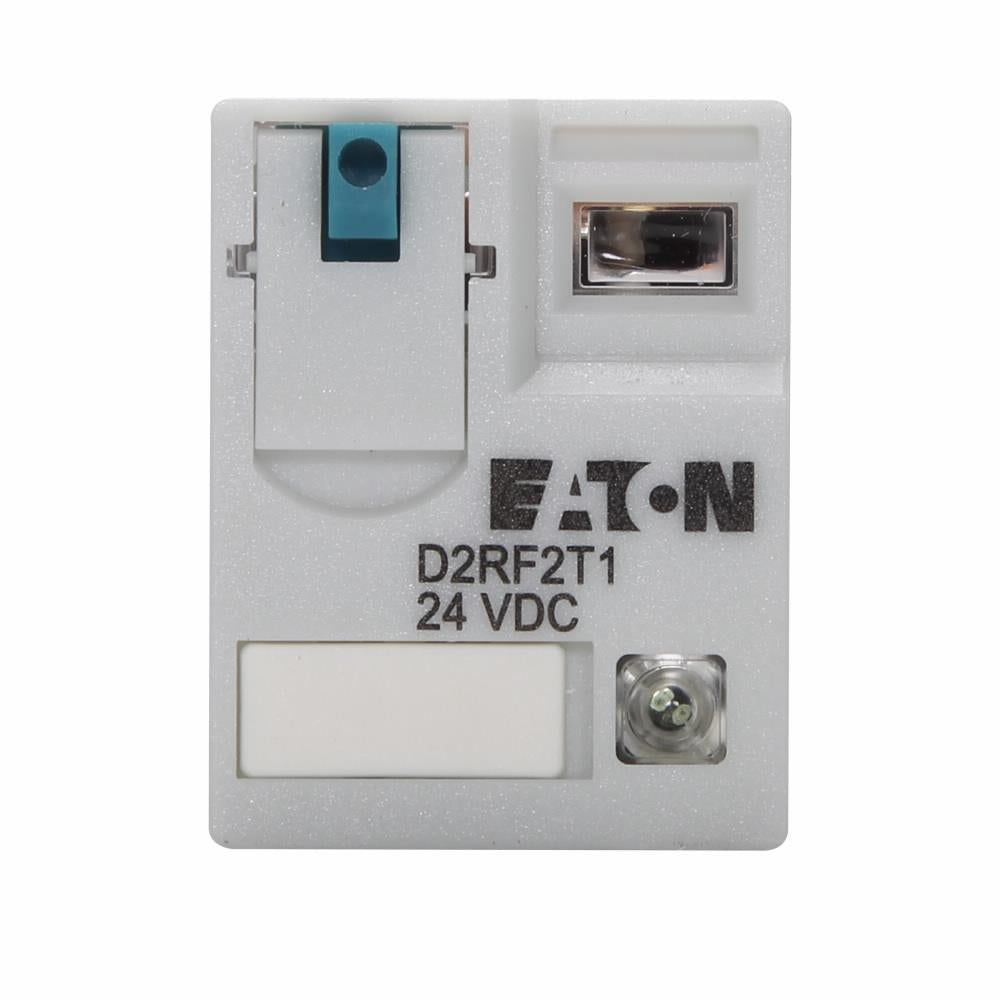

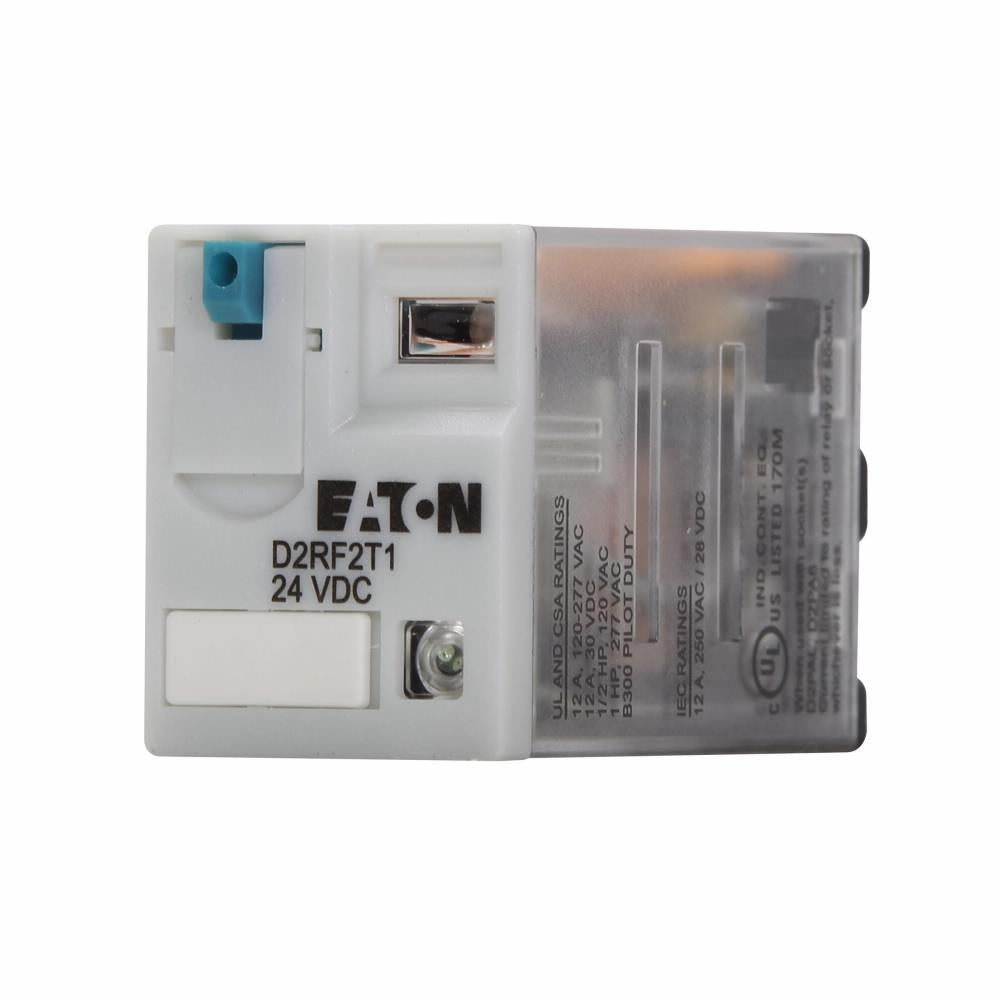

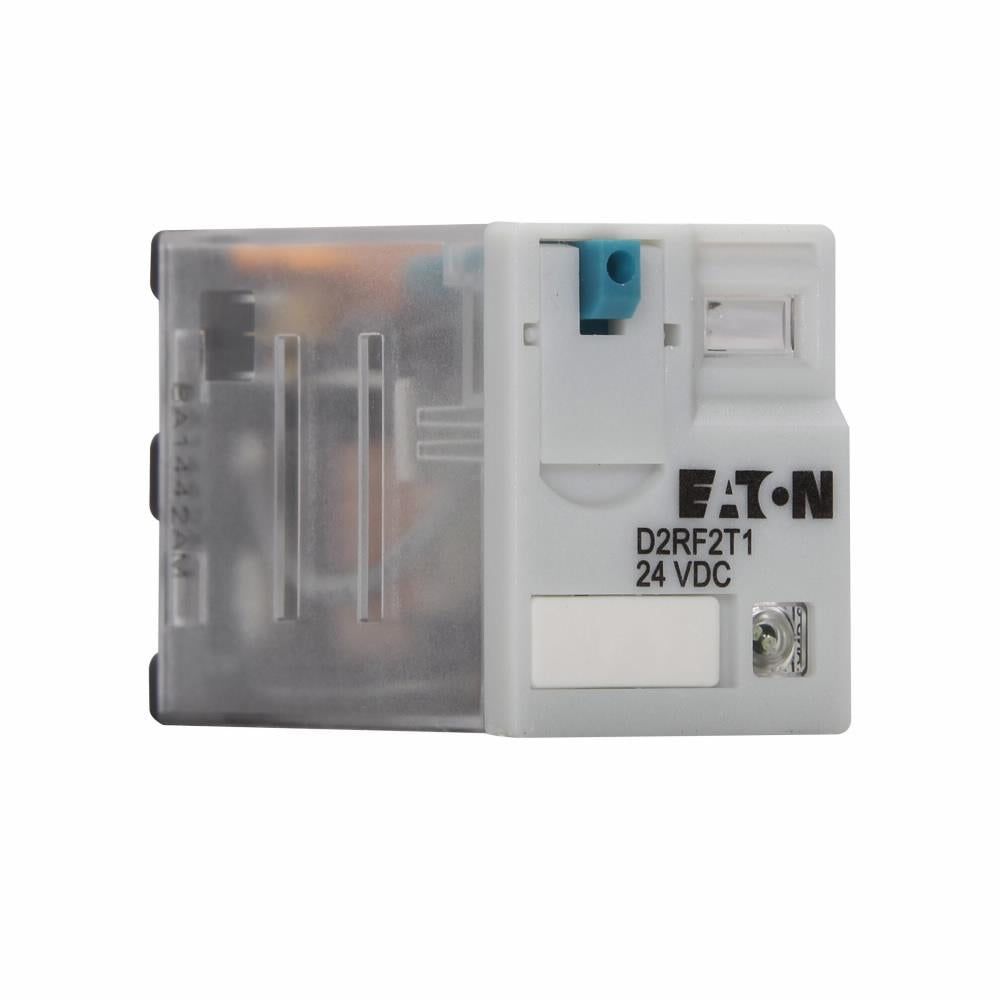

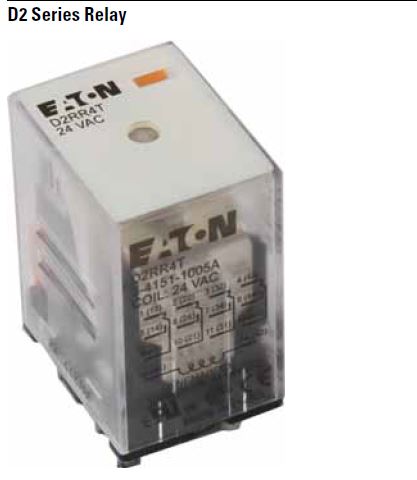

Eaton D2RF2T1 General Purpose Relay 24VDC

Product Description

The EATON D2RF2T1 is a compact line of relays with quick response time and long life. Available in DPDT configurations. This general purpose relay has a 24VDC coil, 12A contact, and 2 pole. It can be mounted on a DIN rail, flange, or panel with a plug-in terminal and an IP40 enclosure.

• Flag indicator shows relay status in manual or powered condition
• Bi-polar LED status lamp allows for reverse polarity applications shows coil on or off status and ideal in low light conditions
• Color coded pushbutton identifies AC coils with red or DC coils with blue pushbuttons

Product Highlights

The D2RF2T1 relay is ideal for testing control circuits and analyzing circuit problems.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: D2RF2T1

Technical Specifications

• Contact Rating: 12 A
• Enclosure Type: IP40
• Frequency Rating: 50/60 Hz
• Mounting Type: DIN Rail/Flange/Panel
• Number of Poles: 2
• Power Rating: 1/3 hp, 1 hp
• Series: D2 Series
• Temperature Rating: -40 to 131 deg F
• Terminal Type: Plug-In
• Type: Ice Cube Fixed Contact Full Featured
• Amperage Rating: 10 A
• Contact Form: DPDT
• Coil Voltage: 24 VDC
• Product Length/Depth: 2 in
• Product Height: 1 in
• Product Width: 1.2 in
• Compliances: RoHS Compliant CE Marked
• Certifications: UL Listed
• Product Type: General-purpose relay
• Coil Type: Non Latching
• Features: Lighted Indicator, Mechanical Indicator, Test Button
• Termination Style: Plug In
• Must Operate Voltage: 19.2 VDC
• Must Release Voltage: 2.4 VDC
• Operate Time: 20 ms
• Operating Temperature: -40 C ~ 55 C
• Contact Material: Silver Alloy
• Switching Voltage: 300VAC - Max
• Load - Max Switching: 3600VA
• Coil Resistance: 660 Ohms
• Coil Current: 36.4 mA
