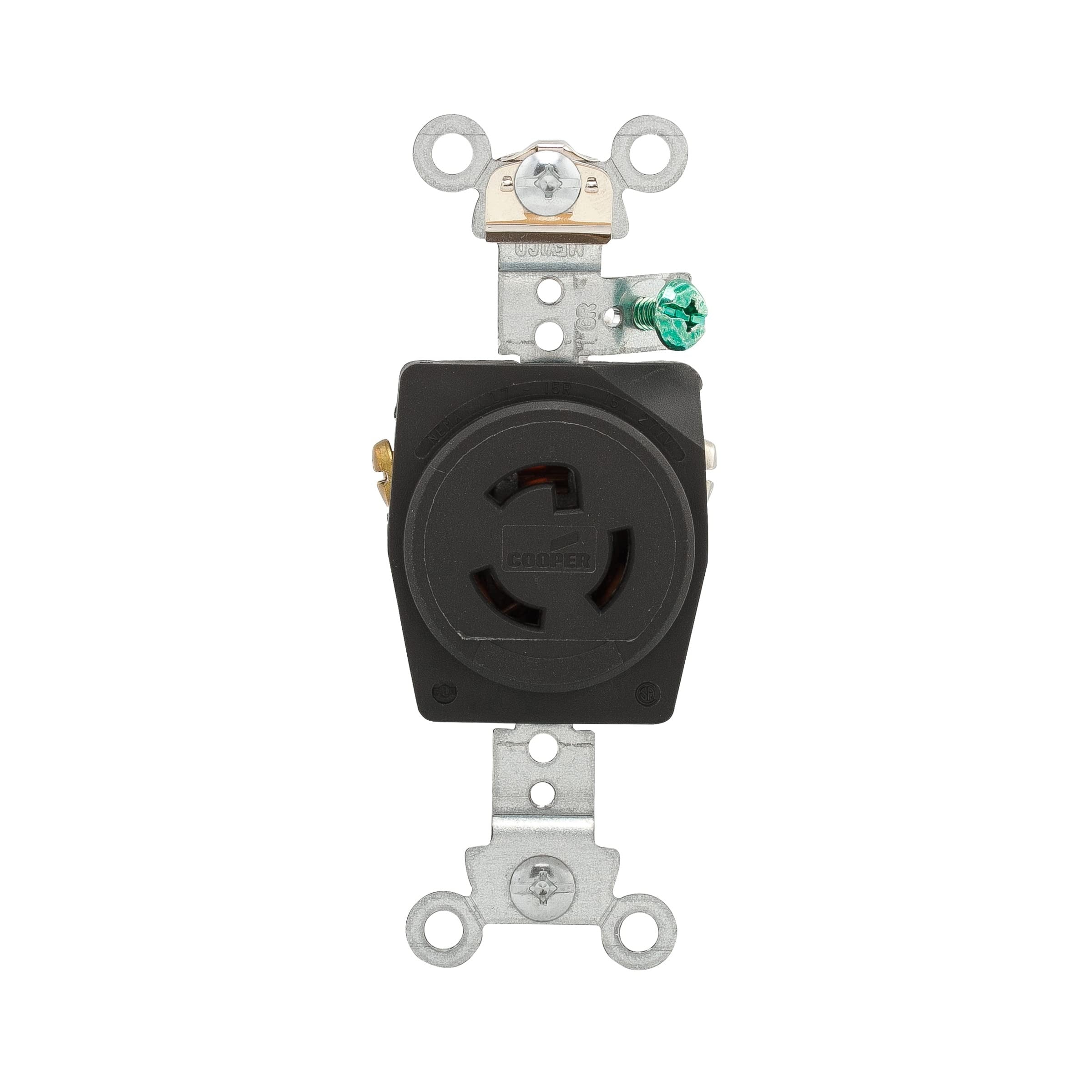

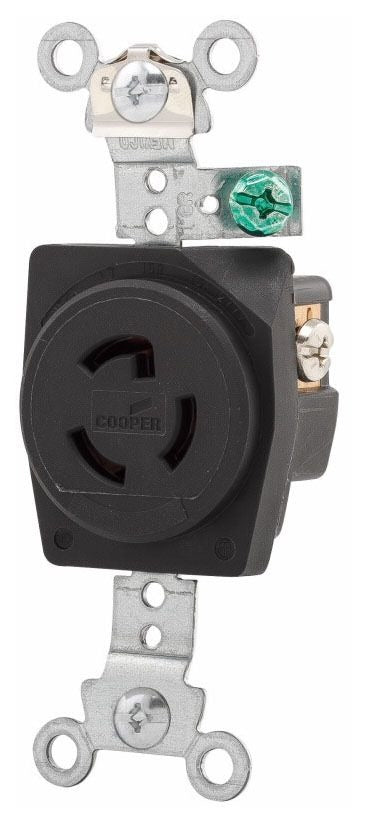

Eaton CWL715R Locking Receptacle 15A 277V (Single)

Product Description

The Eaton CWL715R is an industrial-grade locking receptacle (MPN CWL715R) rated 15 A at 277 VAC in a NEMA L7-15 2-pole, 3-wire configuration. It has a glass-filled nylon housing, one-piece brass contacts and back/side screw terminals for secure wiring. The device accepts 14 to 10 AWG copper conductors, operates from -40 to 60 °C, and measures 1.53 in W x 0.82 in D x 4.04 in H, suitable for industrial locking-device applications.

• Electrical rating: 15 A, 277 VAC; NEMA L7-15 configuration, 2-pole, 3-wire
• Construction: glass-filled nylon body with one-piece brass contacts and back/side screw terminals
• Wire range and environment: accepts 14 to 10 AWG copper conductors; operating temperature -40 to 60 °C

Product Highlights

Industrial locking receptacle, NEMA L7-15, one-piece brass contacts, back/side wiring

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CWL715R
• Country of Origin: Mexico
