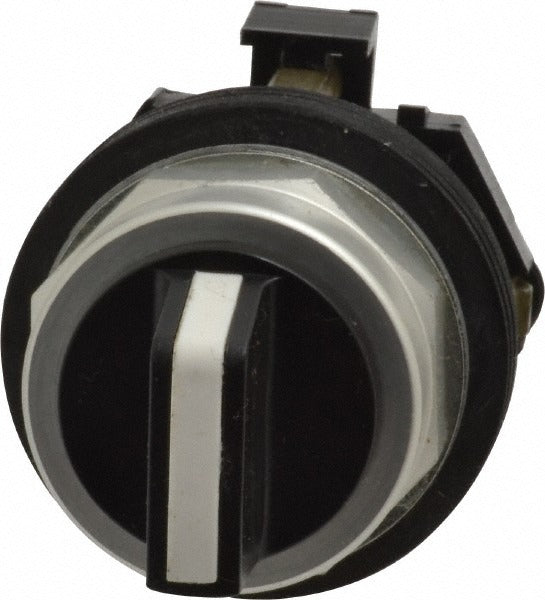

Eaton Cutler-hammer HT8JXH1D 3-position Selector Switch

Product Description

The EATON CUTLER-HAMMER HT8JXH1D is a three-position selector switch designed for industrial and commercial control panel applications. It features a momentary-maintained-momentary (MO-MA-MO) operation sequence controlled by a black knob operator. The switch carries an IP65 ingress protection rating and meets NEMA 12, 13, 3, 3R, 4, and 4X enclosure requirements, making it suitable for oil-tight and water-resistant installations. Weighing 0.3 pounds, it is a compact, non-illuminated component intended for installation by licensed electricians and panel builders working in demanding environments.

This selector switch is used in industrial control panels, machine tool enclosures, and process equipment where a three-position momentary-maintained-momentary switching sequence is required. Its oil-tight and water-resistant construction makes it appropriate for washdown areas, outdoor enclosures, and environments with airborne contaminants. It is suited for both new panel builds and replacement service in existing control systems.

Key Features

• Three-position operation: Momentary left, Maintained center, Momentary right (MO-MA-MO)
• IP65 ingress protection rating - oil-tight and water-resistant
• NEMA 12, 13, 3, 3R, 4, and 4X rated for versatile enclosure compatibility
• Black knob operator, non-illuminated
• Listed to CSA C22.2 No. 14 File LR68551 and UL 508 File E131568

Compatibility

Designed as an OEM-style replacement or new-installation selector switch for NEMA-rated industrial control enclosures requiring a three-position knob-operated selector with momentary-maintained-momentary action.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements and local codes. De-energize the control panel and verify the absence of voltage before removing or installing any control components. Confirm the mounting cutout dimensions and enclosure NEMA rating are compatible with this switch before installation. Do not exceed the rated electrical load specified on the device or in the manufacturer documentation.
