Eaton Cutler-hammer HT8AAG Momentary Push-button Switch

Product Description

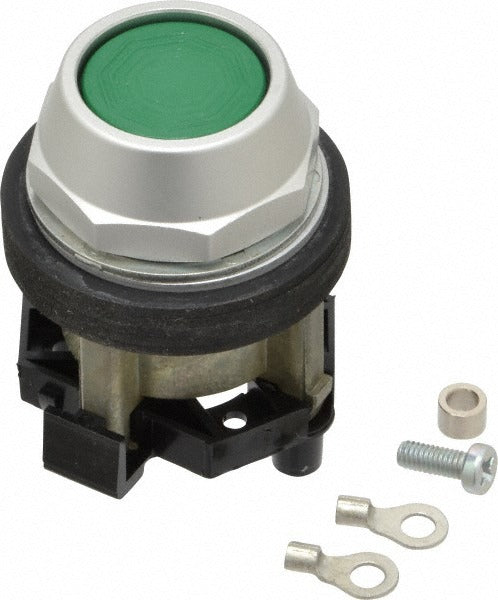

The EATON CUTLER-HAMMER HT8AAG is a momentary push-button switch rated for 5 to 28 volts, designed for industrial and commercial control panel applications. It features a green, round, flush-style button with screw terminal connections and a non-illuminated operator. The switch carries UL 508 and CSA C22.2 No. 14 listings and is built with anti-corrosive, oiltight, and watertight resistance properties. Weighing 0.3 pounds, it is a compact, single-unit component suited for use by electricians and control panel builders working in demanding environments.

This switch is used in industrial control panels, machine tool enclosures, and process equipment where a momentary contact input is required. Its multi-NEMA rating makes it appropriate for both indoor and outdoor installations, including wash-down and wet locations. The flush button profile reduces the risk of accidental actuation, making it a common choice for start, stop, or jog functions in light-duty to heavy-duty electrical control circuits operating within the 5 to 28 volt range.

Key Features

• Momentary operation with green, round, flush push-button
• Screw terminal connections for secure, reliable wiring
• Anti-corrosive, oiltight, and watertight construction
• Non-illuminated operator for straightforward panel layouts
• NEMA ratings 1, 2, 3, 3R, 4, 4X, 12, and 13 covering a wide range of enclosure environments
• UL Listed (UL 508 File E131568) and CSA certified (CSA C22.2 No. 14 File LR68551)

Compatibility

Designed as an OEM-style replacement or new-installation push-button switch for industrial control panels and equipment requiring a momentary-contact, screw-terminal operator rated at 5 to 28 volts.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the control circuit and verify zero voltage with a meter before wiring or replacing the switch. Screw terminals should be tightened to the panel manufacturer specifications using an appropriate screwdriver. Confirm the enclosure NEMA rating matches the installation environment before mounting.
