Eaton Cutler-hammer E22P3 Push-button Switch 25mm Momentary

Product Description

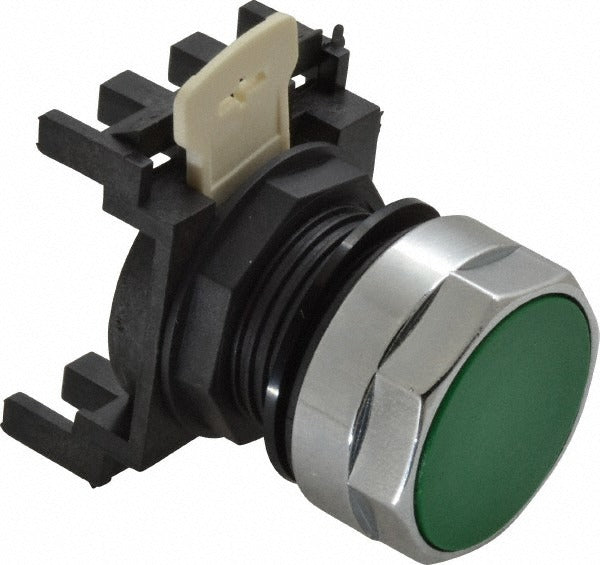

The EATON CUTLER-HAMMER E22P3 is a momentary push-button switch designed for industrial and commercial control panel applications. It features a round, flush-style green plastic operator with a 25 mm mounting hole diameter and non-illuminated construction. When pressed, the switch actuates momentarily and returns to its default state upon release. Weighing just 0.1 pounds, it is a compact, lightweight component suited for machine control, motor starter stations, and operator interface enclosures. Installation is handled by licensed electricians or qualified control panel technicians working on low-voltage control circuits.

The E22P3 is intended for use in industrial control panels, machinery, and equipment requiring a momentary green push-button operator. Its 25 mm mounting hole diameter fits standard 25 mm cutouts found in NEMA-rated enclosures. The green color convention is widely used to signal start, run, or enable functions in motor control and process automation applications. This switch is suitable for both indoor and outdoor rated enclosures given its multi-NEMA rating.

Key Features

• Momentary (MO) operation - returns to default state when released
• Round, flush-style green plastic operator for standard start or enable signaling
• 25 mm mounting hole diameter fits standard industrial control panel cutouts
• Non-illuminated design for simplified wiring in cost-sensitive applications
• NEMA 3, 3R, 4, 4X, 12, and 13 rated for indoor and outdoor enclosure use
• UL Listed to meet common electrical code requirements

Compatibility

Designed as an OEM-style replacement or new-installation push-button operator for industrial control panels using standard 25 mm mounting hole cutouts.

Installation Notes

Installation should be performed by a qualified electrician or control panel technician in accordance with the National Electrical Code (NEC). De-energize and lock out the control panel before mounting or wiring the switch. Verify that the panel cutout matches the 25 mm mounting hole diameter before installation. Do not exceed the rated voltage and current specifications for the switch contacts.
