Eaton Cutler-hammer E22P1 Push-button Switch 25mm Momentary

Product Description

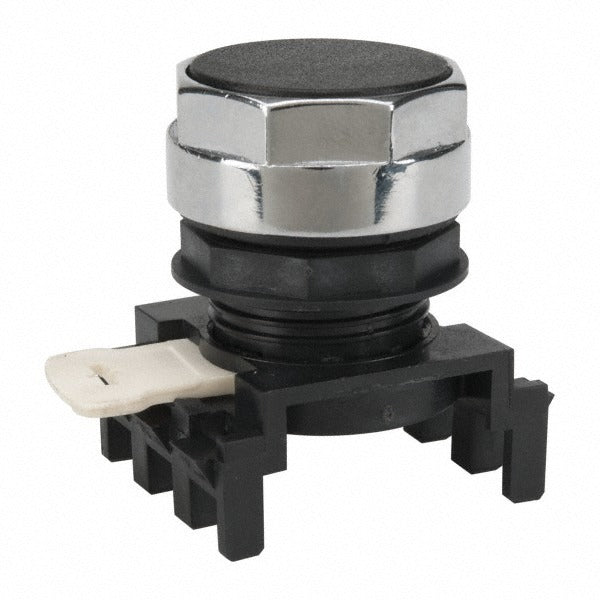

The EATON CUTLER-HAMMER E22P1 is a 22 mm series push-button switch designed for industrial control panel applications. It features a flush-mount, round, black plastic pushbutton with a momentary (MO) operation type, meaning it returns to its default state when released. The switch mounts through a 25 mm diameter panel hole and carries a UL Listed rating. At 0.1 pounds, it is a compact, lightweight component suited for machine builders, panel integrators, and licensed electricians working on industrial or commercial control enclosures.

This switch is appropriate for use in industrial control panels, motor control centers, and general-purpose electrical enclosures where momentary operator input is required. Its NEMA ratings cover a wide range of environments, making it suitable for both indoor and select outdoor or washdown applications. The non-illuminated flush pushbutton is a standard configuration used in applications where indicator lighting is not required and a clean, low-profile operator is preferred.

Key Features

• Momentary (MO) operation - returns to neutral when released
• 25 mm mounting hole diameter for standard industrial panel cutouts
• Flush-mount, round black plastic pushbutton - non-illuminated
• NEMA 12, 13, 3, 3R, 4, and 4X ratings for broad environmental protection
• UL Listed for compliance with industrial electrical codes
• Lightweight at 0.1 pounds - easy to handle during panel assembly

Compatibility

Designed as an OEM-style replacement or new-installation push-button operator for 22 mm series industrial control panel switch assemblies requiring a 25 mm mounting hole.

Installation Notes

Installation should be performed by a licensed electrician or qualified industrial control panel technician. De-energize and lock out the control panel per LOTO procedures before installing or replacing any switch operator. The switch mounts through a 25 mm panel cutout and should be secured according to the manufacturer torque specifications in the product data sheet. Reference NEC Article 430 and applicable NEMA enclosure ratings when selecting this component for specific environmental conditions.
