Eaton Cutler-hammer E22HDB2 Illuminated Pushbutton Operator

Product Description

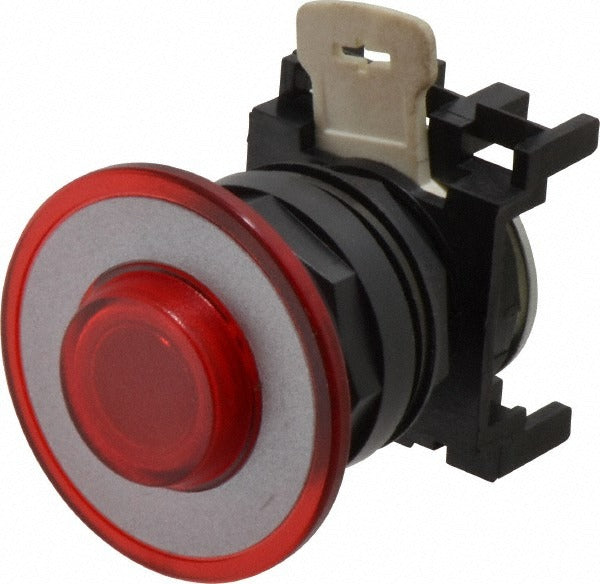

The EATON CUTLER-HAMMER E22HDB2 is an illuminated pushbutton switch operator designed for use in industrial and commercial control panel applications. This round, red plastic operator mounts to compatible pushbutton stations and indicating light assemblies, providing a clear visual status indication alongside manual switching action. Weighing 0.1 pounds, it is a lightweight component suited for flush or surface-mount control enclosures. Licensed electricians and panel builders typically install this operator as part of a control circuit assembly.

The E22HDB2 is intended for use with pushbutton operator stations and indicating lights in industrial control panels, machine control systems, and process automation enclosures. Its red illuminated round button makes it well suited for stop functions, alarm acknowledgment, or status indication on control panel faces in both light industrial and heavy commercial environments.

Key Features

• Illuminated operator provides built-in visual status indication at the button
• Round button profile for standard pushbutton cutout mounting
• Red color for clear identification of function at the panel face
• Plastic construction keeps weight minimal at 0.1 pounds
• Compatible with indicating lights and pushbutton assemblies as a switch accessory

Compatibility

Designed for use with indicating lights and pushbutton operator assemblies as a switch accessory component. Specific compatible base units and contact blocks are not listed in available product data - verify fitment against the host pushbutton station series before ordering.

Installation Notes

Installation is typically performed by a licensed electrician during control panel assembly or maintenance. De-energize and lock out the panel per NFPA 70E procedures before removing or installing any pushbutton operator. Confirm the operator mounting diameter and thread engagement match the host station before seating the component. Do not force the operator into the mounting hole, as plastic threads can be damaged by overtightening.
