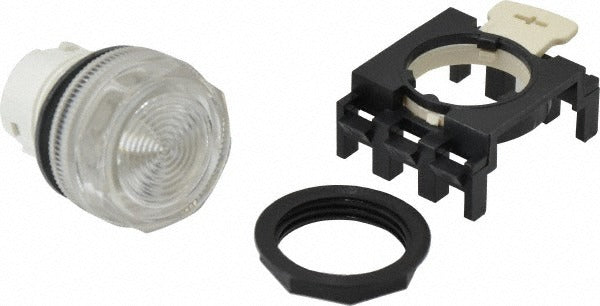

Eaton Cutler-hammer E22H0 Pilot Indicator Light Lens 25mm

Product Description

The EATON CUTLER-HAMMER E22H0 is a round, clear replacement lens designed for use with pilot and indicator light assemblies. This lens covers and protects the light source inside the assembly while allowing full visibility of the indicator status. It measures 25 millimeters in diameter, making it a standard fit for 22mm pilot light bodies. Electricians and panel builders working on control panels, machine interfaces, and industrial enclosures install this component as a routine maintenance or upgrade item. The clear finish provides unobstructed light transmission for straightforward status indication.

This lens is suited for use in industrial control panels, motor control centers, and machine operator stations where 22mm pilot and indicator lights are installed. It is a light accessory component intended for service replacement or initial assembly builds in both commercial and industrial applications. Facilities maintenance technicians and licensed electricians are the typical installers.

Key Features

• Clear lens for unobstructed indicator light visibility
• 25mm lens diameter fits standard 22mm pilot light bodies
• Round profile for drop-in replacement in compatible assemblies
• Lightweight construction at 0.1 pounds
• Sold individually for single-unit service replacement

Compatibility

Designed as an OEM-style replacement lens for 22mm round pilot and indicator light assemblies commonly used in industrial control panel applications.

Installation Notes

Installation of pilot light lenses should be performed by a qualified electrician following applicable NEC guidelines. De-energize the control panel and verify the circuit is at zero voltage before removing or installing any lens or light component. Lenses are typically secured by a twist-lock or snap-fit mechanism on the pilot light body - consult the host fixture documentation for the correct removal method. Do not force the lens into place, as this can crack the lens or damage the retaining ring.
