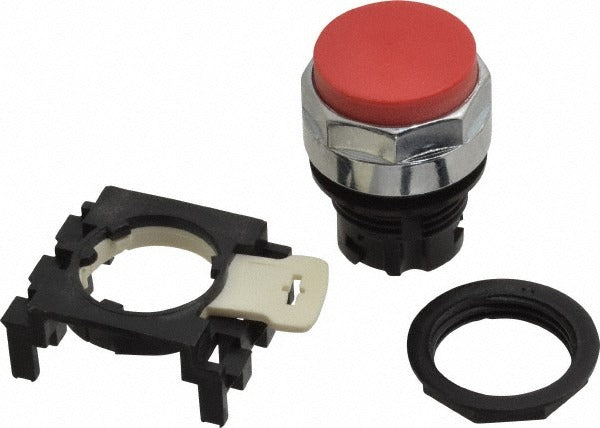

Eaton Cutler-hammer E22E2 Momentary Push-button Switch

Product Description

The EATON CUTLER-HAMMER E22E2 is a momentary push-button switch designed for industrial and commercial control panel applications. It features a 25 mm mounting hole diameter, a red round extended straight pushbutton, and a non-illuminated operator. The momentary (MO) operation type means the switch activates only while depressed and returns to its default state upon release. Constructed with a plastic pushbutton and rated for demanding environments, it carries UL Listing and achieves NEMA ratings of 12, 13, 3, 3R, 4, and 4X. Licensed electricians and control panel builders are the typical installers of this component.

This switch is suited for use in industrial control panels, machine tool enclosures, and commercial electrical equipment where a non-illuminated momentary pushbutton is required. The 25 mm mounting hole diameter is a standard size widely used across panel-mount operator interface stations. Its broad NEMA rating envelope makes it appropriate for both indoor and outdoor installations, including washdown and corrosion-resistant enclosure applications. It ships as a single unit and is intended for professional installation in low-voltage control circuits.

Key Features

• Momentary (MO) operation returns switch to default state when released
• 25 mm standard mounting hole diameter fits common panel cutouts
• Red round extended straight pushbutton for clear operator identification
• Non-illuminated operator reduces wiring complexity
• NEMA 12, 13, 3, 3R, 4, and 4X rated for indoor and outdoor enclosures
• UL Listed for compliance with applicable electrical standards

Compatibility

Designed as an OEM-style replacement or new-installation push-button operator for 25 mm control panel stations in industrial and commercial electrical systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize the control panel and verify zero voltage before mounting or wiring the switch. A standard 25 mm panel punch or knockout tool is required for new enclosure cutouts. Ensure the enclosure NEMA rating is compatible with the installation environment before finalizing the assembly.
