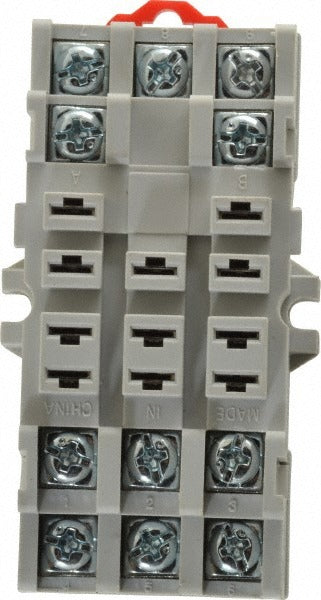

Eaton Cutler-hammer D5PA2-A2 Square Relay Socket 11 Pin

Product Description

The EATON CUTLER-HAMMER D5PA2-A2 is an 11-pin square relay socket designed for secure relay mounting in control panel and industrial automation applications. Rated at 300 VAC and 15 amps, this socket accepts compatible square-body relays and terminates connections via screw clamp terminals for reliable, vibration-resistant wiring. It supports both DIN rail mounting and panel mounting, giving installers flexibility depending on enclosure type. Electricians and control panel builders working on machine control, HVAC, or building automation systems will find this socket straightforward to wire and service.

This relay socket is used in residential and commercial control panels where square-body plug-in relays are required. It is well suited for HVAC control circuits, industrial machine wiring, and building automation panels. DIN rail mounting allows fast installation in standard enclosures, while the panel mount option accommodates custom cabinet layouts. Screw clamp terminals accept field wiring securely without requiring specialized tooling.

Key Features

• 11-pin configuration for compatible square-body relay bases
• Rated 300 VAC and 15 amps for control circuit applications
• Screw clamp terminals provide secure, tool-assisted wire termination
• Dual mounting options: DIN rail mount or panel mount
• Square socket shape ensures correct relay orientation and seating

Compatibility

Designed as an OEM-style replacement or new-installation socket for 11-pin square-body plug-in relays used in control panel and industrial automation applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements for control wiring. De-energize and lock out the panel before installing or removing the relay socket. Screw clamp terminals should be tightened to the terminal manufacturer specifications using an appropriate screwdriver. Verify relay pin configuration matches the socket before seating the relay body.
