Eaton CS8264EX Nylon Locking Connector 50A 250V (10 Pack)

Product Description

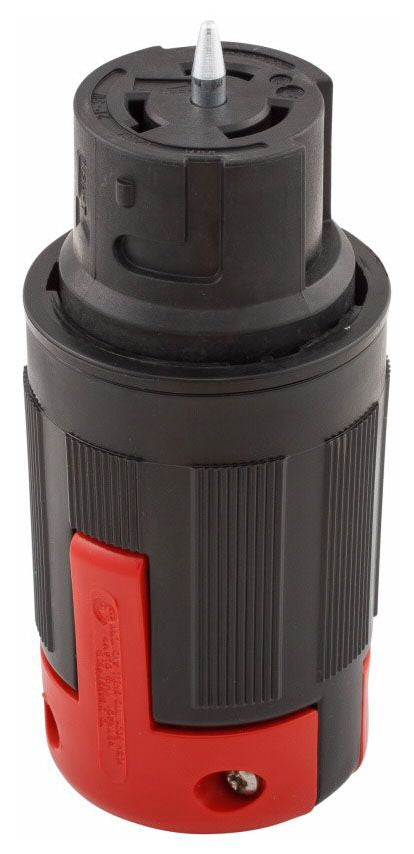

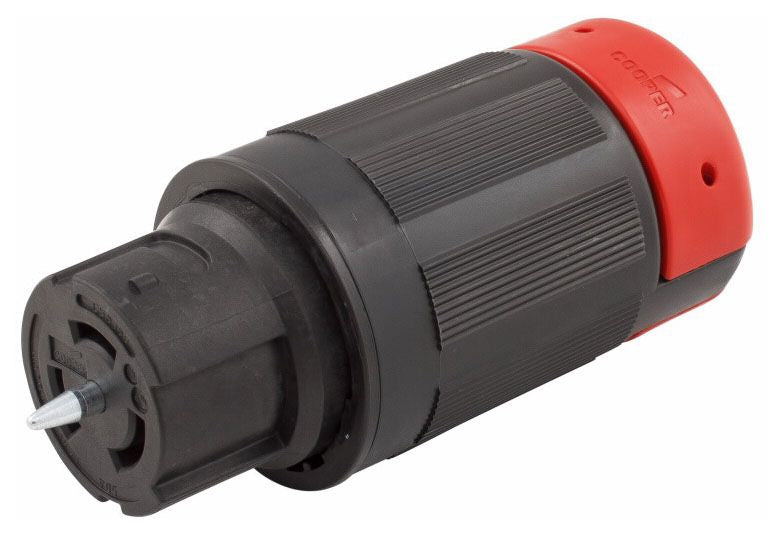

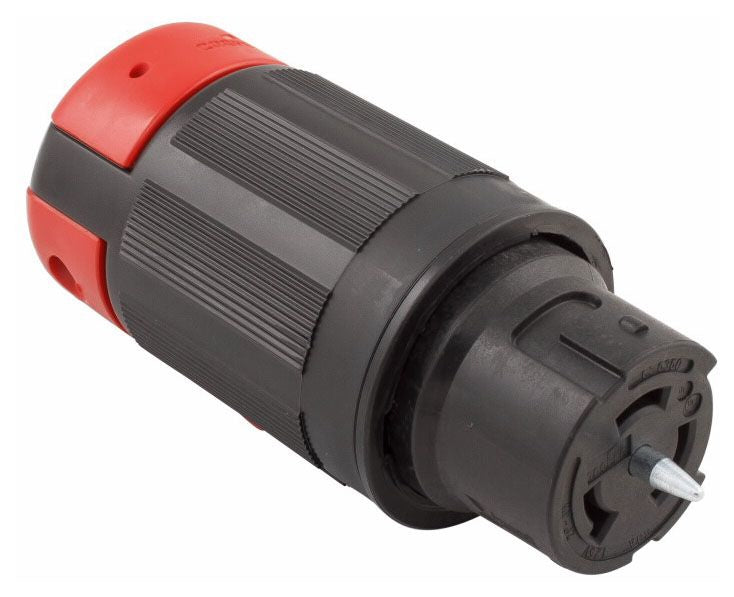

The Eaton CS8264EX is a locking device connector rated 50 A and 250 VAC, configured as 2-pole, 3-wire with grounding for industrial power connections. It features a polarized California-style, non-NEMA locking configuration with glass-filled nylon interior and rugged nylon exterior. The connector supports back wiring for 10 to 4 AWG conductors and cords 0.44 to 1.06 inches, is UL 498 listed, and operates from -40 to 105 °C.

• Rated 50 A, 250 VAC; 2 poles and 3 wires with grounding; non-NEMA polarized California style
• Glass-filled nylon interior and rugged nylon exterior; UL (Canada and US) listed to UL 498 and UL 94 V-0 flammability
• Back wiring; accepts wire sizes 10 to 4 AWG and cord diameters 0.44 to 1.06 in; temperature range -40 to 105 °C

Product Highlights

Locking 2P3W industrial connector, 50 A/250 VAC, back-wiring, UL 498 listed, wire size 10–4 AWG

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CS8264EX
• Country of Origin: Mexico

Technical Specifications

• Brand: Eaton
• Manufacturer Part Number: CS8264EX
• Product Type: Locking device connector (polarized California style)
• Voltage Rating: 250 VAC
• Current Rating: 50 A
• Number Of Poles: 2
• Number Of Wires: 3
• Ground Type: Grounding
• Material: Glass-filled nylon interior; rugged nylon exterior
• Cord Size: 0.44 to 1.06 in
• Wire Size: 10 to 4 AWG
• Wiring Type: Back wiring
• Temperature Rating: -40 to 105 °C
• Approvals: UL (Canada and US) listed (UL 498)
• Flammability Rating: UL 94 V-0
• Application: Industrial
• RoHS Compliant: Yes
• NAFTA Compliant: Yes
• Country Of Origin: Mexico
• Package Quantity: 10
• Weight: 1.0 lb
