Eaton CS6365EX CWD LKG PLUG AUTOGRIP 3P4W

Product Description

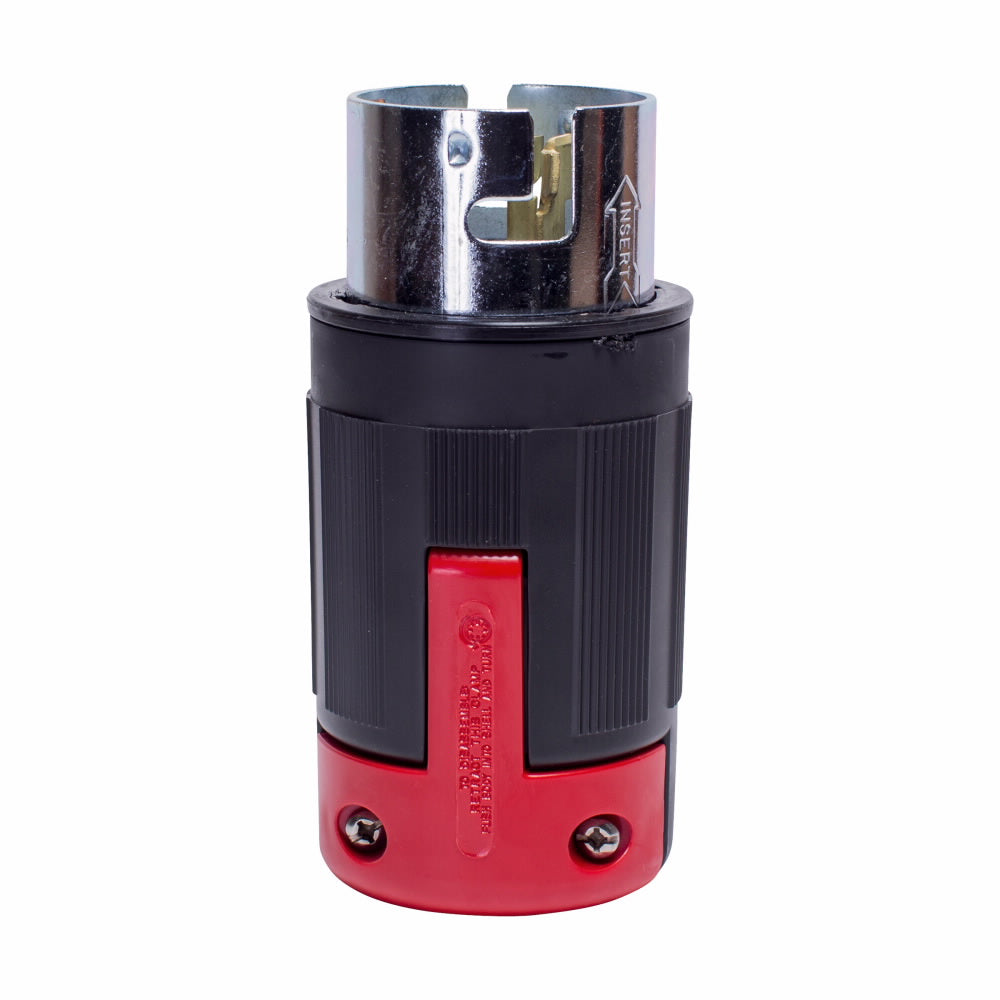

Eaton CS6365EX is a California Standard Pro-Grip locking plug suitable for various industrial applications. It operates at a voltage of one hundred twenty-five to two hundred fifty VOC and supports a maximum current of fifty amps. This plug features three poles and four wires, making it ideal for heavy-duty use in construction environments.

• Pro-grip design offers visual confirmation of secure assembly.
• Accepts cord diameters from zero point forty-four to one point zero-six inches.
• Temperature rating ranges from minus forty to one hundred five degrees Celsius.

Product Highlights

This locking plug combines strength and durability with industrial-grade certification. It is designed for environments demanding reliability and safety in electrical connections.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 03266466388

Technical Specifications

• Voltage Rating: 125/250 VAC
• Amperage Rating: 50 A
• Cord Diameter: 0.44 to 1.06 inches
• Type: California Standard Pro-Grip
• Number of Poles: 3
• Number of Wires: 4
• Material: Nylon
• Dimensions: 2.55 inches Dia x 5.35 inches H
• Temperature Rating: -40 to 105 degrees Celsius
• Standards/Approvals: cULus Listed, NAFTA Compliant
