EATON CS115V Heavy Duty Specification Grade AC Toggle Switch 120/277 V 15 A

Product Description

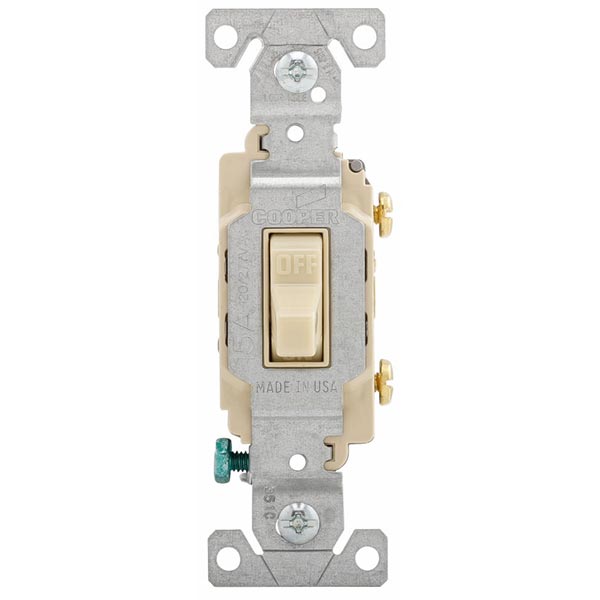

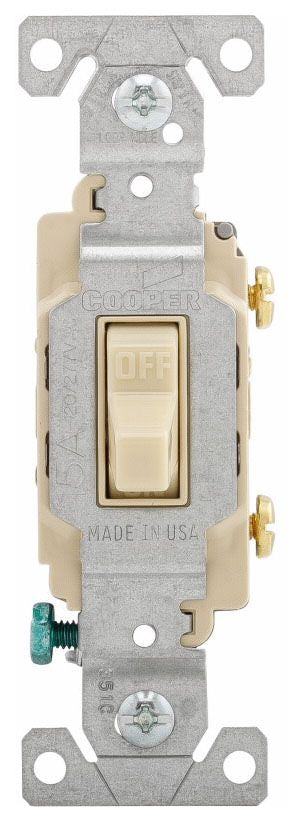

EATON CS115V is a heavy-duty specification grade AC toggle switch designed for commercial lighting applications. This switch operates at 120/277 volts and is rated for 15 amps. The product features a compact toggle actuator and side wire connection, ensuring a secure and reliable installation.

• Heavy-duty construction for long-lasting use
• 120/277 V voltage rating suitable for fluorescent and commercial lighting
• Meets UL and CSA standards for safety and performance

Product Highlights

The EATON CS115V toggle switch is ideal for use in commercial environments where durability and reliability are critical. It features a compact design, making it easy to fit in tight spaces.

Product Information

Standard Information

• Manufacturer: EATON
• Part Number: CS115V

Technical Specifications

• Voltage Rating: 120/277 V
• Amperage Rating: 15 A
• Power Rating: 1/2 hp at 120 VAC, 2 hp at 277 VAC
• Type: Toggle
• Number of Poles: 1
• Operating Cycles: 50000
• Material: PVC and Nylon
• Dimensions: 1.13 in width x 0.87 in depth
• Color: Ivory
