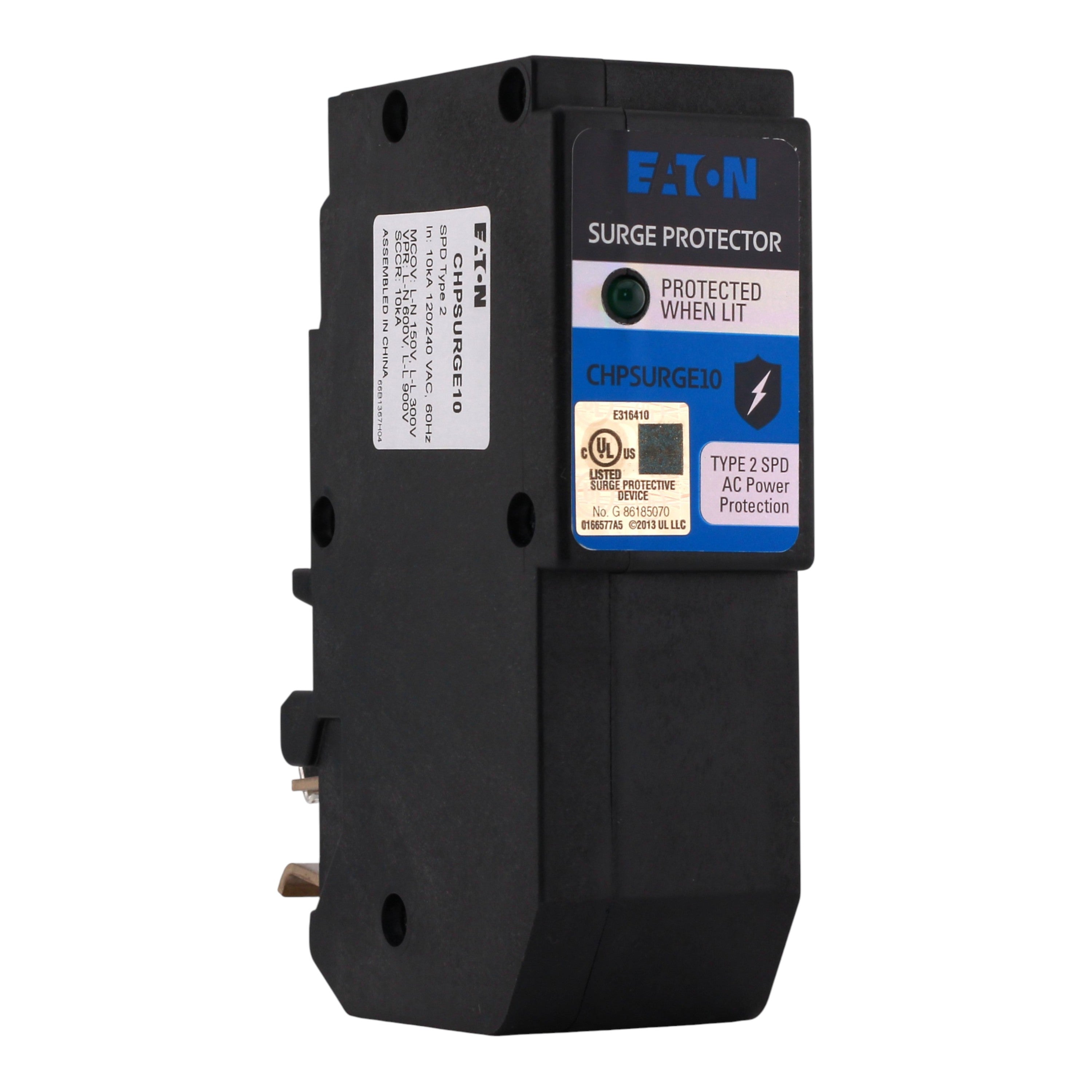

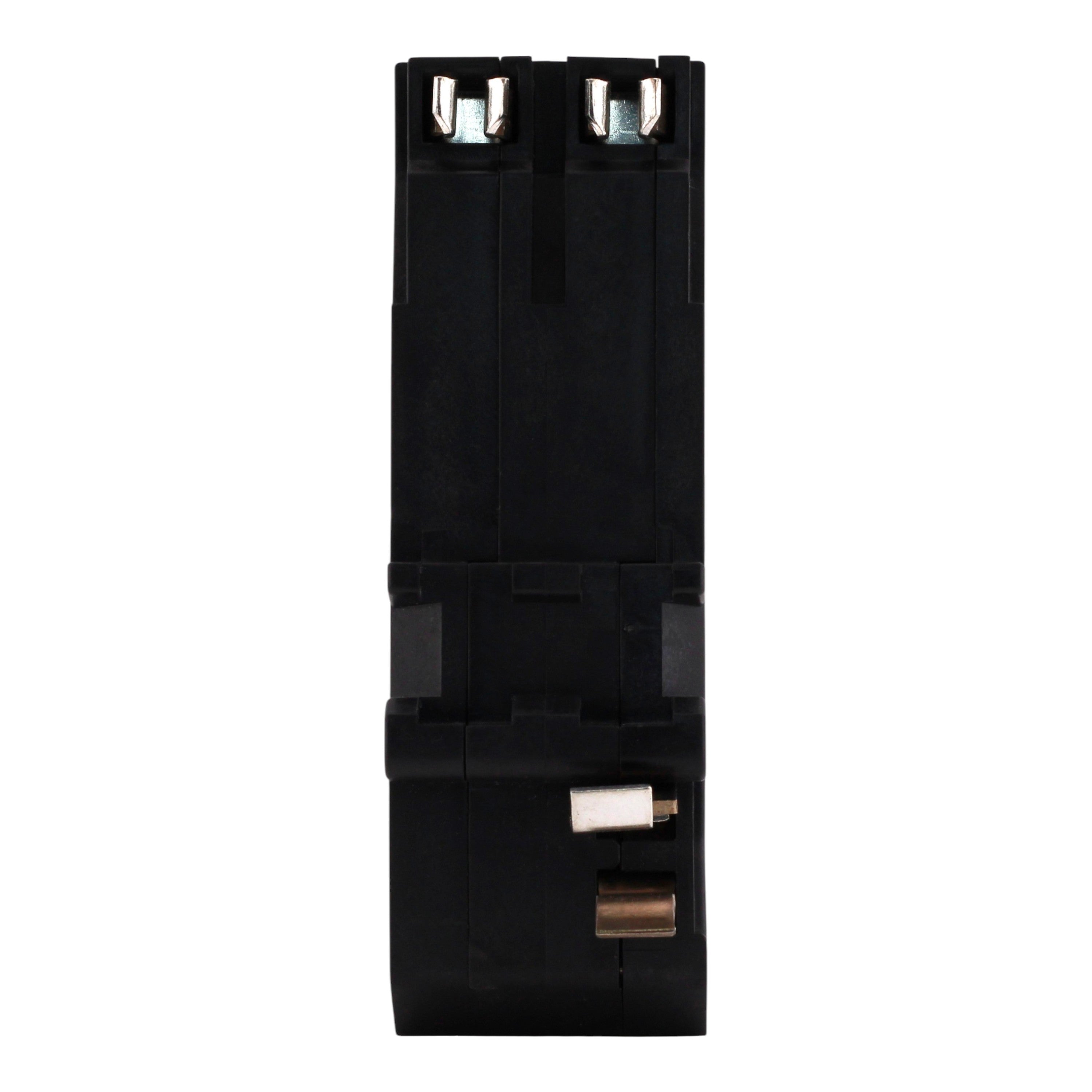

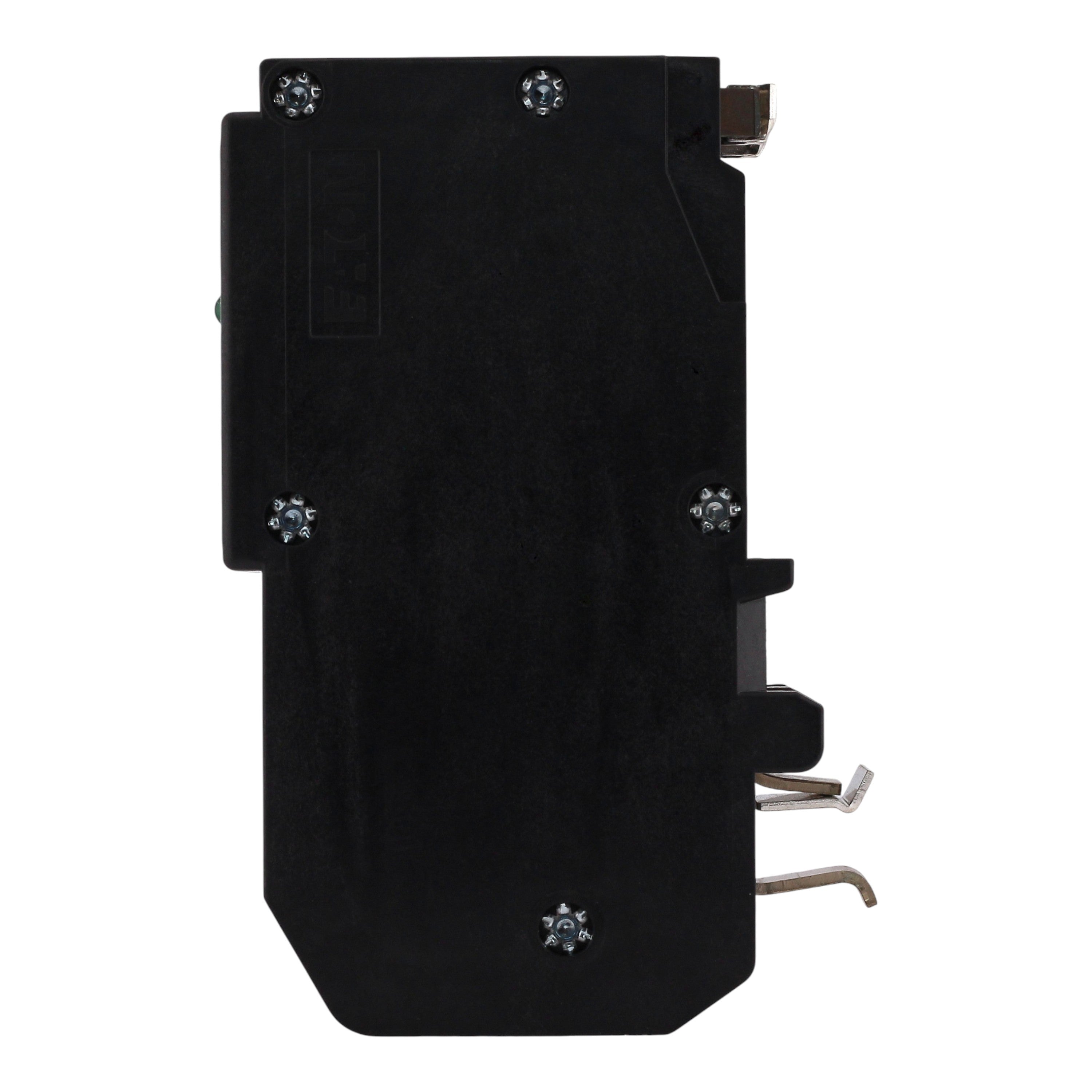

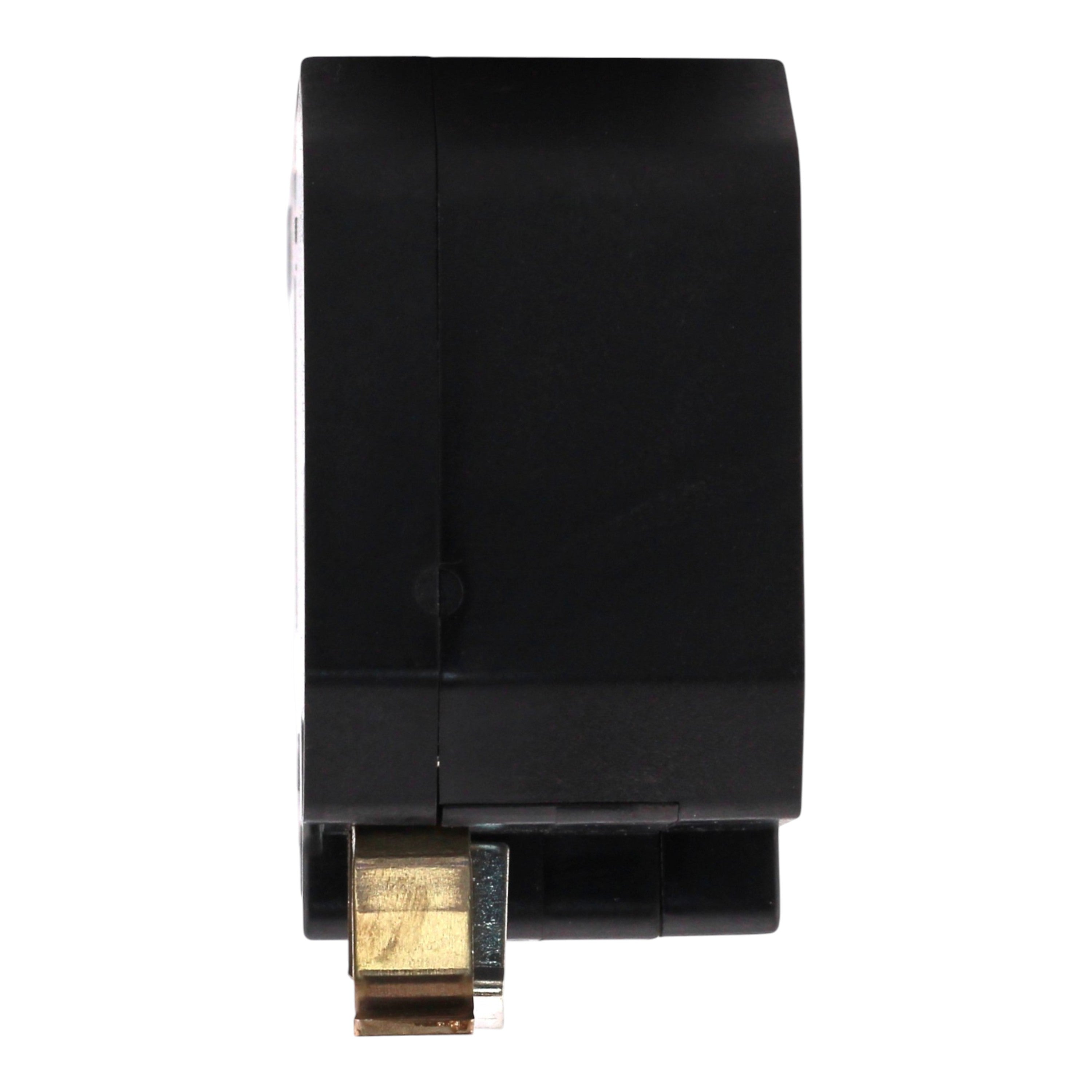

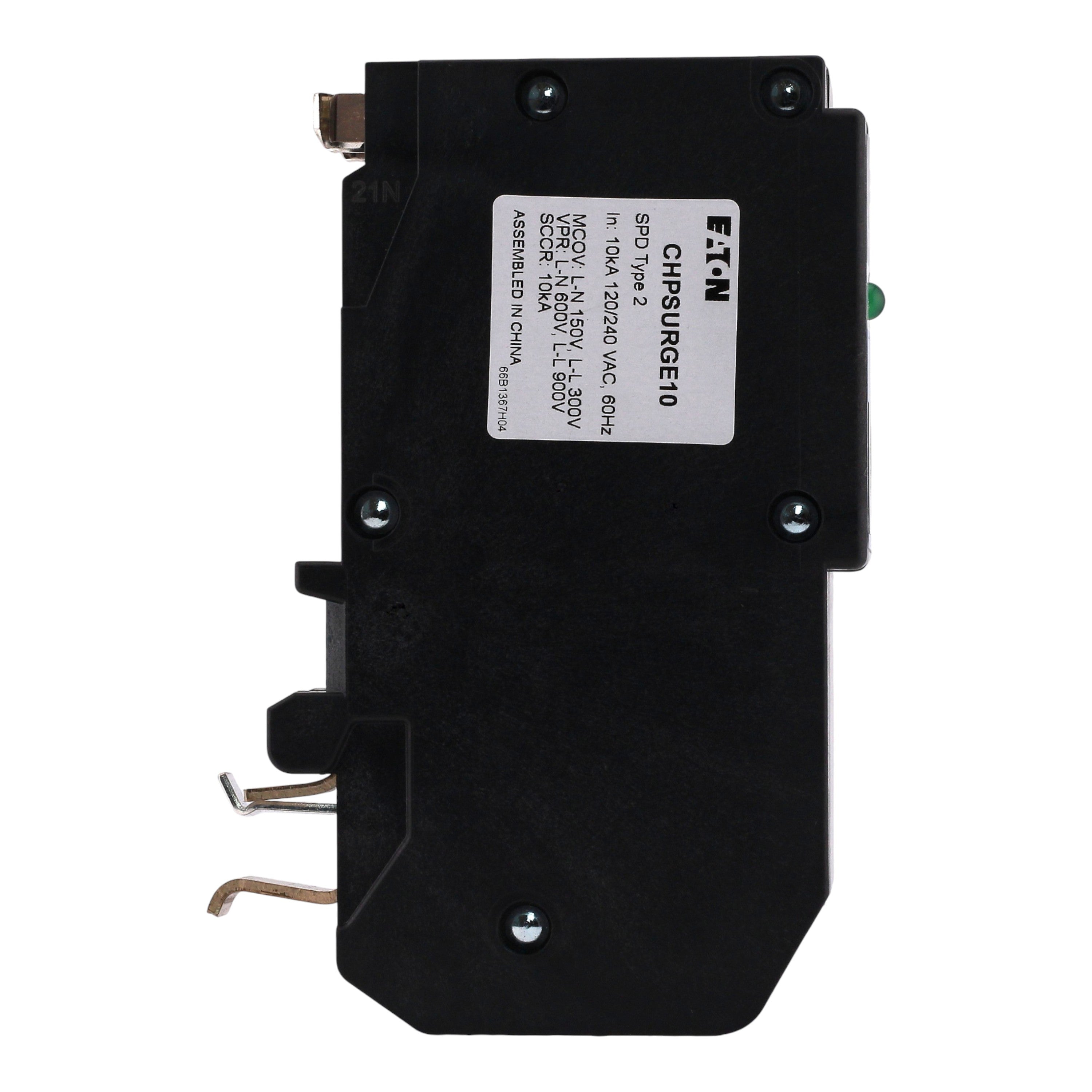

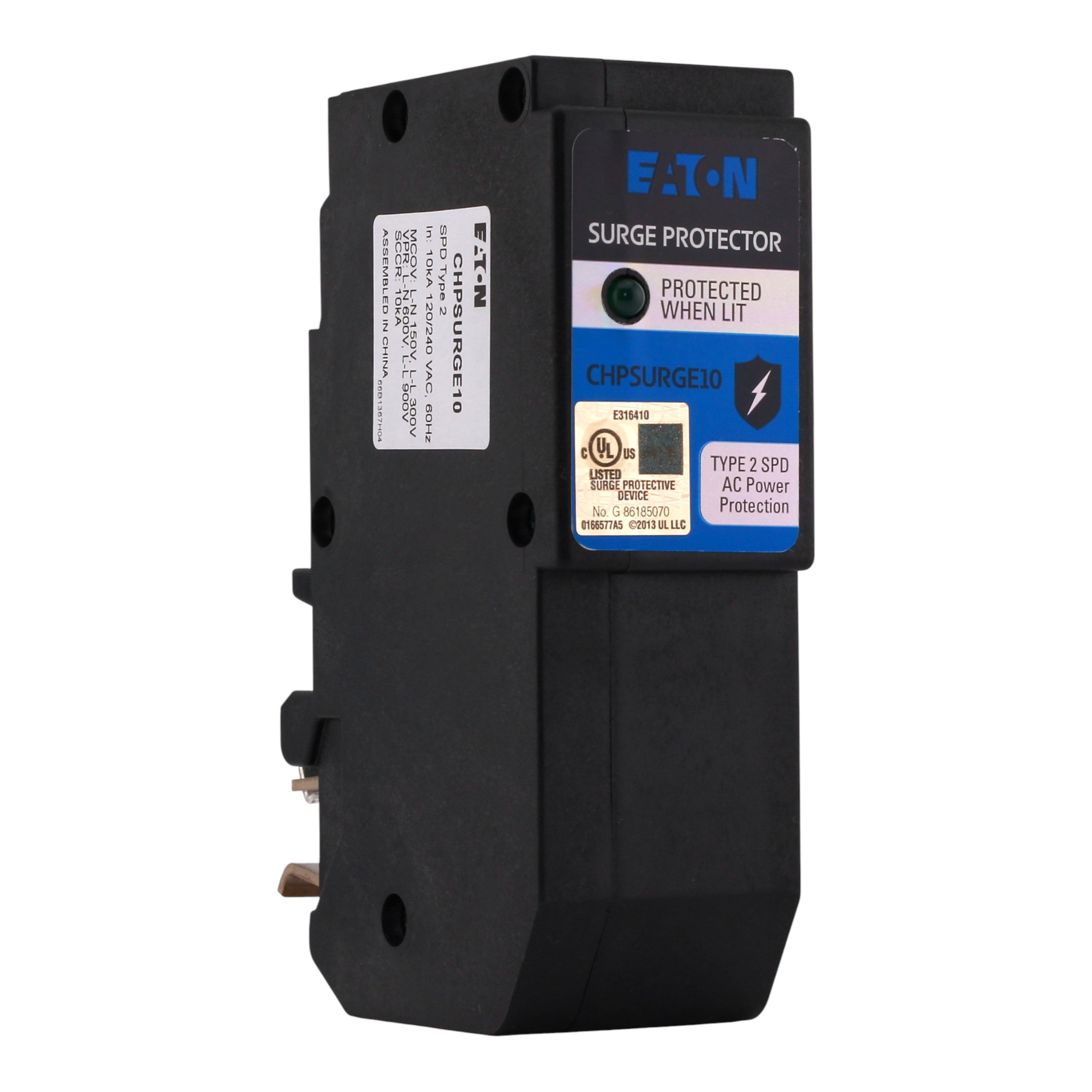

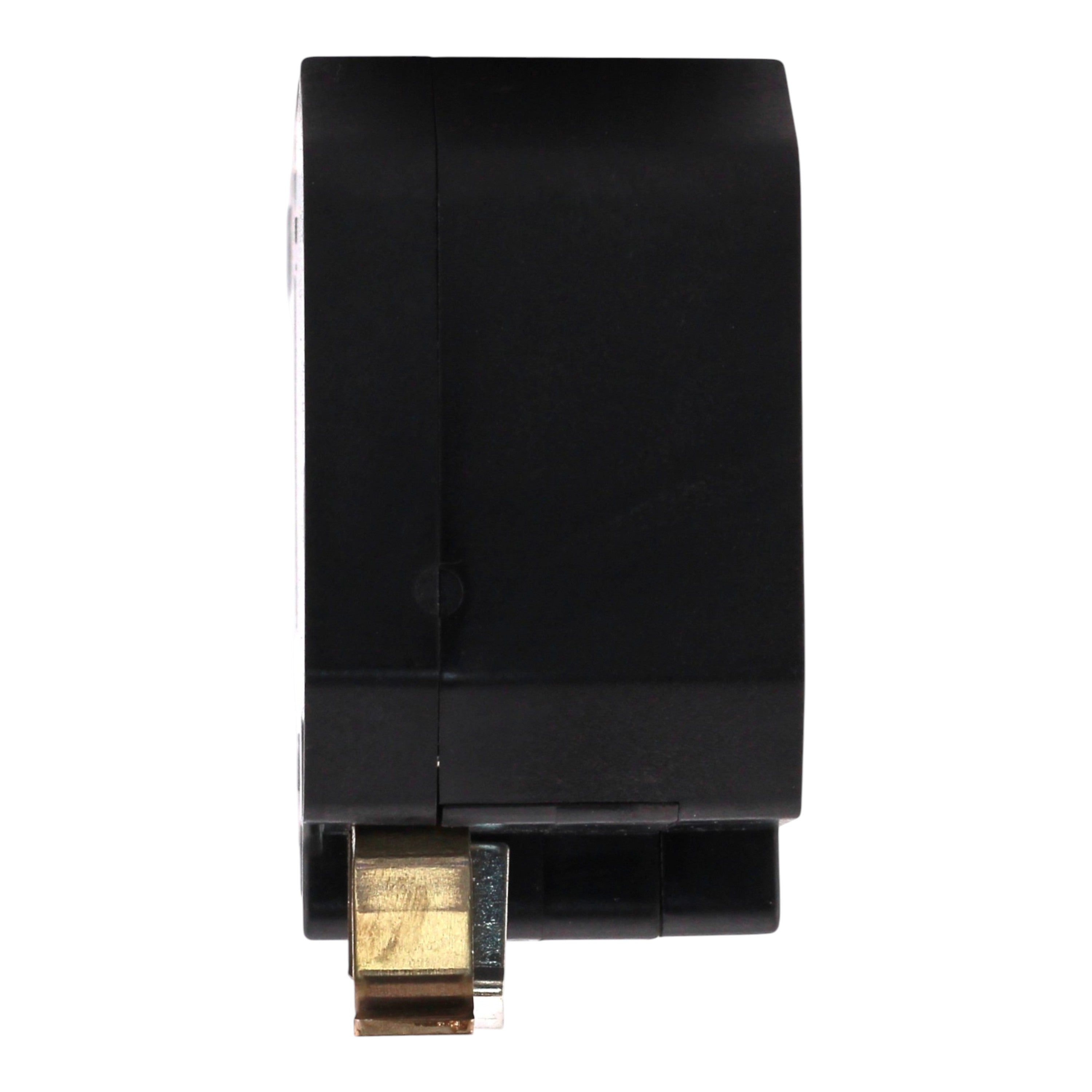

Eaton CHPSURGE10 type CH plug on module surge protection device 10 kA In two pole

Product Description

The Eaton CHPSURGE10 is a Type CH plug-on module surge protection device. This two-pole device offers a 10 kA nominal discharge current and 20 kA surge current capacity, providing robust protection for sensitive electronics. Designed for Eaton CH loadcenters, it features true plug-on neutral installation and L-N, L-L protection modes. It is UL 1449 certified, suitable for residential 120/240V systems, safeguarding against damaging power surges.

• Two-pole plug-on module surge protection device for Eaton CH loadcenters.
• Features 10 kA nominal discharge and 20 kA surge current capacity.
• Provides L-N and L-L protection for 120/240V residential systems, UL 1449 certified.

Product Highlights

Safeguards sensitive electronics and appliances from damaging power surges in residential 120/240V systems.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CHPSURGE10

Technical Specifications

• Manufacturer: Eaton
• Brand: Eaton
• Model Number: CHPSURGE10
• UPC: 786689885434
• Product Type: Plug on module surge protection device
• Type: Type CH
• Number of Poles: 2
• Frequency Rating: 50/60 Hz
• Interrupt Rating: 10 kAIC
• Nominal Discharge Current: 10 kA
• Surge Current Capacity: 20 kA
• Maximum Continuous Operating Voltage (MCOV): 150 V L-N, 300 V L-L
• Short Circuit Current Rating (SCCR): 10 kA
• Mounting Type: Plug-on neutral (PON)
• Voltage: 120/240V AC
• Product Range: CH (for Eaton CH loadcenters and equipment)
• Certifications: UL 1449
• Smart Home Compatibility: Not Smart Home Compatible
