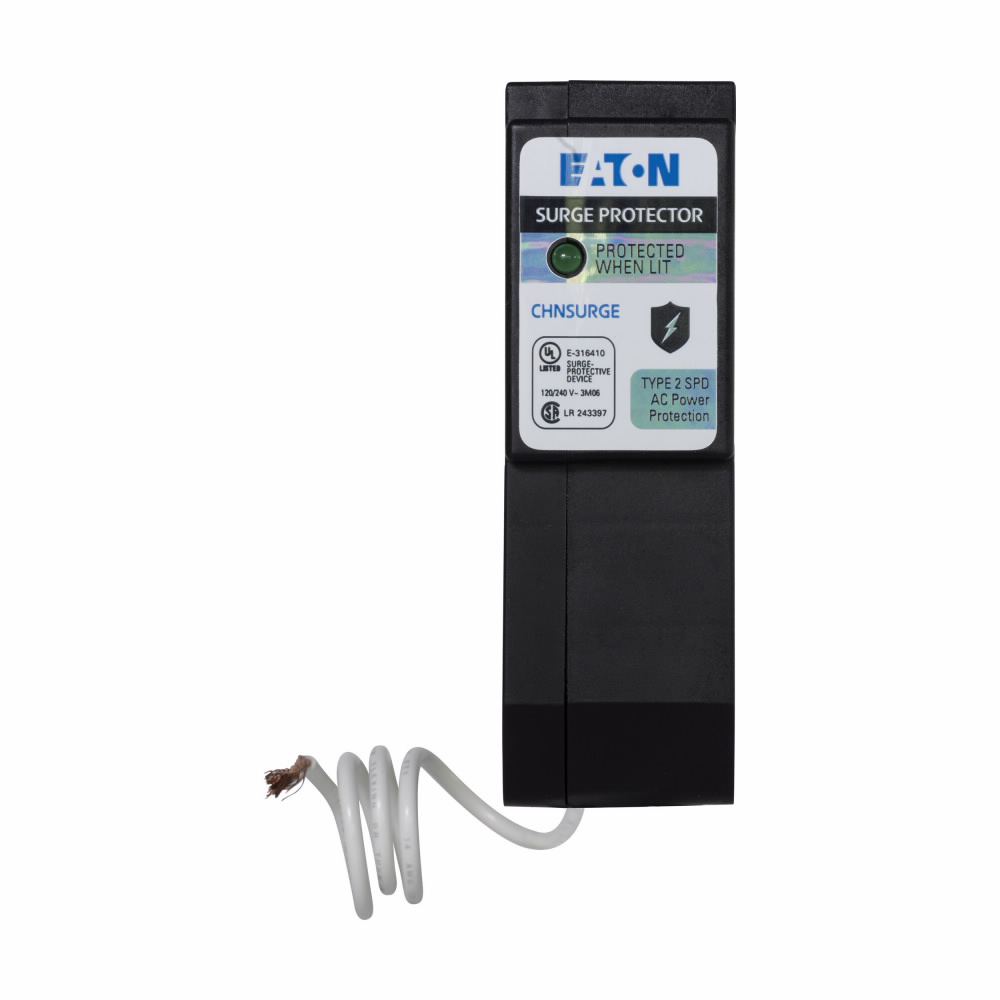

Eaton CHNSURGE Type CH 2 Pole Surge A

Product Description

Eaton CHNSURGE is a two-pole surge protective device designed to protect sensitive electronics from power surges. This device is ideal for various applications, including residential buildings and commercial settings. It helps safeguard appliances, computers, and entertainment systems from damage caused by electrical surges.

• Surge protective device with two poles
• Rated for 50/60 Hz frequency
• Short circuit current rating of ten kA

Product Highlights

Designed to manage and reduce the risk of damage caused by electrical surges, Eaton CHNSURGE provides essential protection for household and commercial electronics from unexpected power spikes.

Product Information

Standard Information

• Manufacturer: Eaton
• Catalog Number: CHNSURGE

Technical Specifications

• Height: 2.4 inches
• Length: 3.5 inches
• Weight: 0.45 lbs
• Frequency Rating: 50/60 Hz
• Clamping Voltage: 600 V
• Nominal Discharge Current: 3 kA
• Short Circuit Current Rating: 10 kA
• Modes of Protection: 150 V L-N / 300 V L-L
