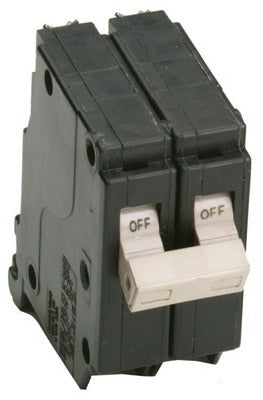

Eaton CHF250CS 50A Double Pole Circuit Breaker

Product Description

The Eaton CHF250CS is a 50-amp double pole circuit breaker designed for residential and light commercial panelboard applications. Each pole measures 0.75 inches wide for a total breaker width of 1.5 inches, making it compatible with standard tandem-style panel slots. The breaker ships in clamshell retail packaging and includes a trip flag indicator that provides a clear visual signal when the breaker has tripped. Licensed electricians and panel service technicians install this type of breaker during new construction, panel upgrades, and branch circuit replacements.

This double pole breaker is suited for 240-volt branch circuits commonly found in residential panels serving appliances, HVAC equipment, water heaters, and sub-panels. The CHF250CS fits the Cutler-Hammer CHF breaker line and is designed for use in compatible load centers. Its trip flag indicator allows for fast fault identification during service calls without requiring a meter to confirm trip status.

Key Features

• 50-amp double pole configuration for 240-volt branch circuits
• 0.75 inches per pole, 1.5 inches total width for standard panel fitment
• Trip flag indicator provides visual confirmation of tripped state
• Clamshell retail packaging protects the unit and simplifies storage
• Package quantity of 3 units per order

Compatibility

Designed as an OEM-style replacement for residential and light commercial panelboards accepting CHF-series double pole circuit breakers.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC guidelines. Always shut off main power to the panel before removing or installing any circuit breaker. Verify the panel is rated to accept CHF-series breakers before installation. Do not install a breaker in a panel that does not list it as an approved device.

Technical Specifications

• Amperage: 50 amps
• Poles: Double pole
• Width per Pole: 0.75 inches
• Total Width: 1.5 inches
• Weight: 2.1 pounds
• Packaging: Clamshell
• Package Quantity: 3

Standard Information

• Brand: Eaton Corporation
• Manufacturer Part Number: CHF250CS
