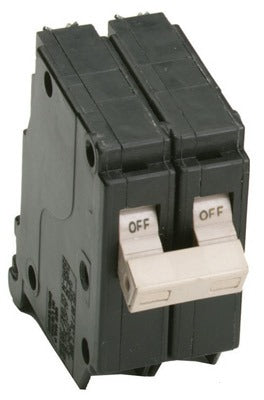

Eaton CHF230CS 30A Double Pole Circuit Breaker

Product Description

The EATON CORPORATION CHF230CS is a 30-amp double pole circuit breaker designed for residential and light commercial electrical panel applications. Each pole measures 0.75 inches wide for a total width of 1.5 inches, making it a compact fit for standard loadcenters. The breaker ships in clamshell packaging and is sold as an individual unit. Licensed electricians install this breaker to provide overcurrent protection on 240-volt branch circuits serving equipment such as water heaters, dryers, air handlers, and similar double-pole loads.

This breaker is suited for residential panelboards and loadcenters that accept CHF-series breakers. It provides standard thermal-magnetic overcurrent protection on double-pole 240-volt circuits. The clamshell retail packaging makes it convenient for field pickup or counter sale at supply houses. Installation is performed by a licensed electrician during new construction, panel upgrades, or circuit replacement service calls.

Key Features

• 30-amp double pole configuration for 240-volt branch circuit protection
• 0.75 inches per pole, 1.5 inches total panel width
• Thermal-magnetic trip mechanism for overcurrent and short-circuit protection
• Clamshell retail packaging included
• Sold as individual unit (EA unit of measure)

Compatibility

Designed as an OEM-style replacement or new-installation double pole circuit breaker for residential and light commercial loadcenters accepting CHF-series breakers.

Installation Notes

Installation must be performed by a licensed electrician in accordance with NFPA 70 (National Electrical Code) requirements. Always de-energize the panel and verify the main breaker is off before handling any breaker installation or replacement. Confirm the panelboard is rated to accept CHF-series breakers before installation. Do not install a breaker in a panel for which it is not listed or rated.

Technical Specifications

• Amperage: 30 amps
• Configuration: Double Pole
• Width Per Pole: 0.75 inches
• Total Width: 1.5 inches
• Packaging Type: Clamshell
• Weight: 2.1 pounds

Standard Information

• Brand: EATON CORPORATION
• Manufacturer Part Number: CHF230CS
