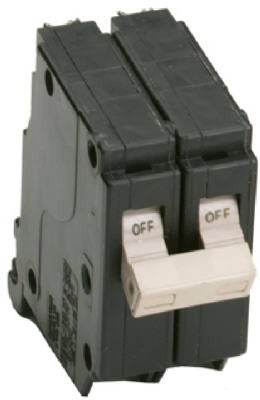

Eaton CHF230 Double Pole Circuit Breaker 30 Amp

Product Description

The Eaton CHF230 is a 30-amp double pole circuit breaker designed for residential and light commercial load centers. It occupies 2 spaces in a compatible CH-series panel and provides overcurrent and short-circuit protection for 240-volt branch circuits. The built-in trip flag indicator gives a clear visual confirmation of a tripped condition, allowing technicians to identify faulted circuits without testing each breaker individually. Electricians install this breaker during new construction, panel upgrades, or direct replacement of a failed breaker in CH-series load centers.

This breaker is suited for 240-volt residential and light commercial applications including HVAC equipment, water heaters, dryers, and other double-pole branch circuits. Its plug-on design is compatible with CH-series load centers, making it a straightforward replacement or addition during panel work. The trip flag indicator reduces diagnostic time on service calls where multiple circuits may be affected.

Key Features

• 30-amp double pole configuration for 240-volt branch circuit protection
• 2-space panel footprint fits CH-series load centers
• Built-in trip flag indicator provides immediate visual fault identification
• Plug-on design for straightforward installation and replacement
• Provides overcurrent and short-circuit protection per NEC requirements

Compatibility

Designed as an OEM-style replacement for CH-series residential and light commercial load centers accepting plug-on double pole breakers.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the panel at the utility disconnect or main breaker before removing or installing any breaker. Verify the load center is a compatible CH-series panel before installation. Do not install this breaker in panels from other manufacturer families without confirming compatibility through the manufacturer.

Technical Specifications

• Amperage: 30 amps
• Poles: 2
• Panel Spaces: 2
• Trip Indicator: Yes, visual trip flag
• Weight: 3.3 pounds
• Package Quantity: 5 per package

Standard Information

• Brand: Eaton Corporation
• Manufacturer Part Number: CHF230
