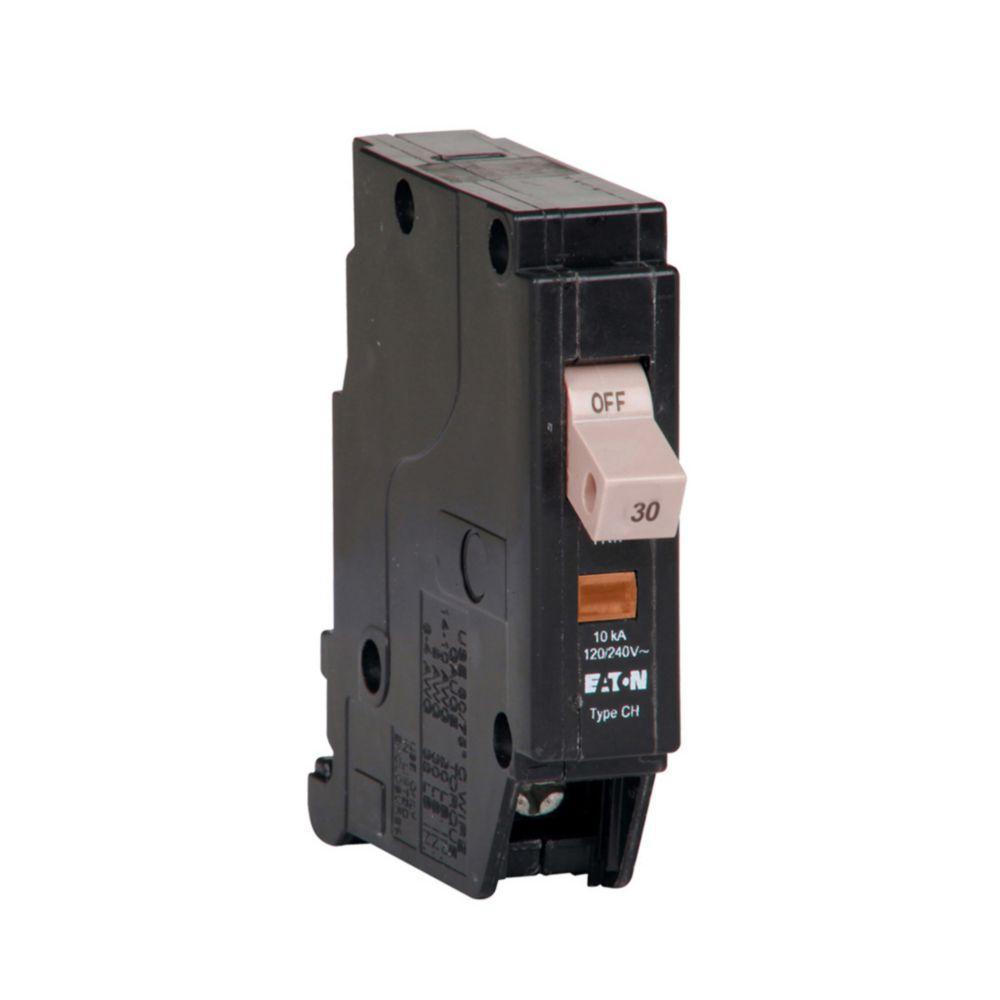

Eaton CHF130CS Standard Circuit Breaker 30A 120/240VAC

Product Description

Eaton CHF130CS is a single-pole circuit breaker offering reliable overload protection. It is designed to trip to the OFF position, minimizing unnecessary callbacks. The integrated trip flag helps identify whether the breaker has tripped or been turned off. This breaker reacts swiftly to severe short circuits while reducing accidental trips for minor overloads.

• Type CHF standard circuit breaker
• Rated for 30 amps at 120/240 VAC
• Features mechanical trip design

Product Highlights

Eaton's circuit breakers are suitable for both residential and commercial applications, offering robust performance and safety.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: Eaton

Technical Specifications

• Dimensions: 7-1/4 in L x 4-1/2 in W x 6-1/2 in H
• Mounting Type: Plug-On
• Temperature Rating: 60 to 75 deg C
• Type: Type CHF Standard
• Wire Size: 14 to 8 AWG, 14 to 10 AWG
• Voltage Rating: 120/240 VAC
• Amperage Rating: 30 A
• Interrupt Rating: 10 kA
• Number of Poles: 1
• Trip Type: Mechanical
