Product Description

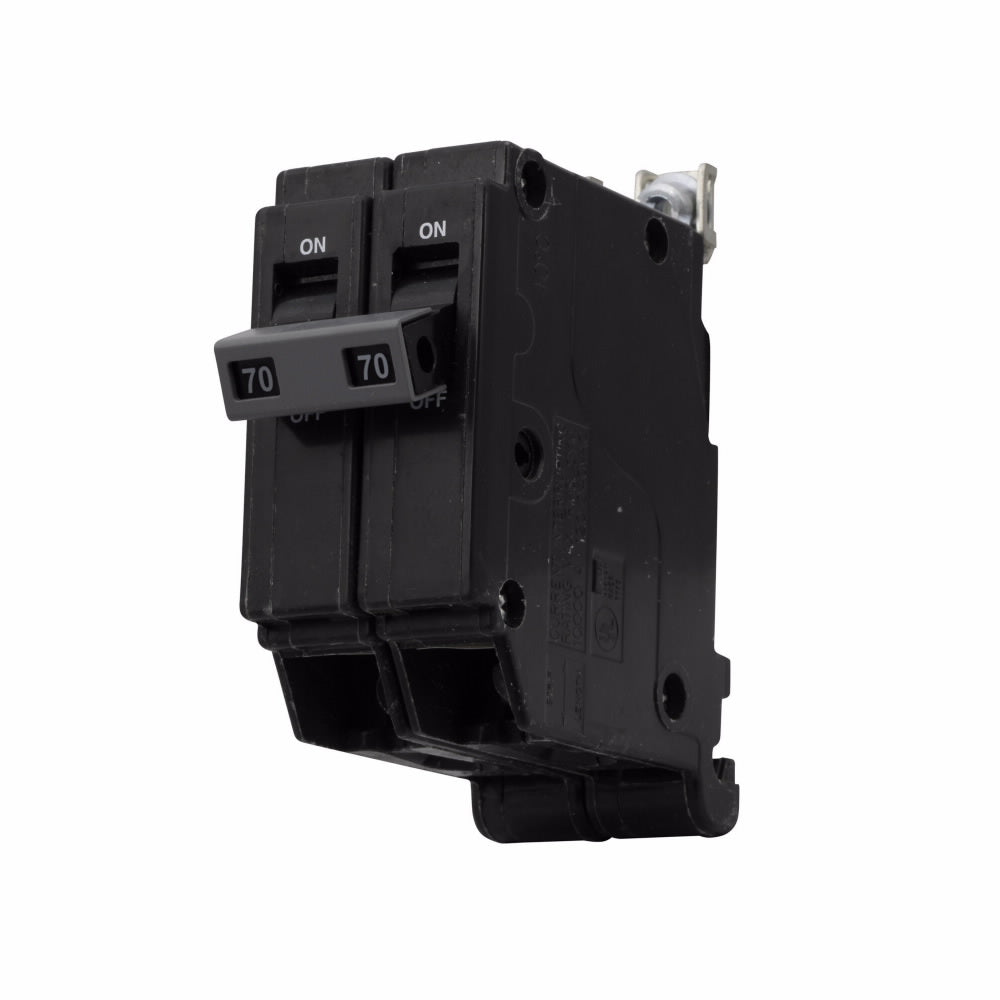

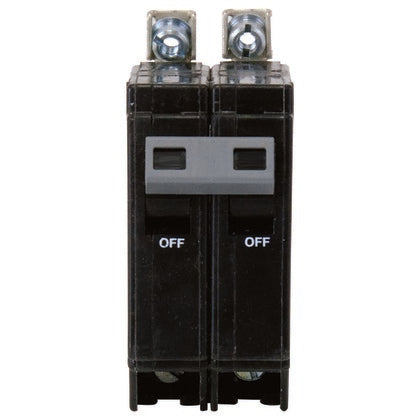

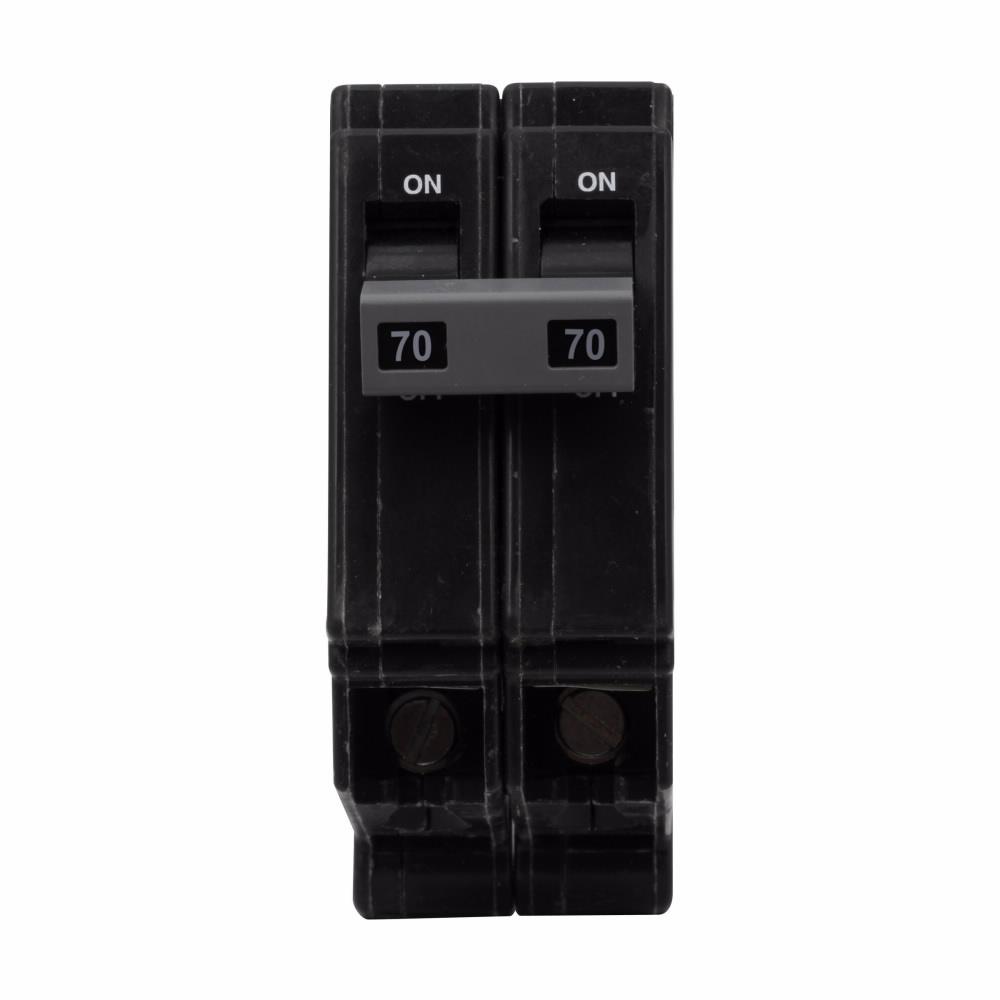

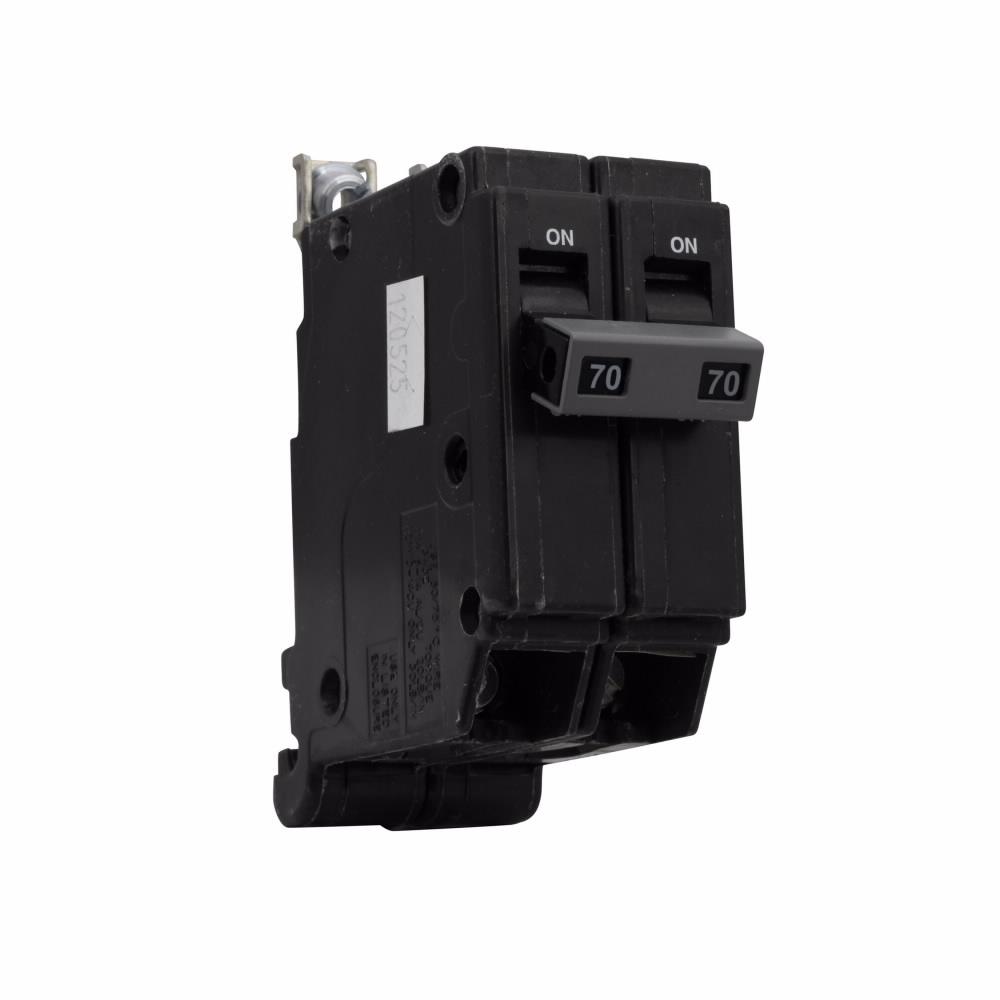

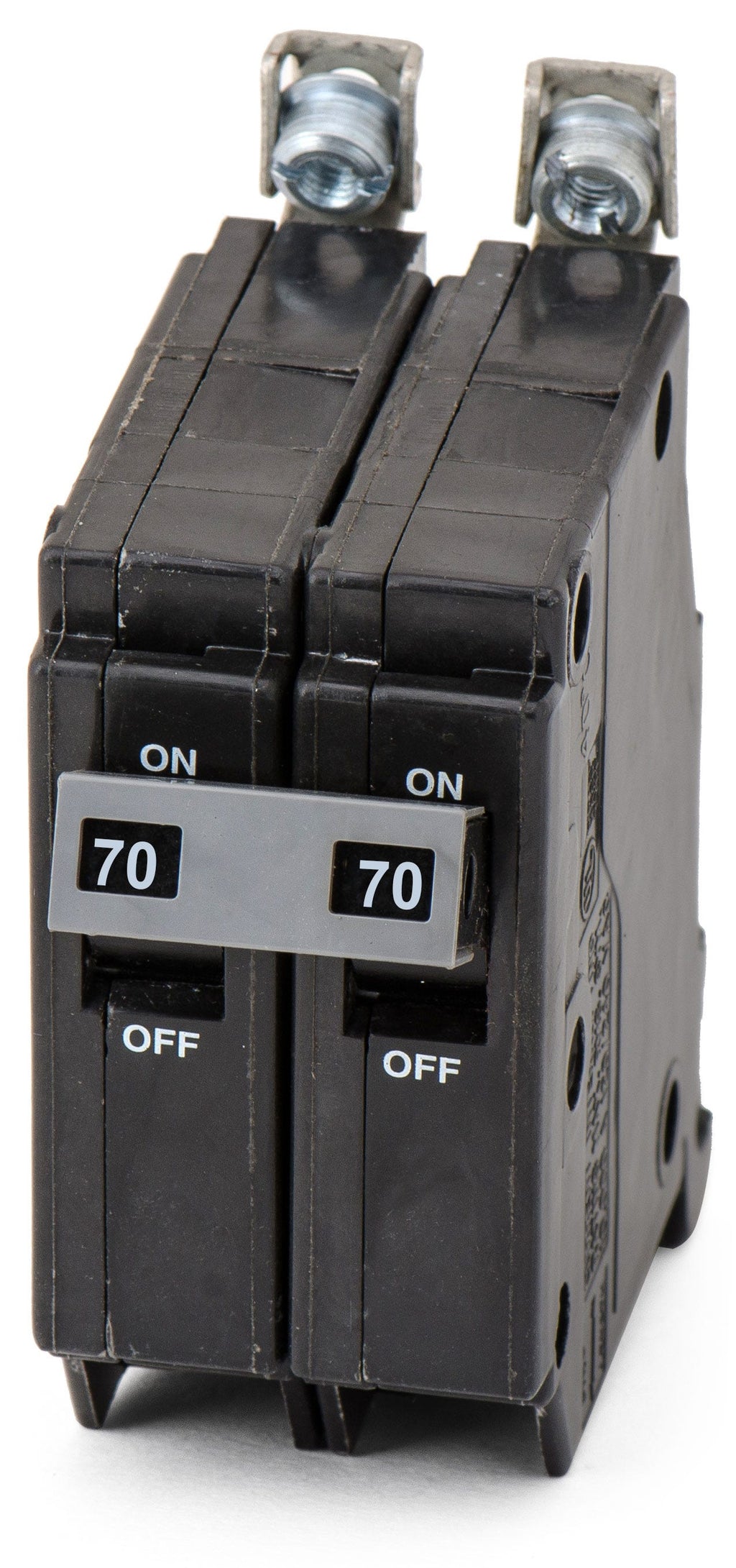

EATON's CHB270 residential CH circuit breakers provide premium overload protection. These Type CH circuit breakers trip to the OFF position. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions. Handles are marked with ON-OFF indication and ampere rating of the breaker.
- Type CHB breaker handles trip to a position between ON and off and require movement to full OFF to reset the breaker
- Contacts are sintered weld resistant silver tungsten
- Inverse time element thermal element tripping
Product Highlights
The EATON CHB270 is suitable for industrial PB Panelboards applications and is UL and CSA certified.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: CHB270
Technical Specifications
-
Actuator Type: Handle
-
Connection Type: Box Lug
-
Mounting Type: Bolted-On
-
Phase: 1 ph
-
Temperature Rating: 60 to 75 deg C
-
Type: Type CHB Standard
-
Wire Size: 8 to 2 AWG
-
Voltage Rating: 120/240 VAC
-
Amperage Rating: 70 A
-
Interrupt Rating: 10 kA
-
Number of Poles: 2
-
Trip Type: LI
-
Product Length/Depth: 3.7 in
-
Product Height: 3.2 in
-
Product Width: 2.2 in
-
Certifications: UL 489
-
Product Type: Thermal magnetic circuit breakers
-
Used with: CH Loadcenters
-
Circuit breaker type: CHB
-
Wire size: #8-2 AWG
-
Brand: Eaton
-
Series: CHB
-
Part Number: CHB270
-
Amperage: 70A
-
Voltage: 240
-
Poles: 2
-
AIC Rating: 10kA @ 120/240VAC
-
Mounting Style: Bolt-On
-
Terminal Type: Box Lugs
-
For Use With: Type PB Panelboards, Type PH Panelboards, Meter Panels, Multi-Metering Modules
-
Trip Technology: Thermal Magnetic
-
Trip Function Code: LI
-
Trip Function: Long-Time, Instantaneous
-
Trip Adjustability: Fixed
-
Wire Gauge: 8-2 AWG (Cu/Al)
-
Max Wire: 2 AWG
-
Min Wire: 8 AWG
-
Available Options: Padlock Attachment
-
Standards: CSA C22.2 No. 5, Federal Specification W-C-375b, UL 489
-
Approval: CSA, UL
-
Temp Rating: 60C to 75C
-
Construction Features: Common Trip
-
UNSPSC: 39121601
-
Includes: Contact Block Mounting Adapter
-
MPN: CHB270
-
UPC: 78211311254
-
Manufacturer: Eaton
-
Number of Positions: 2
-
Number of Gangs: 2
-
Number of Throws: 1
-
Maximum Amperage: 70
-
Application: Industrial
-
Operation Method: On/Off
-
Material: Nylon
-
Suitable For: Interior
-
Model: CHB270
